What Is a Fiber Optic Cleaver?
A fiber optic cleaver is a precision cutting tool that produces a flat, perpendicular end-face on an optical fiber. A perfect cleave is the single most important factor in achieving a low-loss fusion splice – even the best fusion splicer cannot compensate for a poor cleave.
The cleaving process works by first scribing a small nick on the fiber surface using a hardened blade, then applying controlled tension to propagate a clean fracture across the fiber cross-section. The result is a mirror-flat end-face with a cleave angle of less than 0.5° – the standard required for low-loss fusion splicing.
Why a Good Cleave Matters
The quality of a fusion splice is directly determined by the quality of the cleave. A poor cleave – with a high cleave angle, lip, or hackle – will result in:
- High splice loss – Misaligned fiber cores due to angled end-faces
- Splice failures – The fusion splicer may reject the splice and prompt for re-cleaving
- Weak splice points – Poor cleaves can create mechanical weak points in the fiber
- Wasted time – Re-cleaving and re-splicing reduces productivity
Investing in a high-quality fiber cleaver is one of the best decisions a fiber optic technician can make.
Key Fiber Cleaver Specifications
- Cleave Angle – The angle of the cleaved end-face relative to perpendicular. <0.5° is required for low-loss fusion splicing; <0.3° is excellent.
- Blade Life (Cleave Capacity) – The number of cleaves the blade can perform before replacement. Typically 16,000–48,000 cleaves per blade position.
- Fiber Compatibility – SM, MM, DS, NZ-DS, and specialty fibers.
- Cleave Length – The length of bare fiber after cleaving, typically 8–16mm depending on the splicer.
Top Fiber Cleavers Compared
Fujikura CT16 – High Precision AFL Fiber Cleaver
The Fujikura CT16 (AFL S018330) is a professional-grade, high-precision fiber cleaver from Fujikura, engineered for consistent, flat cleave ends that minimize splice loss. Compatible with all standard fusion splicers, the CT16 is a reliable upgrade path from the CT08 and a trusted tool for FTTH and telecom fiber splicing professionals worldwide.
- ✅ High precision blade for consistent cleave angles <0.5°
- ✅ Upgrade path from Fujikura CT08
- ✅ Compatible with all standard fusion splicers
- ✅ Automatic fiber waste collection
- ✅ Supports SM, MM, DS, and NZ-DS fiber

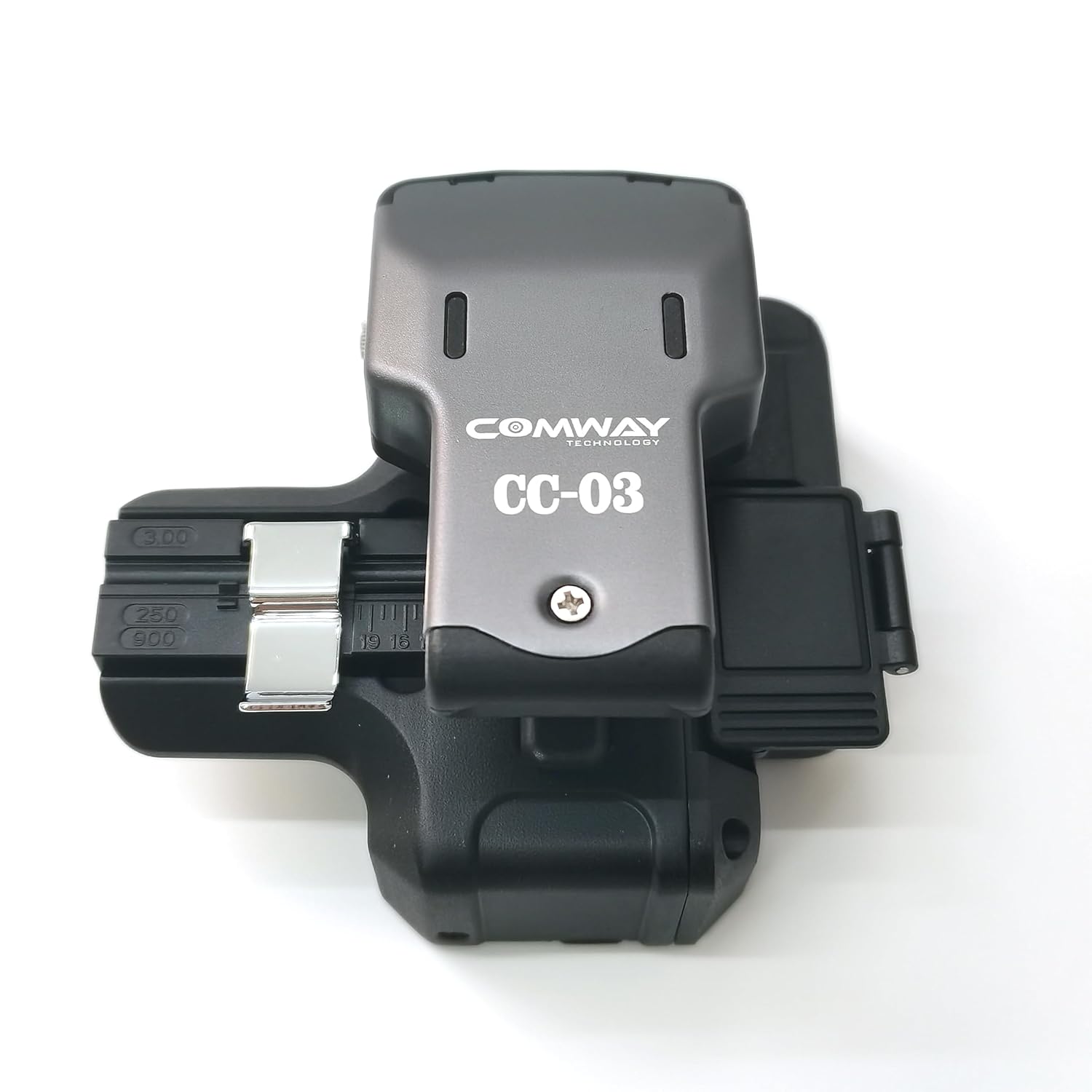

COMWAY CC-03 – One-Step High Precision Fiber Cleaver
The COMWAY CC-03 is an innovative one-step fiber cleaver that simplifies the cleaving process into a single, smooth action. Designed for FTTH installers and fiber optic technicians who need fast, consistent cleave quality in the field, the CC-03 delivers high-precision cleave ends with minimal operator effort.
- ✅ One-step cleaving operation for maximum speed
- ✅ High precision blade for consistent cleave quality
- ✅ Built-in fiber waste collector
- ✅ Compact and portable for field use
- ✅ Compatible with all standard fiber types and fusion splicers
Sumitomo FC-6 & FC-6+ – Precision Cleaver for Sumitomo Splicers
The Sumitomo FC-6 and FC-6+ are high-precision fiber cleavers designed for use with Sumitomo fusion splicers (TYPE-Q102, TYPE-39, TYPE-66, TYPE-81C, TYPE-600C). They deliver consistent, flat cleave ends for reliable low-loss splicing in FTTH and telecom applications.
- ✅ High precision blade for consistent cleave quality
- ✅ Compatible with Sumitomo TYPE-Q102, TYPE-39, TYPE-66, TYPE-81C, TYPE-600C
- ✅ Automatic fiber waste collection
- ✅ Supports SM, MM, DS, and NZ-DS fiber
TEKCN TC-30 – Best Value FTTH Fiber Cleaver
The TEKCN TC-30 is the best-value fiber cleaver for FTTH installers and contractors who need reliable, consistent cleave quality at an affordable price. With a large cleave capacity and intuitive one-hand operation, the TC-30 is a popular choice for high-volume FTTH drop cable splicing.
- ✅ High precision blade for consistent cleave quality
- ✅ Easy one-hand operation
- ✅ Built-in fiber waste collector
- ✅ Affordable price for FTTH contractors
How to Cleave Fiber Correctly: Step-by-Step
- Strip the fiber – Remove the coating using a fiber stripper to expose 30–40mm of bare fiber.
- Clean the fiber – Wipe the bare fiber with an IPA-soaked lint-free wipe to remove all coating residue and contamination.
- Set the cleave length – Position the fiber in the cleaver so the correct length of bare fiber will remain after cleaving (typically 8–16mm depending on your splicer).
- Cleave the fiber – Close the cleaver lid and press the cleave button or lever. The blade scribes the fiber and the tension mechanism propagates the cleave.
- Inspect the cleave – Check the cleaved end-face under the splicer’s camera. The end-face should be flat, clean, and free of chips, lips, or hackle.
- Load into the splicer – Immediately load the cleaved fiber into the fusion splicer’s V-groove without touching the cleaved end-face.
Fiber Cleaver Maintenance Tips
- Keep the cleaver clean – Regularly clean the V-grooves and blade area with a lint-free wipe and IPA to prevent fiber debris from affecting cleave quality.
- Advance the blade regularly – Most cleavers have multiple blade positions. Advance to the next position when cleave quality deteriorates.
- Replace the blade when needed – A worn blade produces poor cleave angles and should be replaced promptly.
- Store properly – Always close the cleaver lid when not in use to protect the blade and V-grooves from dust and damage.
Frequently Asked Questions
What cleave angle is acceptable for fusion splicing?
Most fusion splicers require a cleave angle of <0.5° for single-mode fiber. Premium splicers like the Fujikura FSM-90S+ may require <0.3° for optimal splice loss.
How many cleaves can I get from a fiber cleaver blade?
A typical fiber cleaver blade has 16 positions, each capable of approximately 3,000 cleaves, giving a total blade life of around 48,000 cleaves.
Can I use any fiber cleaver with any fusion splicer?
Yes – any fiber cleaver that produces a flat, low-angle cleave end can be used with any fusion splicer. However, some splicers are optimized for use with their own brand cleavers for the best results.
Conclusion
A high-quality fiber cleaver is as important as the fusion splicer itself. Whether you choose the professional Fujikura CT16, the innovative one-step COMWAY CC-03, or the cost-effective TEKCN TC-30, investing in the right cleaver will dramatically improve your splice quality and productivity.
