Fiber Optic Connector Cleaning: Why It Matters and How to Do It Right

Why Fiber Optic Connector Cleaning Is Critical

Dirty fiber optic connectors are the #1 cause of fiber optic network failures. A single dust particle or oil smear on a connector end-face can cause insertion loss of 1 dB or more – enough to bring down a fiber link that was perfectly installed. In high-speed networks (10G, 40G, 100G), even a small amount of contamination can cause bit errors, packet loss, and complete link failure.

The good news is that connector contamination is entirely preventable with proper cleaning procedures and the right cleaning tools. This guide explains everything you need to know about fiber optic connector cleaning for FTTH, telecom, and enterprise fiber networks.

Types of Fiber Optic Connector Contamination

There are four main types of connector contamination:

• Dust and particulates – Airborne dust that settles on unprotected connector end-faces. The most common type of contamination.
• Oil and fingerprints – Skin oils transferred to the end-face by touching. Even a brief touch can contaminate a connector.
• Cleaning residue – Residue left by improper cleaning with dirty wipes or contaminated IPA.
• Epoxy and polish residue – Residue from connector termination that was not properly cleaned.

The Golden Rules of Fiber Optic Connector Cleaning

1. Always inspect before cleaning – Use a fiber inspection probe to check the end-face before cleaning. This tells you what type of contamination you are dealing with.
2. Always clean before mating – Never mate two connectors without cleaning both end-faces first.
3. Always inspect after cleaning – Verify that the end-face is clean before mating. If still dirty, clean again.
4. Never touch the end-face – Always handle connectors by the body, never by the ferrule tip.
5. Always cap unused connectors – Use dust caps to protect connector end-faces when not in use.

Best Fiber Optic Cleaning Tools

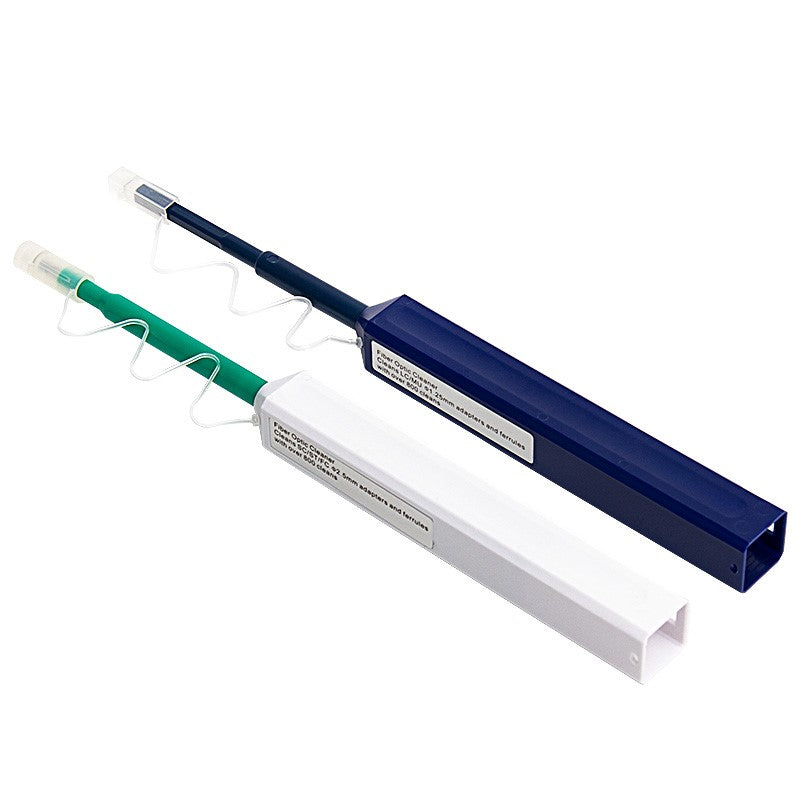

One-Click Fiber Optic Cleaners

One-click cleaners (also called push-type cleaners or pen cleaners) are the fastest and most effective way to clean fiber optic connectors in the field. A single push of the cleaner tip across the connector end-face removes all contamination in one action, using a fresh section of cleaning tape for each use.

• 2.5mm One-Click Cleaner – For SC, FC, and ST connectors (2.5mm ferrule diameter). Each cleaner provides 500+ cleaning cycles.
• 1.5mm One-Click Cleaner – For LC and MU connectors (1.25mm ferrule diameter). Essential for high-density patch panels and SFP transceivers.

Fiber Optic Cleaning Wipes and IPA

Lint-free cleaning wipes moistened with 99% isopropyl alcohol (IPA) are used for cleaning bare fiber before cleaving and splicing, and for cleaning connector end-faces when a one-click cleaner is not available. Always use lint-free wipes – never use paper towels or regular tissues, which leave fibers on the end-face.

Fiber Optic Cleaning Kits

For technicians who need a complete cleaning solution, a fiber optic cleaning kit includes one-click cleaners for multiple connector types, IPA wipes, dust caps, and a carrying case.

How to Clean Fiber Optic Connectors: Step-by-Step

Method 1: One-Click Cleaner (Recommended for Field Use)

1. Remove the dust cap from the connector.
2. Insert the one-click cleaner tip into the connector adapter or directly onto the connector ferrule.
3. Press the cleaner body firmly until you hear a click – this advances the cleaning tape and wipes the end-face in a single action.
4. Inspect the end-face with a fiber inspection probe to verify it is clean.
5. If still dirty, repeat the cleaning process (maximum 2–3 times).
6. Mate the connector immediately after cleaning to prevent re-contamination.

Method 2: Wet-Dry Cleaning (For Stubborn Contamination)

1. Moisten a lint-free wipe with 99% IPA.
2. Wipe the connector end-face with the moistened wipe in a single stroke.
3. Immediately follow with a dry lint-free wipe to remove any IPA residue.
4. Inspect the end-face to verify it is clean.

Connector Cleaning for Different Connector Types

• SC connectors – Use a 2.5mm one-click cleaner. SC connectors are the most common connector type in FTTH networks.
• LC connectors – Use a 1.5mm one-click cleaner. LC connectors are standard in SFP transceivers and high-density patch panels.
• FC connectors – Use a 2.5mm one-click cleaner. FC connectors are common in OTDR ports and test equipment.
• ST connectors – Use a 2.5mm one-click cleaner. ST connectors are found in older enterprise fiber installations.

Frequently Asked Questions

How often should I clean fiber optic connectors?

Clean every connector every time before mating. Even a connector that was just cleaned and capped should be cleaned again before mating, as dust can settle on the end-face during handling.

Can I use regular isopropyl alcohol for fiber cleaning?

Only use 99% pure IPA (isopropyl alcohol) for fiber optic cleaning. Lower concentrations (70%, 91%) contain water that can leave residue on the end-face. Never use acetone, methanol, or other solvents.

How many times can I use a one-click cleaner?

Most one-click cleaners provide 500+ cleaning cycles before the cleaning tape is exhausted. The cleaner will stop advancing when the tape is used up.

Conclusion

Proper fiber optic connector cleaning is the simplest and most cost-effective way to prevent fiber network failures. By following the cleaning procedures in this guide and using quality cleaning tools like one-click cleaners, you can eliminate connector contamination as a source of network problems and ensure your fiber links perform reliably for years to come.
