How to Test Fiber Optic Cables: A Complete Field Testing Guide

Why Fiber Optic Testing Matters

Proper fiber optic cable testing is essential for ensuring that every fiber link in your network meets its design specifications before it goes live. Untested or poorly tested fiber links can cause intermittent outages, slow network performance, and costly troubleshooting calls after deployment.

Whether you are installing a new FTTH (Fiber to the Home) network, upgrading a telecom backbone, or maintaining an enterprise fiber LAN, a systematic testing approach using the right instruments will save time, money, and frustration.

Essential Fiber Optic Test Instruments

Every fiber optic technician needs three core test instruments:

1. Optical Power Meter

An optical power meter measures the optical power level at the end of a fiber link in dBm or mW. Used together with a light source, it measures the total insertion loss of a fiber link – the most fundamental fiber optic measurement.

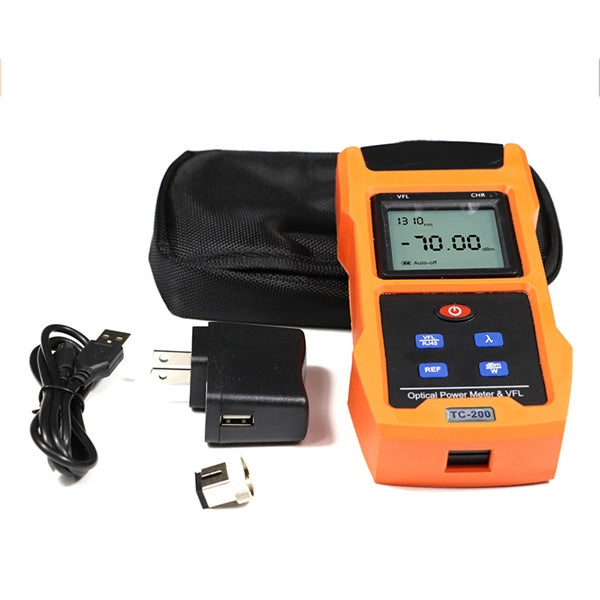

Recommended: TEKCN TC-200 Optical Power Meter & VFL – a 2-in-1 device combining power meter and visual fault locator for maximum field efficiency.

2. Visual Fault Locator (VFL)

A visual fault locator (VFL) is a pen-type device that injects a visible red laser (650nm) into the fiber. Fiber breaks, bad splices, tight bends, and faulty connectors glow red, making them instantly visible to the naked eye. VFLs are available in 5mW, 10mW, and 20mW output powers for different detection ranges.

Recommended: TEKCN TC-321 10mW VFL – powerful 10mW output for fault detection up to 10km.

3. OTDR (Optical Time-Domain Reflectometer)

An OTDR provides a detailed loss profile of the entire fiber link, showing the location and loss of every splice, connector, bend, and fault. It is the most powerful fiber optic test instrument and is essential for fiber link certification and fault location.

Recommended: HSV-110D Portable Multi-Function OTDR – versatile all-in-one OTDR for FTTH and telecom field testing.

Step-by-Step Fiber Optic Testing Procedure

Step 1: Visual Inspection

Before connecting any fiber, always inspect the connector end-faces using a fiber inspection probe or microscope. Contaminated connectors are the #1 cause of fiber link failures. Clean any dirty connectors using a one-click fiber cleaner before testing.

Step 2: Visual Fault Location

Connect your VFL to one end of the fiber and visually inspect the entire fiber route for glowing red light, which indicates breaks, tight bends, or bad connectors. This quick check can identify obvious faults before proceeding to more detailed testing.

Step 3: Insertion Loss Testing (Power Meter + Light Source)

1. Connect a calibrated light source to one end of the fiber link.
2. Connect an optical power meter to the other end.
3. Record the received power level in dBm.
4. Calculate the insertion loss: Loss (dB) = Launch Power (dBm) – Received Power (dBm)
5. Compare the measured loss against the fiber link’s loss budget. If the measured loss exceeds the budget, the link fails and must be investigated.

Step 4: OTDR Testing

1. Connect an OTDR launch cable box (500m or 1000m) between the OTDR and the fiber under test to eliminate the near-end dead zone.
2. Set the OTDR wavelength (1310nm or 1550nm for SM fiber), distance range, and pulse width.
3. Run the OTDR measurement and review the trace.
4. Identify and record all events (splices, connectors, bends) and their losses.
5. Verify that all splice losses are within specification (<0.1 dB for fusion splices, <0.3 dB for connectors).
6. Save the OTDR trace for documentation and future reference.

Understanding Fiber Optic Loss Budgets

A loss budget is the maximum allowable insertion loss for a fiber link, determined by the optical power budget of the transceivers at each end. Typical loss budgets are:

• FTTH PON (GPON/XGS-PON): 28–32 dB total link loss budget
• 10GbE (10GBASE-LR): 6.3 dB maximum insertion loss
• 100GbE (100GBASE-LR4): 6.3 dB maximum insertion loss
• Telecom DWDM: Varies by system design

Common Fiber Optic Test Failures and Solutions

• High insertion loss – Check for dirty connectors, high-loss splices, tight bends, or damaged fiber. Clean connectors and re-test.
• High splice loss on OTDR – Re-cleave and re-splice the affected fiber. Ensure the fiber cleaver blade is sharp and the fiber is clean before splicing.
• Reflective event on OTDR – Indicates a connector, mechanical splice, or fiber break. Locate and repair the fault.
• Fiber break – The OTDR will show a sudden drop to the noise floor. Locate the break using the OTDR distance reading and repair by fusion splicing.

Conclusion

Systematic fiber optic testing using an optical power meter, VFL, and OTDR is the foundation of a reliable fiber optic network. By following the testing procedures outlined in this guide, you can ensure that every fiber link in your network is installed correctly and meets its performance specifications.
