An Optical Time-Domain Reflectometer (OTDR) is an essential fiber optic test instrument used to characterize, certify, and troubleshoot optical fiber cables. It works by injecting a series of light pulses into a fiber and measuring the light that is scattered or reflected back. The resulting trace — called an OTDR trace — reveals the exact location and magnitude of every event along the fiber: connectors, splices, bends, breaks, and end-of-fiber.
Unlike a simple optical power meter that only measures end-to-end loss, an OTDR gives you a full map of the fiber link, making it indispensable for installation, acceptance testing, and fault location.
Key OTDR Metrics You Need to Know
| Parameter | What It Means |
|---|---|
| Dynamic Range (dB) | Maximum fiber length the OTDR can test; higher = longer reach |
| Event Dead Zone (m) | Minimum distance after a reflective event before the next event can be detected |
| Attenuation Dead Zone (m) | Minimum distance to accurately measure loss after a reflective event |
| Sampling Points | Resolution of the trace; more points = finer detail |
| Distance Accuracy | How precisely the OTDR locates faults |
What Is a Mini OTDR?
A mini OTDR (also called a portable OTDR or handheld OTDR) is a compact, battery-powered version of a traditional bench-top OTDR. Designed for field technicians, it combines the core measurement capabilities of a full-size OTDR with:
- Rugged, handheld form factor — fits in a tool bag
- Touchscreen interface — fast, intuitive operation on-site
- Multi-function integration — built-in OPM (Optical Power Meter), VFL (Visual Fault Locator), and sometimes a light source
- Long battery life — typically 8–12+ hours for full-day field work
- Fast auto-test mode — one-button testing for non-specialist users
Mini OTDRs are the go-to choice for FTTx deployment, OSP (outside plant) maintenance, data center cabling, and emergency fault restoration.
Top 3 Mini OTDRs We Recommend

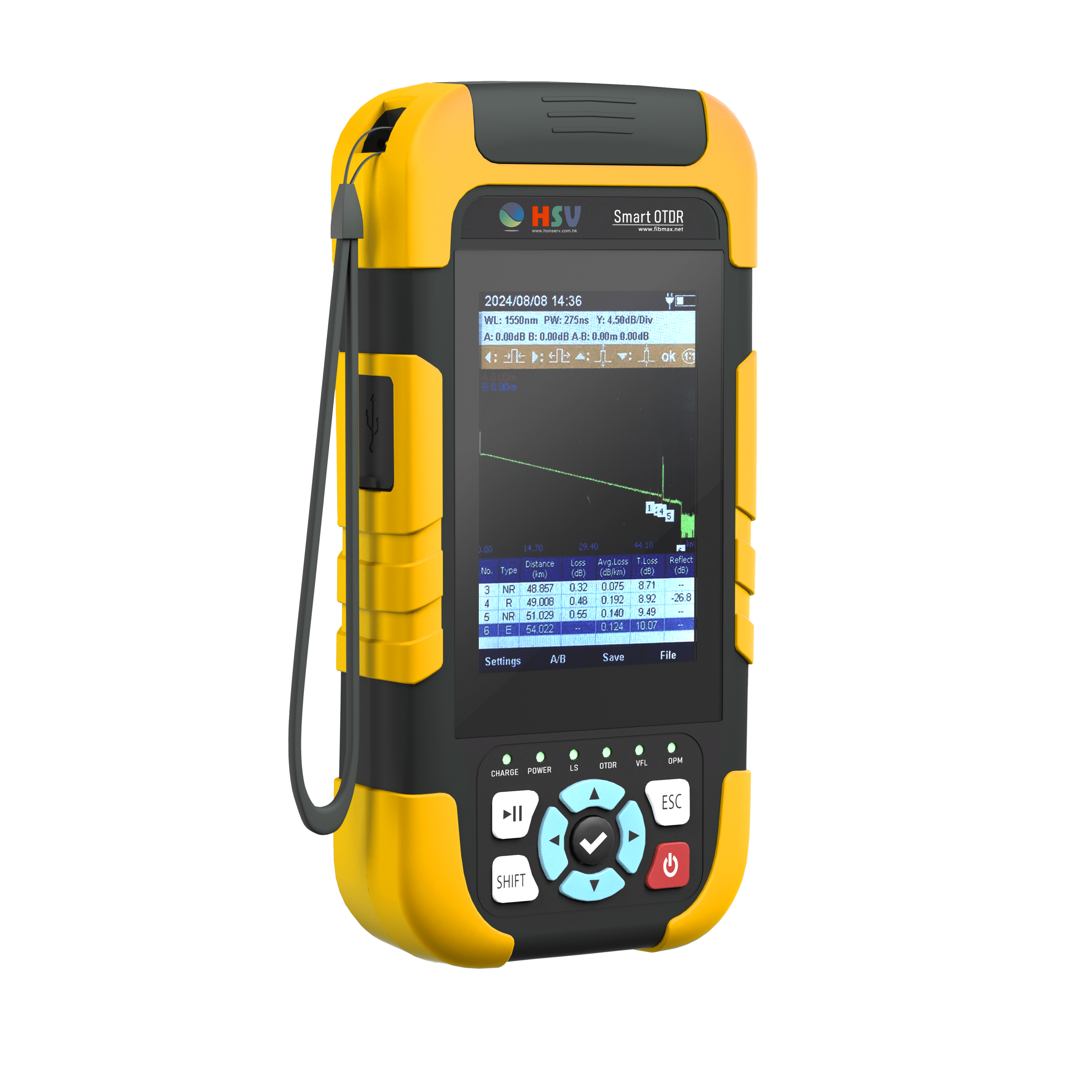

1. HSV-110D — Best All-in-One Portable OTDR for Field Crews
The HSV-110D Portable Multi-Function OTDR is engineered for field technicians who need a reliable, multi-function tester in a single compact unit.
Key Specifications:
- Wavelength: 1310 / 1550 nm (optional 1610 nm for live fiber testing)
- Dynamic Range: 24 / 22 dB
- Event Dead Zone: 2.5 m
- Attenuation Dead Zone: 8 m
- Distance Range: 100 m – 90 km
- Sampling Points: 20,000 (resolution 25 cm – 8 m)
- Loss Resolution: 0.001 dB
- Built-in OPM: 850–1650 nm, range -70 to +10 dBm, supports 270 Hz / 330 Hz / 1 kHz / 2 kHz tone ID
- Built-in VFL: 1310/1550 nm output
- Interface: Type-C USB, internal storage + SD card (up to 1,000 files)
- File Format: Bellcore SOR (industry standard)
- Connectors: FC / SC / ST
- Operating Temperature: -10°C to +50°C
The HSV-110D's 2.5 m event dead zone is exceptional for a mid-range portable OTDR — it can resolve closely spaced connectors in patch panels and splice trays. The integrated OPM with tone identification eliminates the need to carry a separate power meter, and the Type-C USB interface makes trace transfer fast and modern. Ideal for FTTx, LAN/WAN installation, and OSP maintenance.
2. HSV-100D — Compact Entry-Level OTDR for Shorter Fiber Links
The HSV-100D is the lighter sibling in the HSV series, purpose-built for technicians working on shorter fiber runs, indoor cabling, and data center environments where portability and speed matter most.
Ideal For:
- In-building fiber (structured cabling, riser cables)
- Data center fiber certification
- Campus network testing
- Quick fault location on short spans
Its compact footprint and simplified interface make it the preferred choice for technicians who need fast, repeatable results without the complexity of a full-featured OTDR.
3. EXFO MAX-715D — Professional-Grade OTDR for Demanding Networks
The EXFO MAX-715D represents the professional tier of portable OTDRs, trusted by tier-1 carriers, system integrators, and network operators worldwide.
Key Specifications:
- Display: 7-inch outdoor-enhanced touchscreen (800×480 TFT)
- Wavelength: 1310 / 1550 nm
- Dynamic Range: 30 / 28 dB
- Event Dead Zone: 1 m (industry-leading)
- Attenuation Dead Zone: 4 m
- PON Dead Zone: 35 m
- Distance Range: 0.1 – 160 km
- Linearity: ±0.05 dB/dB (exceptional accuracy)
- Sampling Points: Up to 256,000
- Sampling Resolution: 0.04 – 5 m
- Storage: 2 GB internal (20,000 OTDR traces)
- Battery: Rechargeable Li-polymer, 12 hours operation
- Live Fiber Filter: 1625 nm highpass, >50 dB isolation (1270–1585 nm)
- Warranty: 12 months, includes calibration certificate
With a 1 m event dead zone and 256,000 sampling points, the MAX-715D delivers laboratory-grade accuracy in the field. The 30/28 dB dynamic range covers metro and long-haul fiber spans up to 160 km. The built-in live fiber filter enables safe testing on active PON networks without service interruption. This is the instrument of choice for carrier-grade acceptance testing, PON/FTTx network certification, and long-haul backbone maintenance.
OTDR Application Scenarios
1. New Fiber Installation & Acceptance Testing
After laying a new fiber cable, contractors use an OTDR to verify that every splice and connector meets the loss specification before handing over to the customer. The OTDR trace serves as the as-built documentation for the network.
2. Fault Location & Troubleshooting
When a fiber link goes down, an OTDR pinpoints the exact distance to the break, bend, or bad connector — often within 1 meter. This dramatically reduces truck rolls and mean time to repair (MTTR).
3. FTTx / PON Network Deployment
Mini OTDRs with PON-capable wavelengths (1310/1490/1550 nm) are used to test individual subscriber drops in GPON and XGS-PON networks, verifying splitter loss and connector quality at each distribution point.
4. Data Center Fiber Certification
High-density data centers require fast, accurate testing of thousands of fiber jumpers and trunk cables. A mini OTDR with a short dead zone (like the HSV-110D at 2.5 m) can certify short patch cords that a standard OTDR would miss.
5. Outside Plant (OSP) Maintenance
Utility companies, municipalities, and ISPs use OTDRs for periodic fiber health checks, identifying degraded splices or connectors before they cause outages.
6. Emergency Restoration
After cable cuts from construction or natural disasters, field crews use portable OTDRs to quickly locate the damage point and guide excavation or aerial repair teams.
How to Use a Mini OTDR: Step-by-Step Guide
Before You Start
- Clean all fiber connectors with an appropriate cleaner and inspect with a fiber microscope
- Use a launch cable (minimum 50–100 m) to move the connector dead zone away from the fiber under test
- Confirm the fiber type (SM/MM) and set the correct refractive index (typically 1.4677 for SMF-28)
Step 1: Connect the Launch Cable
Attach a pre-cleaned launch cable (also called a dead zone box or launch box) to the OTDR's optical port. Connect the far end of the launch cable to the fiber under test. This eliminates the front-end dead zone and allows the OTDR to measure the first connector on your fiber.
Step 2: Configure Test Parameters
Set the following on the OTDR:
- Wavelength — match to your fiber type (1310 nm for shorter spans, 1550 nm for longer spans or loss-sensitive links)
- Distance range — set to approximately 1.5× the expected fiber length
- Pulse width — shorter pulses for better dead zone; longer pulses for greater dynamic range
- Refractive index — use the fiber manufacturer's specification
- Averaging time — 15–60 seconds for most field tests; longer for noisy or long-span fibers
Step 3: Run the Auto-Test or Manual Test
Most mini OTDRs offer a one-button Auto Test mode that automatically selects optimal parameters. For experienced users, manual mode gives full control over pulse width and averaging time.
Step 4: Analyze the Trace
Review the OTDR trace on screen:
- Reflective peaks = connectors or mechanical splices
- Non-reflective steps = fusion splices or bends
- Sudden drop to noise floor = fiber break or end of fiber
- Check that all event losses are within specification (typically ≤0.1 dB for fusion splices, ≤0.5 dB for connectors)
Step 5: Save and Export Results
Save the trace in SOR format (Bellcore/IEC standard) for compatibility with analysis software. Transfer via USB or SD card. Include the trace in your test report for customer handover or network records.
Step 6: Test the Return Direction
For accurate bidirectional loss measurement, test the fiber from both ends and average the results. This eliminates measurement errors caused by mode field diameter mismatches at splices.
Mini OTDR Comparison Table
| Feature | HSV-110D | HSV-100D | EXFO MAX-715D |
|---|---|---|---|
| Wavelength | 1310/1550 nm | 1310/1550 nm | 1310/1550 nm |
| Dynamic Range | 24/22 dB | — | 30/28 dB |
| Event Dead Zone | 2.5 m | — | 1 m |
| Attenuation Dead Zone | 8 m | — | 4 m |
| Max Distance | 90 km | Short-medium spans | 160 km |
| Sampling Points | 20,000 | — | 256,000 |
| Built-in OPM | Yes | Yes | Yes |
| Built-in VFL | Yes | Yes | Yes |
| Live Fiber Testing | Optional (1610 nm) | — | Yes (1625 nm) |
| Battery Life | Full day | Full day | 12 hours |
| Best For | FTTx, OSP, LAN | Short links, data centers | Carrier, PON, long-haul |
| Price Tier | Mid-range | Entry | Professional |
Frequently Asked Questions (FAQ)
What is the difference between an OTDR and an optical power meter?
An optical power meter measures total end-to-end insertion loss — it tells you how much light is lost but not where. An OTDR maps every event along the fiber with distance, showing you exactly where each loss or reflection occurs. For troubleshooting and documentation, an OTDR is far more informative.
Do I need a launch cable with a mini OTDR?
Yes. Every OTDR has a dead zone immediately after its output port caused by the strong reflection from the first connector. A launch cable (typically 50–200 m of fiber) moves this dead zone away from your fiber under test, allowing the OTDR to measure the first connector accurately. Without a launch cable, the first 5–20 meters of your fiber are invisible.
What dynamic range do I need for my fiber network?
As a rule of thumb: allow approximately 0.2–0.3 dB per km of fiber loss, plus 0.5 dB per connector and 0.1 dB per fusion splice. Add a 3–6 dB safety margin. For a 20 km link with 10 connectors and 20 splices, you need roughly: (20×0.25) + (10×0.5) + (20×0.1) + 5 = 17 dB. The HSV-110D at 24 dB covers this comfortably; the EXFO MAX-715D at 30 dB handles much longer or lossier links.
Can I test live fiber with a mini OTDR?
Standard OTDRs should never be used on live (active) fiber — the OTDR laser can damage connected equipment and the live signal will corrupt the measurement. However, the HSV-110D with optional 1610 nm module and the EXFO MAX-715D with its 1625 nm live fiber filter are specifically designed for safe live fiber testing, using wavelengths outside the active traffic band.
What is SOR file format?
SOR (Standard OTDR Record) is the industry-standard file format defined by Bellcore GR-196 and IEC 61300-3-40. All professional OTDRs save traces in SOR format, which can be opened by analysis software such as EXFO FastReporter, JDSU FiberTrace, or free viewers. Always save in SOR format for customer documentation and future reference.
How often should I calibrate my OTDR?
Most manufacturers recommend annual calibration. The EXFO MAX-715D ships with a calibration certificate. For mission-critical networks or contractual acceptance testing, calibration traceability to national standards (NIST, PTB, etc.) may be required.
What fiber types do these OTDRs support?
All three models support single-mode fiber (SMF) — the standard for telecom, FTTx, and long-distance networks. For multimode fiber (OM1–OM4) used in data centers and short-range links, look for an OTDR with 850/1300 nm wavelengths. Check the product specifications or contact us to confirm multimode compatibility.
How do I choose between the HSV-110D and the EXFO MAX-715D?
Choose the HSV-110D if you need a cost-effective, all-in-one field tester for FTTx deployment, OSP maintenance, or LAN/WAN installation up to ~90 km. Choose the EXFO MAX-715D if you require carrier-grade accuracy, PON live testing, spans beyond 90 km, or need to meet strict contractual test specifications with a calibrated instrument.
Conclusion
A mini OTDR is one of the most valuable tools a fiber optic technician can carry. Whether you're deploying a new FTTx network, certifying a data center, or troubleshooting a downed link at 2 AM, the right portable OTDR saves time, reduces errors, and provides the documentation your customers expect.
- HSV-110D — the versatile workhorse for everyday field testing
- HSV-100D — the compact choice for short-link and indoor environments
- EXFO MAX-715D — the professional standard for carrier and long-haul networks
Browse our full range of portable OTDRs and fiber optic test equipment at splicingmachine.net, or contact our technical team for a recommendation tailored to your network.
