What Is an OTDR?
An OTDR (Optical Time-Domain Reflectometer) is a sophisticated fiber optic test instrument that characterizes an optical fiber by sending a series of light pulses into the fiber and measuring the light that is scattered or reflected back. The result is a detailed OTDR trace – a graphical representation of the fiber’s loss profile from end to end – that reveals the location and magnitude of every splice, connector, bend, and fault along the fiber link.
OTDRs are essential tools for fiber optic network installation, acceptance testing, and maintenance. They are used by telecom operators, ISPs, FTTH contractors, and data center engineers worldwide to verify fiber quality, locate faults, and certify fiber links to industry standards.
How Does an OTDR Work?
An OTDR operates on the principle of optical backscattering and reflection:
- The OTDR launches a short, high-power laser pulse into the fiber under test.
- As the pulse travels along the fiber, a small fraction of the light is continuously scattered back toward the OTDR due to Rayleigh scattering – a natural property of glass fiber.
- At discrete events (splices, connectors, bends, breaks), additional light is reflected back due to Fresnel reflection.
- The OTDR measures the time it takes for the backscattered and reflected light to return, and uses the speed of light in fiber to calculate the distance to each event.
- The OTDR plots the received power vs. distance to generate the OTDR trace.
How to Read an OTDR Trace
Understanding an OTDR trace is a critical skill for fiber optic technicians. Here are the key features to look for:
- Backscatter Slope – The gradual downward slope of the trace represents the fiber’s distributed loss (attenuation). A steeper slope indicates higher fiber loss.
- Reflective Events – Sharp upward spikes on the trace indicate reflective events such as connectors, mechanical splices, or fiber end-faces.
- Non-Reflective Events – Downward steps without a spike indicate non-reflective events such as fusion splices or macro-bends.
- Noise Floor – The flat region at the end of the trace where the OTDR can no longer detect backscattered light.
- Dead Zone – The region immediately after a reflective event where the OTDR is temporarily blinded. An OTDR launch cable box is used to push the dead zone away from the first connector.
OTDR Dead Zones and Launch Cable Boxes
One of the most important concepts in OTDR testing is the dead zone. Immediately after the OTDR’s output connector, the strong Fresnel reflection temporarily saturates the OTDR receiver, creating a blind spot where events cannot be detected.
The solution is to use an OTDR launch cable box (also called a dead zone eliminator) – a reel of fiber (typically 500m, 1000m, or 2000m) connected between the OTDR and the fiber under test. This pushes the dead zone beyond the first connector of the fiber link, enabling accurate measurement from the very beginning.
Key OTDR Specifications Explained
- Dynamic Range (dB) – The maximum fiber loss the OTDR can measure. Higher dynamic range = longer fiber links can be tested.
- Wavelength (nm) – Most OTDRs test at 1310nm and 1550nm for single-mode fiber.
- Dead Zone (m) – The minimum distance after a reflective event where the OTDR can detect the next event. Shorter is better.
- Distance Range (km) – The maximum fiber length the OTDR can test.
- Pulse Width (ns/μs) – Shorter pulses give better resolution; longer pulses give greater dynamic range.
Best OTDRs for FTTH and Telecom

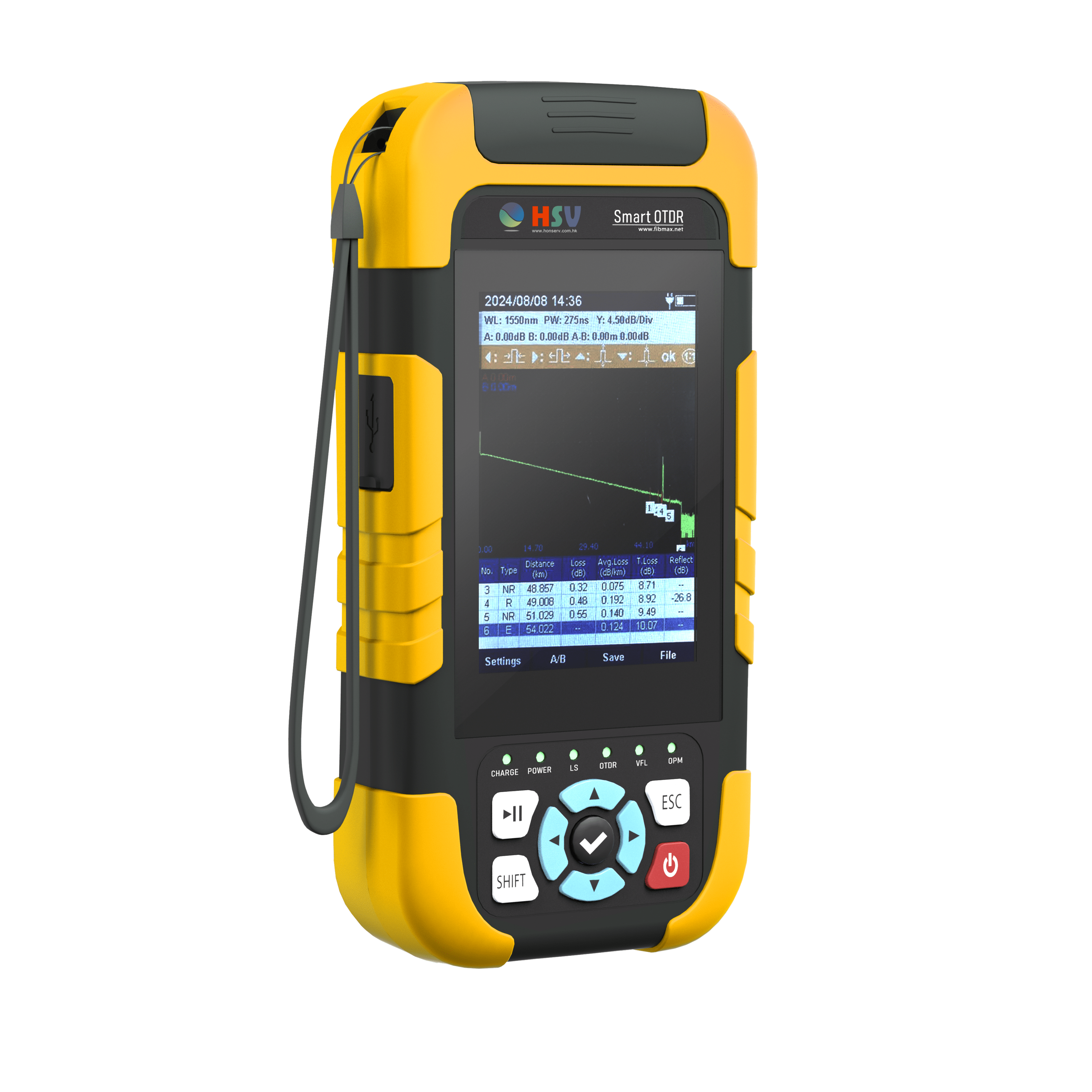

HSV-110D Portable Multi-Function OTDR
The HSV-110D is a versatile, portable multi-function OTDR designed for FTTH and telecom fiber testing. Combining multiple test functions in a single rugged handheld unit, it is the ideal all-in-one solution for field technicians who need comprehensive fiber characterization without carrying multiple instruments.
TEKCN TC3200S Mini OTDR
The TEKCN TC3200S Mini OTDR is the most portable all-in-one fiber tester available, combining OTDR, power meter, light source, and VFL in a single compact handheld device. Perfect for FTTH drop cable testing and field maintenance work.
HSV-610 OTDR
The HSV-610 OTDR features an impressive 32/30 dB dynamic range at 1310/1550nm, making it suitable for testing long-haul telecom fiber links and high-loss fiber networks.
EXFO MaxTester MAX-715B OTDR
The EXFO MaxTester MAX-715B is the industry-standard professional OTDR from EXFO. Available with optional iOLM (intelligent Optical Link Mapper) technology for automated, pass/fail fiber link testing – ideal for large-scale FTTH acceptance testing.
OTDR vs. Optical Power Meter: What’s the Difference?
- Optical Power Meter + Light Source – Measures total end-to-end insertion loss. Fast, simple, and inexpensive. Best for verifying a fiber link meets its loss budget.
- OTDR – Provides a detailed loss profile showing the location and loss of every event. Essential for fault location, splice quality verification, and fiber link certification.
For most FTTH installations, both tools are needed: use a power meter for quick end-to-end loss verification and an OTDR for detailed fiber characterization and fault location.
Frequently Asked Questions
What dynamic range OTDR do I need for FTTH?
For FTTH drop cable testing (typically 1–5 km), a 20–26 dB dynamic range OTDR is sufficient. For distribution fiber and feeder cable testing (up to 20 km), a 28–32 dB OTDR is recommended.
Do I need a launch cable box for OTDR testing?
Yes, for accurate near-end testing. A 500m launch cable box is sufficient for most FTTH applications. For high-power OTDRs with larger dead zones, a 1000m or 2000m launch cable box may be required.
Conclusion
An OTDR is an indispensable tool for any fiber optic professional. Whether you choose the portable HSV-110D for versatile field testing or the professional-grade EXFO MAX-715B for telecom applications, investing in the right OTDR will ensure your fiber networks are installed correctly and maintained efficiently.
