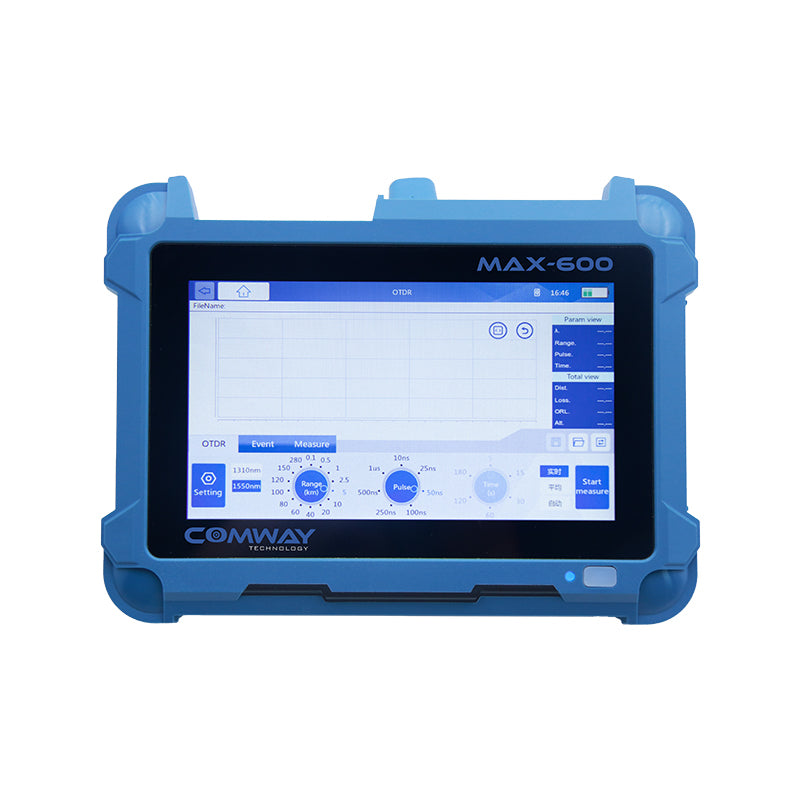

What Is an OTDR and Why Does It Matter?
An Optical Time-Domain Reflectometer (OTDR) is the essential diagnostic tool for fiber optic networks. It sends a series of light pulses into a fiber and measures the light that is scattered or reflected back, producing a detailed trace of the entire fiber link — including splices, connectors, bends, and breaks. Whether you're commissioning a new FTTH network or troubleshooting a live telecom link, an OTDR gives you the precise location and severity of every fault.
How Does an OTDR Work?
The OTDR operates on the principle of Optical Time-Domain Reflectometry. It injects short, powerful light pulses into the fiber and times how long it takes for reflections to return. Since light travels at a known speed through glass, the OTDR can calculate the exact distance to any event on the fiber — down to centimeter-level accuracy on high-end models.
The result is an OTDR trace: a graph showing signal loss (dB) over distance (km or m). Key events appear as:
- Reflective peaks — connectors, mechanical splices, fiber ends
- Loss steps — fusion splices, bends, or damaged sections
- Flat noise floor — the end of the fiber or a complete break
Key OTDR Specifications Explained
| Spec | What It Means | Typical Value |
|---|---|---|
| Dynamic Range | Maximum fiber length the OTDR can test | 28–40 dB |
| Dead Zone (Event) | Minimum distance between two detectable events | 0.8–3 m |
| Dead Zone (Attenuation) | Distance after a reflective event before loss can be measured | 3–10 m |
| Wavelength | Test wavelengths supported | 1310/1550nm (SM), 850/1300nm (MM) |
| Distance Resolution | Precision of fault location | 0.01–0.1 m |
Step-by-Step: How to Use an OTDR to Locate Fiber Faults
Step 1 — Connect a Launch Cable Box
Always use an OTDR launch cable box (also called a dead zone eliminator) between the OTDR and the fiber under test. This eliminates the near-end dead zone and allows you to test connectors at the very start of the link.
Step 2 — Set Test Parameters
Select the correct wavelength (1310nm for short links, 1550nm for long-haul), set the pulse width (shorter for precision, longer for range), and choose an appropriate averaging time (30–60 seconds for accurate results).
Step 3 — Run the Test and Read the Trace
Launch the test and observe the OTDR trace. Identify any loss events, reflective peaks, or anomalies. Most modern OTDRs include auto-analysis to flag faults automatically.
Step 4 — Measure Fault Distance
Use the OTDR's cursor tools to place markers at the fault event. The instrument will display the exact distance from the launch point to the fault — enabling precise field location.
Step 5 — Verify with a Second Wavelength
Test at both 1310nm and 1550nm. Macro-bends and certain splice types show different loss at each wavelength, helping you distinguish fault types.
Step 6 — Save and Export the Trace
Save the OTDR trace file (.sor format) for documentation, customer reporting, and future comparison testing.
Top OTDRs for Field Fiber Testing
TEKCN TC-300 — Best Value All-in-One OTDR
The TC-300 combines a 1310/1550nm OTDR (28/26dB dynamic range) with a built-in optical power meter and VFL — making it a complete fiber testing station in a single handheld unit. Ideal for FTTH contractors and field technicians who need versatility without carrying multiple instruments.
👉 View TEKCN TC-300 OTDR
HSV-610 — High Dynamic Range OTDR for Long-Haul Links
With 32/30dB dynamic range at 1310/1550nm, the HSV-610 is built for testing longer fiber spans and backbone links where standard OTDRs fall short. Its extended range and fast trace acquisition make it a reliable choice for telecom and enterprise network testing.
👉 View HSV-610 OTDR
EXFO MAX-715B — Professional-Grade OTDR for Telecom
The EXFO MAX-715B is a field-proven platform trusted by telecom operators worldwide. It delivers industry-leading dynamic range, sub-meter dead zones, and EXFO's iOLM intelligent test mode for automated pass/fail reporting — ideal for large-scale FTTH rollouts and carrier-grade network acceptance testing.
👉 View EXFO MAX-715B OTDR
EXFO MAX-715D — Next-Gen Handheld OTDR for FTTx & Telecom
The MAX-715D is the latest evolution of EXFO's MaxTester platform, offering enhanced sensitivity, faster testing cycles, and improved cloud connectivity for remote trace management. A top choice for modern FTTx deployments and telecom network maintenance teams.
👉 View EXFO MAX-715D OTDR
OTDR Dead Zone: Why a Launch Cable Box Is Essential
Every OTDR has a dead zone — a blind spot immediately after a reflective event where it cannot measure loss. Without a launch cable box, the first 10–50 meters of your fiber link are invisible to the OTDR. A launch cable box adds a known length of fiber before the test link, pushing the dead zone out of the way so you can test from the very first connector.
👉 Browse OTDR Launch Cable Boxes
Frequently Asked Questions
Q: What dynamic range do I need for FTTH testing?
A: For typical FTTH drop cables (under 5km), 20–26dB is sufficient. For feeder and distribution cables up to 20km, 28–32dB is recommended. Long-haul backbone links may require 36dB or more.
Q: Can an OTDR test both single-mode and multimode fiber?
A: Most field OTDRs are single-mode (1310/1550nm). Multimode testing requires an MM OTDR (850/1300nm). Some combo units support both.
Q: How often should I calibrate my OTDR?
A: Manufacturers typically recommend annual calibration. Always verify with a known reference fiber before critical acceptance testing.
Q: What is the difference between an OTDR and an optical power meter?
A: An optical power meter measures total insertion loss across a link. An OTDR maps every event along the fiber with distance information — it tells you not just how much loss there is, but exactly where it is.
Summary: OTDR Testing Best Practices
- Always use a launch cable box to eliminate near-end dead zones
- Test at both 1310nm and 1550nm for complete fault characterization
- Set pulse width based on link length — shorter for precision, longer for range
- Average for at least 30 seconds for accurate, low-noise traces
- Save .sor trace files for documentation and future reference
- Compare traces over time to detect gradual fiber degradation
A quality OTDR is the backbone of any professional fiber testing workflow. Invest in the right instrument for your link lengths and network type, and you'll locate faults faster, reduce truck rolls, and deliver higher-quality fiber installations.
Explore our full range of OTDRs and fiber optic testers to find the right model for your network.
