Ribbon Fiber Splicing: Everything You Need to Know About Ribbon Fusion Splicers

What Is Ribbon Fiber Splicing?

Ribbon fiber splicing is the process of simultaneously splicing multiple optical fibers arranged in a flat ribbon configuration using a ribbon fusion splicer. Instead of splicing one fiber at a time, a ribbon splicer can splice 2, 4, 6, 8, 10, or 12 fibers simultaneously in a single arc cycle – dramatically reducing splicing time and labor costs for high-density fiber deployments.

Ribbon fiber cables are widely used in high-density FTTH networks, telecom backbone cables, and data center interconnects where large fiber counts must be spliced efficiently. A 144-fiber ribbon cable that would take hours to splice one fiber at a time can be completed in a fraction of the time using a ribbon fusion splicer.

How Does a Ribbon Fusion Splicer Work?

A ribbon fusion splicer operates on the same principle as a standard single-fiber fusion splicer, but with a wider arc electrode system and V-groove array designed to accommodate the full width of a fiber ribbon:

1. Ribbon Preparation – Strip the ribbon matrix coating to expose all fiber cores simultaneously using a ribbon fiber stripper.
2. Ribbon Cleaving – Cleave all fibers in the ribbon simultaneously using a ribbon fiber cleaver, producing flat, parallel end-faces on all fibers.
3. Ribbon Alignment – The ribbon splicer aligns all fiber cores simultaneously using a wide-field camera system and precision V-groove array.
4. Arc Fusion – A single arc cycle fuses all fibers in the ribbon simultaneously, completing the splice in seconds.
5. Splice Protection – A wide ribbon splice protector sleeve is applied and heated to protect all spliced fibers.

Ribbon Splicing vs. Single-Fiber Splicing: When to Use Each

Best Ribbon Fusion Splicers

TEKCN TC-600M – 2 to 12 Core Ribbon Splicer

The TEKCN TC-600M is a professional ribbon fusion splicer capable of simultaneously splicing 2 to 12 core ribbon fiber. As the first Chinese brand to win the ribbon fiber fusion splicer bid in China Telecom, the TC-600M delivers telecom-grade ribbon splicing performance at a highly competitive price. It is the ideal choice for FTTH contractors and telecom operators deploying high-density ribbon fiber networks.

• ✅ Splices 2–12 core ribbon fiber simultaneously
• ✅ Telecom-grade reliability – proven in China Telecom deployments
• ✅ Fast ribbon splice cycle for high-volume deployments
• ✅ Core alignment technology for low splice loss across all ribbon cores
• ✅ Competitive price vs. Japanese ribbon splicers

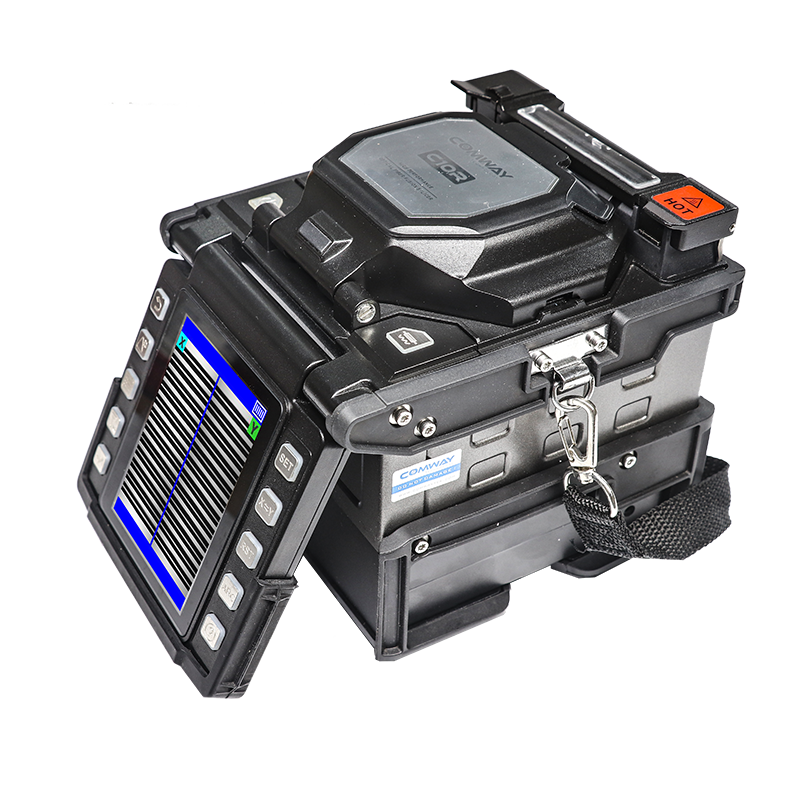

COMWAY C10R – American-Brand Ribbon Fusion Splicer

The COMWAY C10R is a ribbon fusion splicer from the well-known American fiber optic brand COMWAY. Designed for high-density FTTH and telecom ribbon fiber deployments, the C10R delivers reliable ribbon splicing performance with the quality and support that COMWAY is known for in the North American market.

• ✅ American brand – trusted in North American FTTx markets
• ✅ High-density ribbon fiber splicing capability
• ✅ Reliable performance for FTTH and telecom applications

Key Considerations When Choosing a Ribbon Fusion Splicer

• Maximum ribbon width – How many fibers per ribbon does your cable use? (4, 6, 8, 10, or 12 fibers)
• Splice loss specification – What is the maximum acceptable splice loss per fiber?
• Splice speed – How many ribbon splices per day do you need to complete?
• Compatibility – Is the splicer compatible with your ribbon fiber type and ribbon cleaver?
• Budget – Ribbon splicers cost more than single-fiber splicers but deliver significant labor savings on large projects.

Frequently Asked Questions

Can a ribbon fusion splicer splice single fibers?

Most ribbon fusion splicers can also splice single fibers, but they are optimized for ribbon splicing. For mixed single-fiber and ribbon work, consider a splicer that supports both modes.

What is the splice loss of a ribbon fusion splicer?

A good ribbon fusion splicer achieves splice loss of <0.05 dB per fiber for single-mode ribbon fiber. Some premium models achieve <0.02 dB per fiber.

Conclusion

Ribbon fiber splicing is the most efficient way to splice high-density fiber cables, delivering dramatic time and labor savings on large FTTH and telecom projects. Whether you choose the TEKCN TC-600M for its proven telecom-grade performance or the COMWAY C10R for its American brand reliability, a ribbon fusion splicer is an essential investment for any contractor working with high-density fiber cables.
