COMWAY A3 Fiber Fusion Splicer A3 Fiber Optic FTTx Splicing Machine
COMWAY A3 Fiber Fusion Splicer A3 Fiber Optic FTTx Splicing Machine
Regular price
$1,500.00 USD
Regular price
$1,680.00 USD
Sale price
$1,500.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

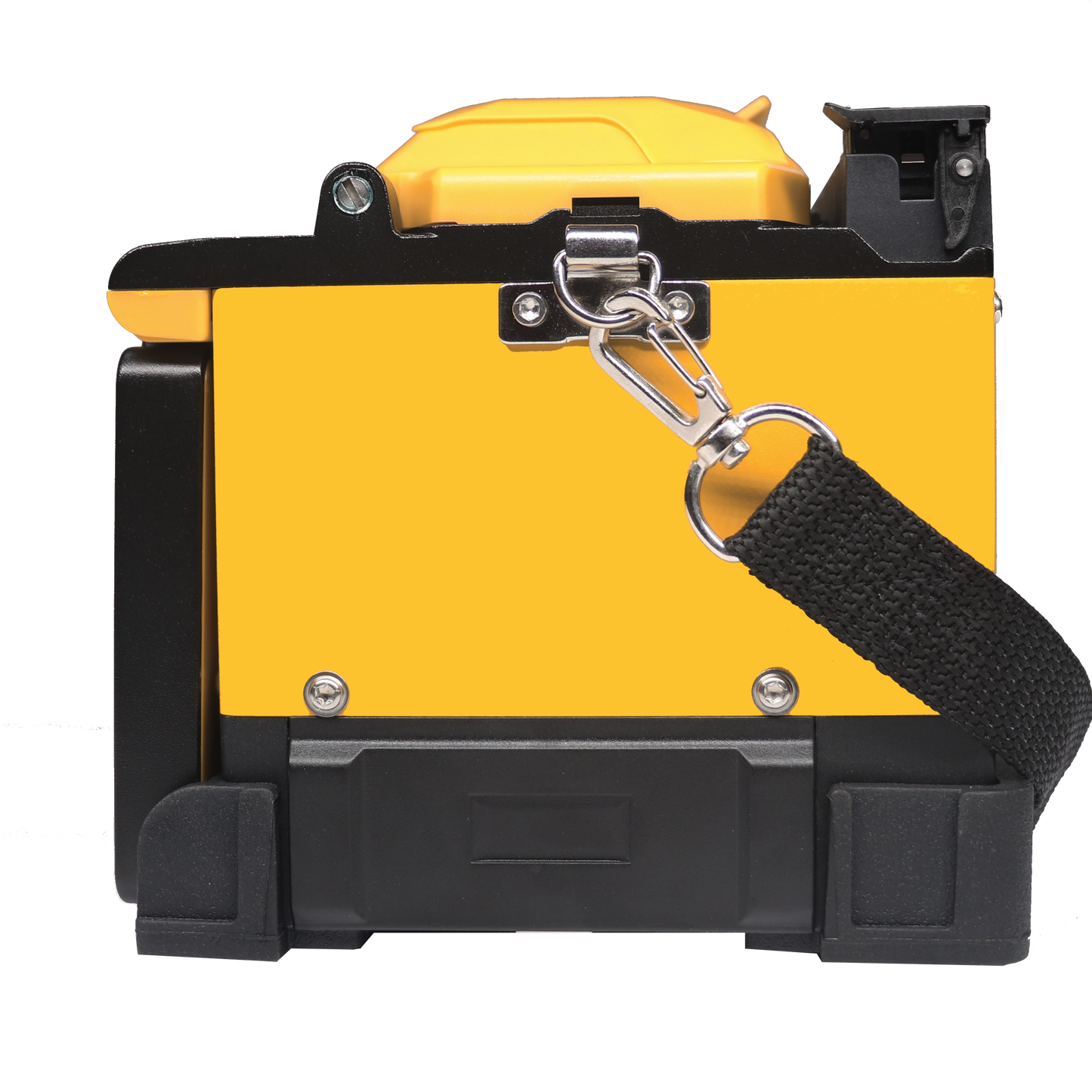

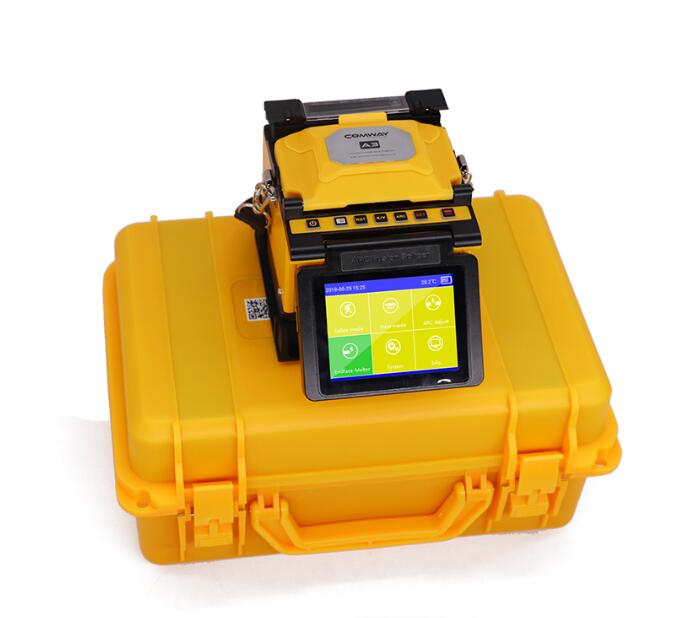

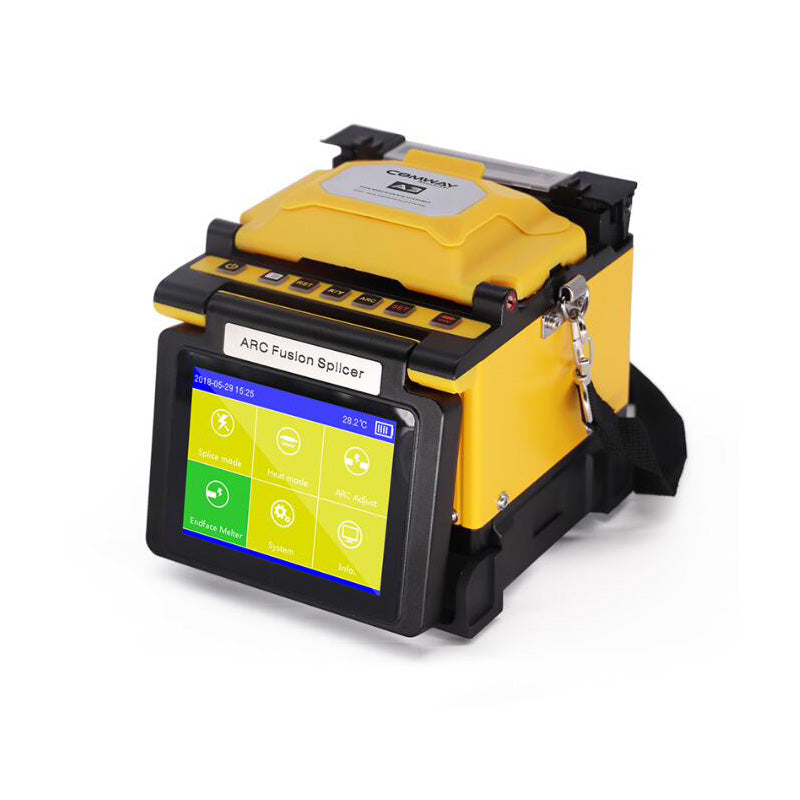

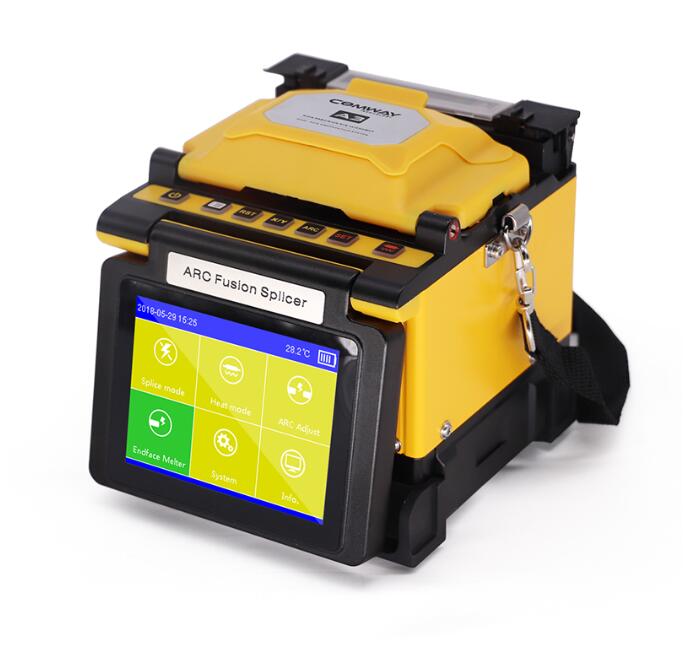

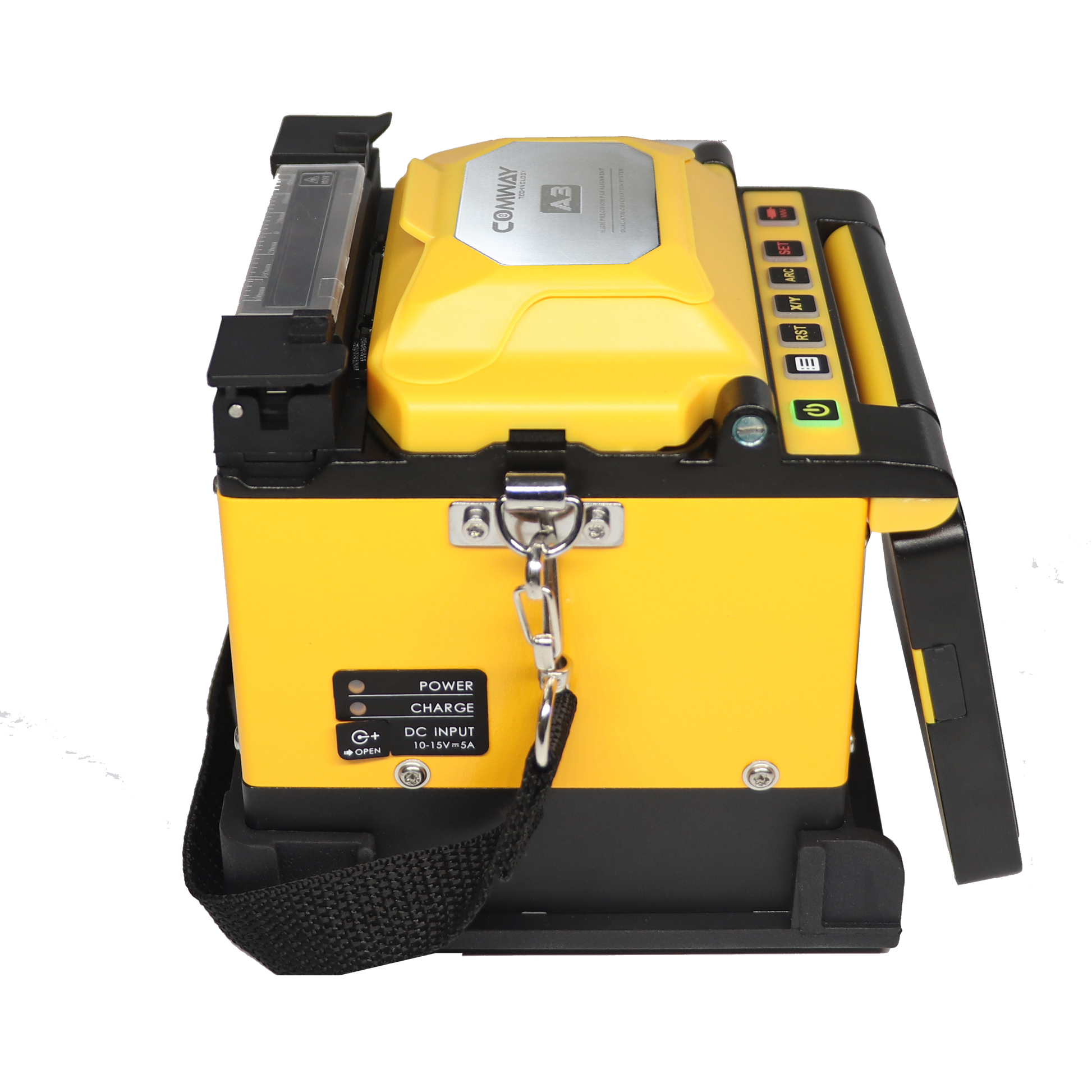

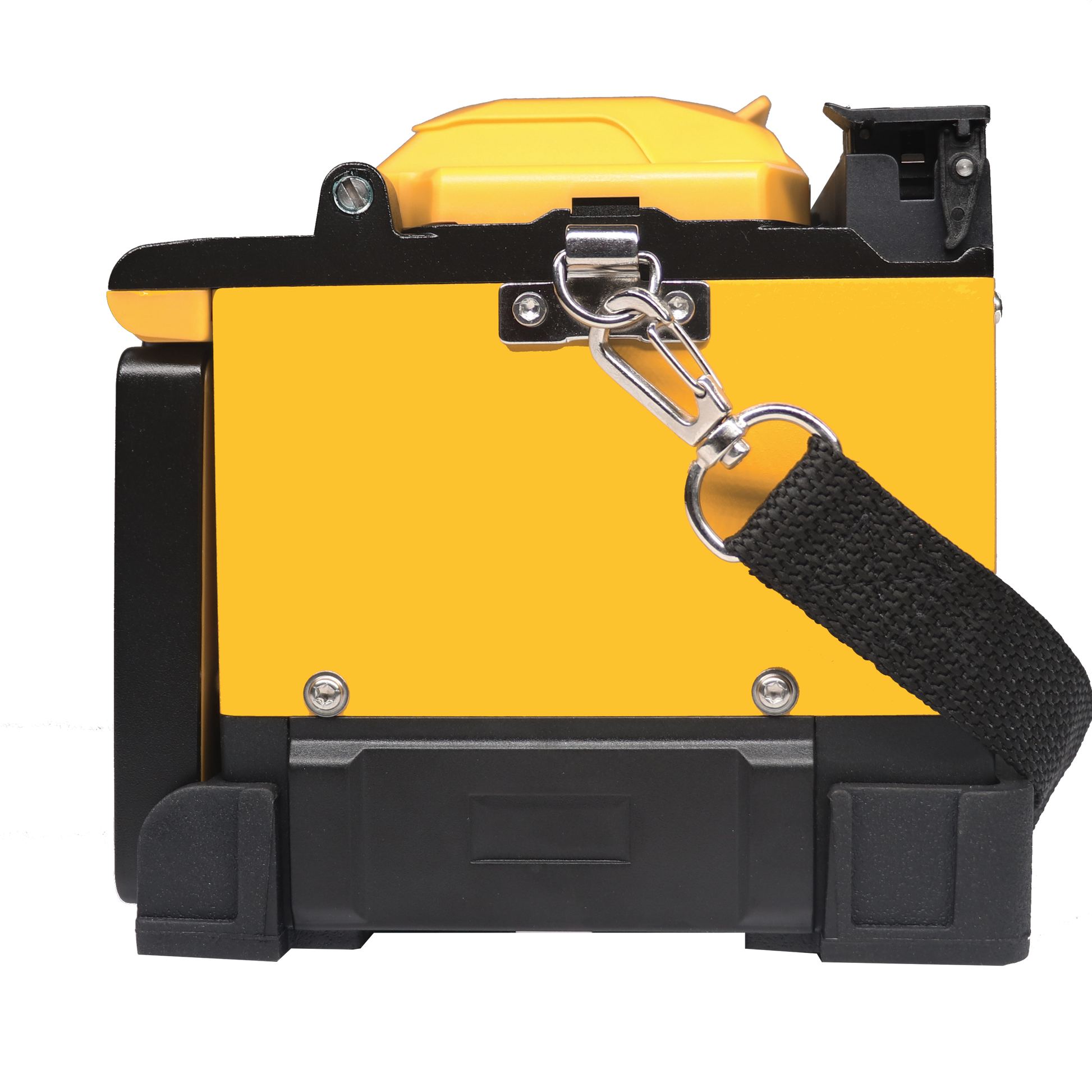

COMWAY A3 Fiber Fusion Splicer A3
Fiber Optic Splicing Machine ARC Welding Equipment
Multi-function FTTH Fusion Splicer
High precision PAS?alignment system
*Splicing time 6 sec., heating time 30?sec.
*Fast boot technology
*More than 240 times splicing and heating
*Resist dust, rain, wind, and shock

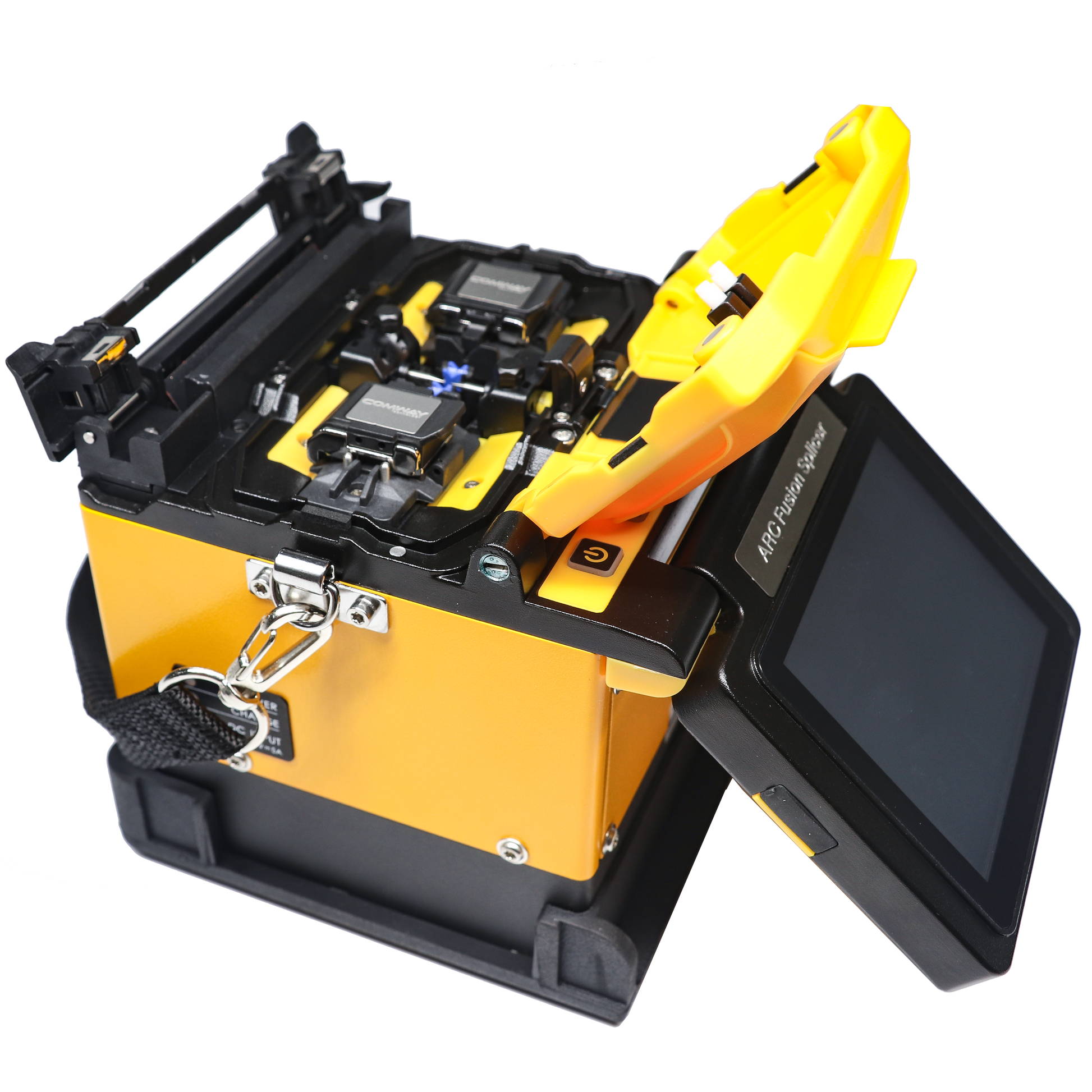

*Easy to change electrodes and fiber holder
*High speed USB, maintenance via the Internet
COMWAY A3 fusion splicer Specifications:?
| Size & Weight | D136¡ÁW135¡ÁH136(mm),1.5kg (1.8kg with battery) |
| Fiber alignment | High precision PAS Alignment |
| Fiber type |
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZ/NZDS(ITU-T G.655),BI(ITU-T G.657) |
| Splice mode | Single fiber |
| Fiber diameter | Cladding diameter 80~150um,coating 100~1000um |
| Cleave length |
250um cladding diameter 8~16mm,over 250um cladding diameter 16mm |
| Splicing programs | Max.100 |
| Splicing time |
6 sec. [SM Fast] program, 15 sec. [SM G652] program |
| Heating programs | Max.30 |
| Heating time | Typical 15 sec.(Adjustable) |
| Splice protector |
10~60mm |
| Splice image capture | Max.300 |
| Splice data storagge | Max.20000 |
| Splice loss |
SM:0.02dB,MM:0.01dB,DS:0.04dB,NZ/NZDS:0.04dB;BI:0.02dB |
| Return loss | >>60dB |
| Fiber view |

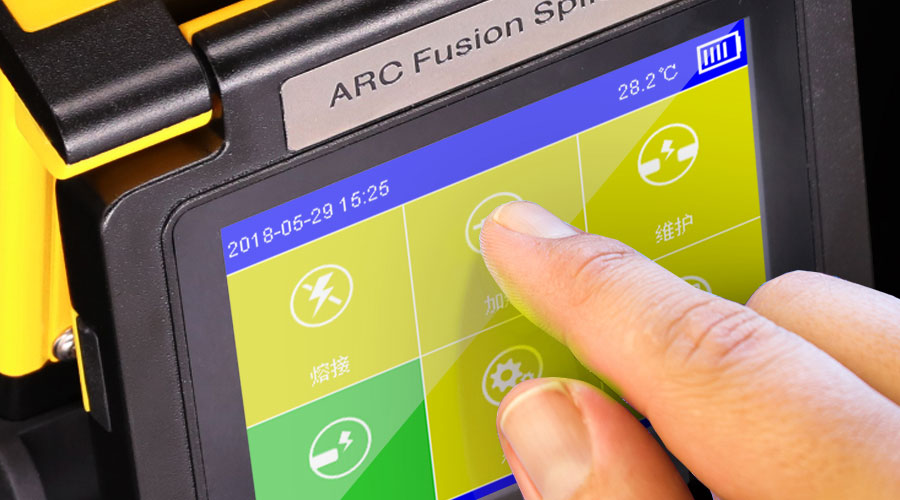

Two 300x cameras observation,4.1 inch high-light color screen |
| Operation condition |
Altitude 0~5000m,Humidity 0~95%,Temperature -20~+50¡æ,Wind velocity up to 15m/s |
| Storage condition | Humidity 0~95%, Temperature -40~+80¡æ,(Battery -20~+40¡æ) |
?
?
?
--------------------------------------------------------------------------------------------------
We keep lots in stock, If you need more, please contact us directly!?
Condition:? - Brand New .
Warranty Service £º? ?- 12 months .

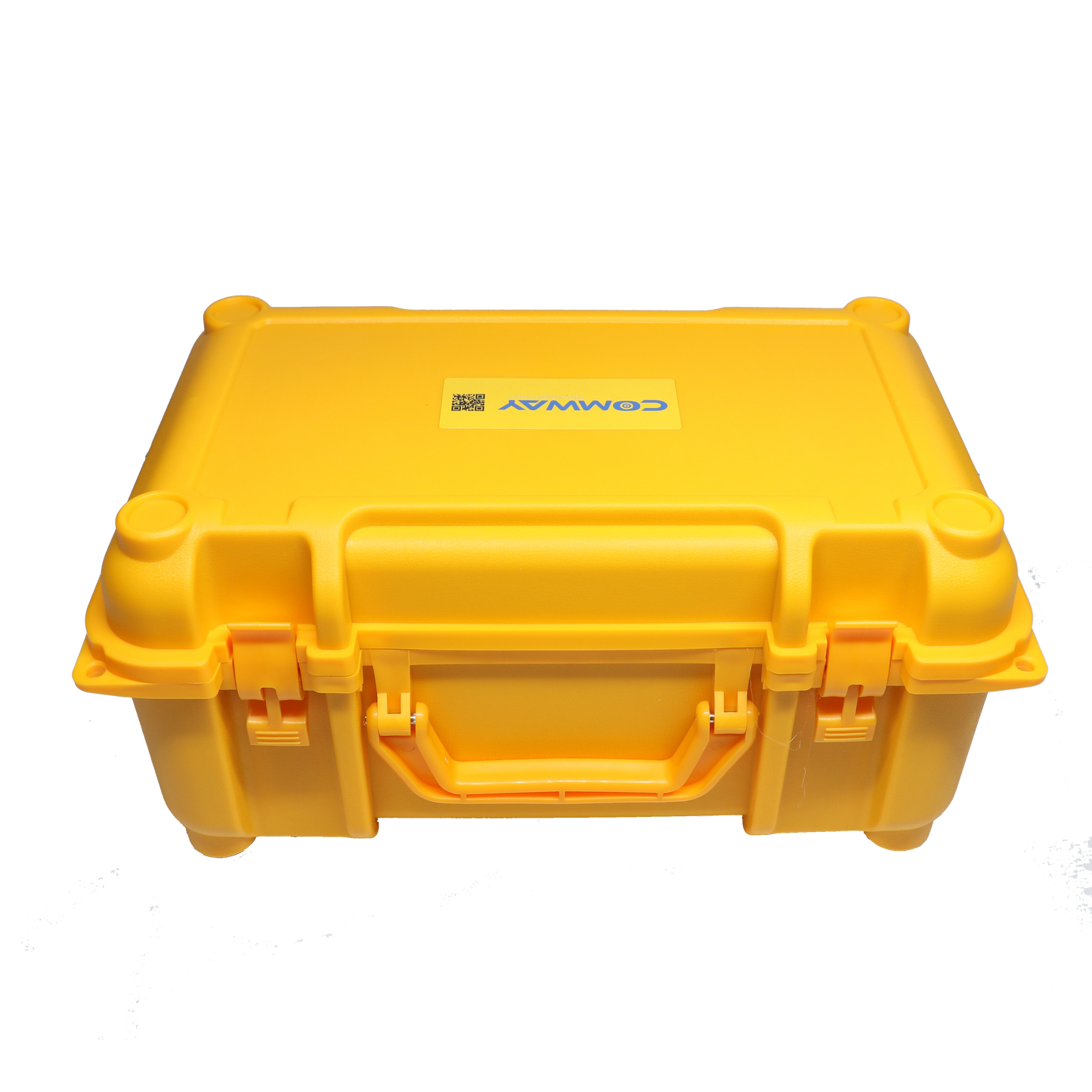

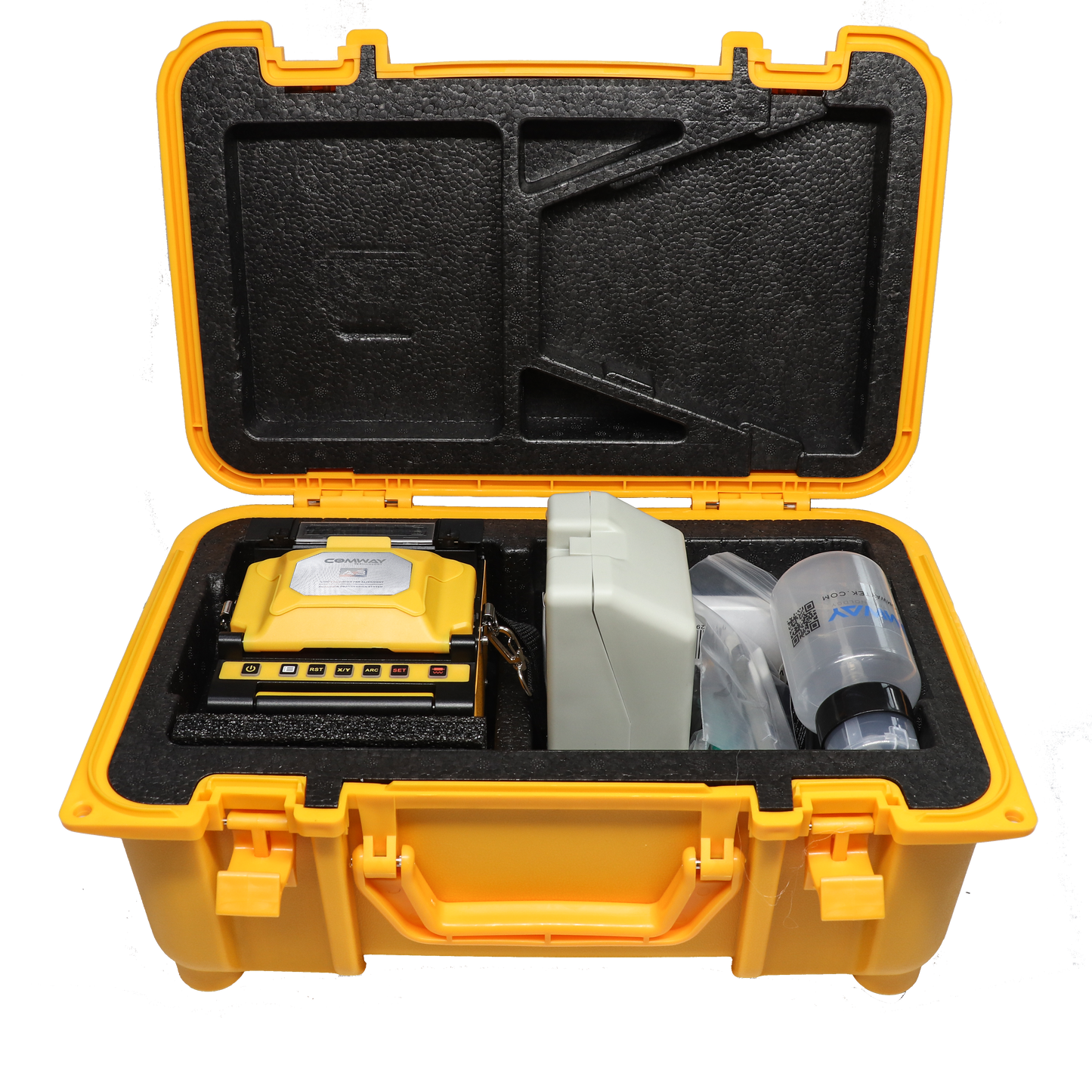

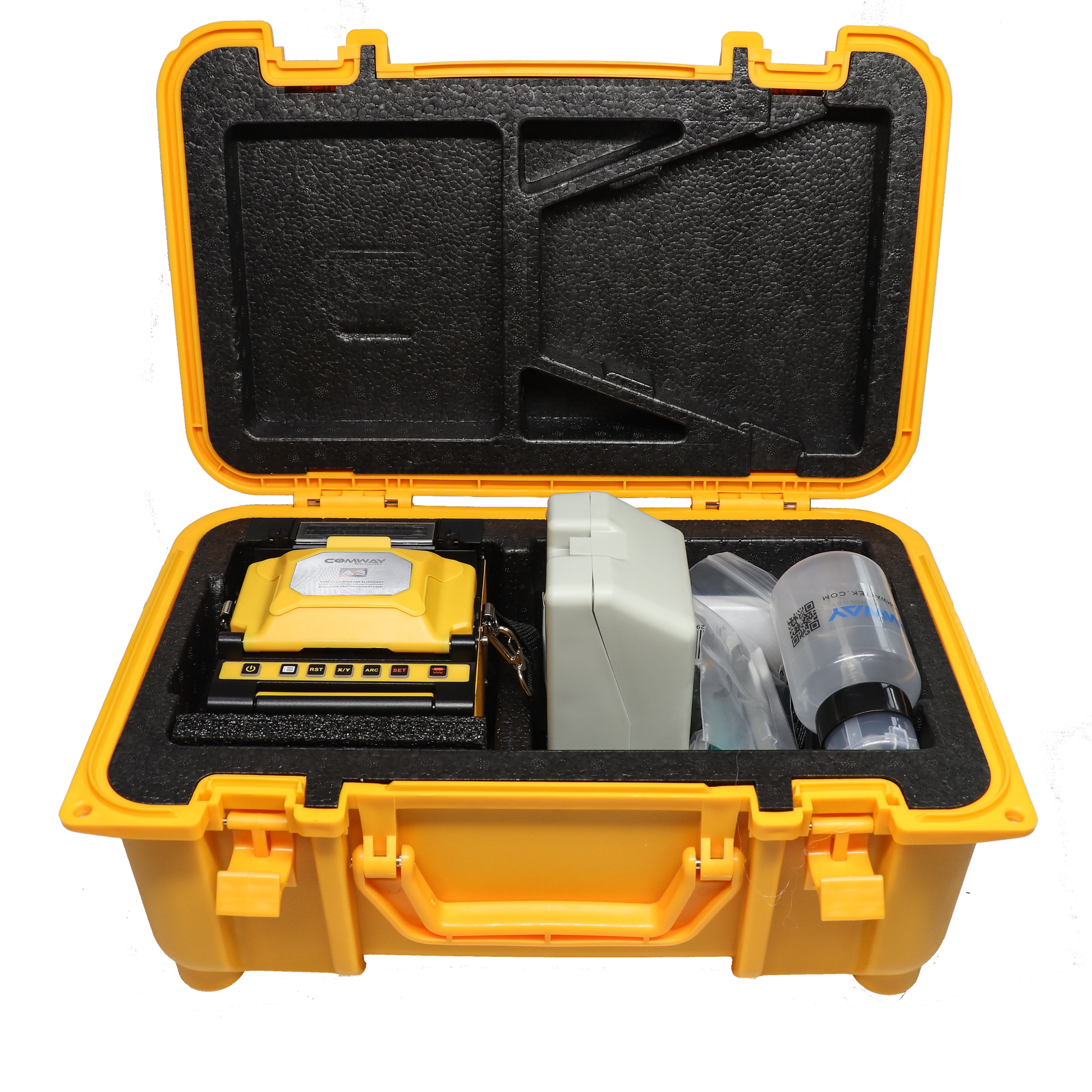

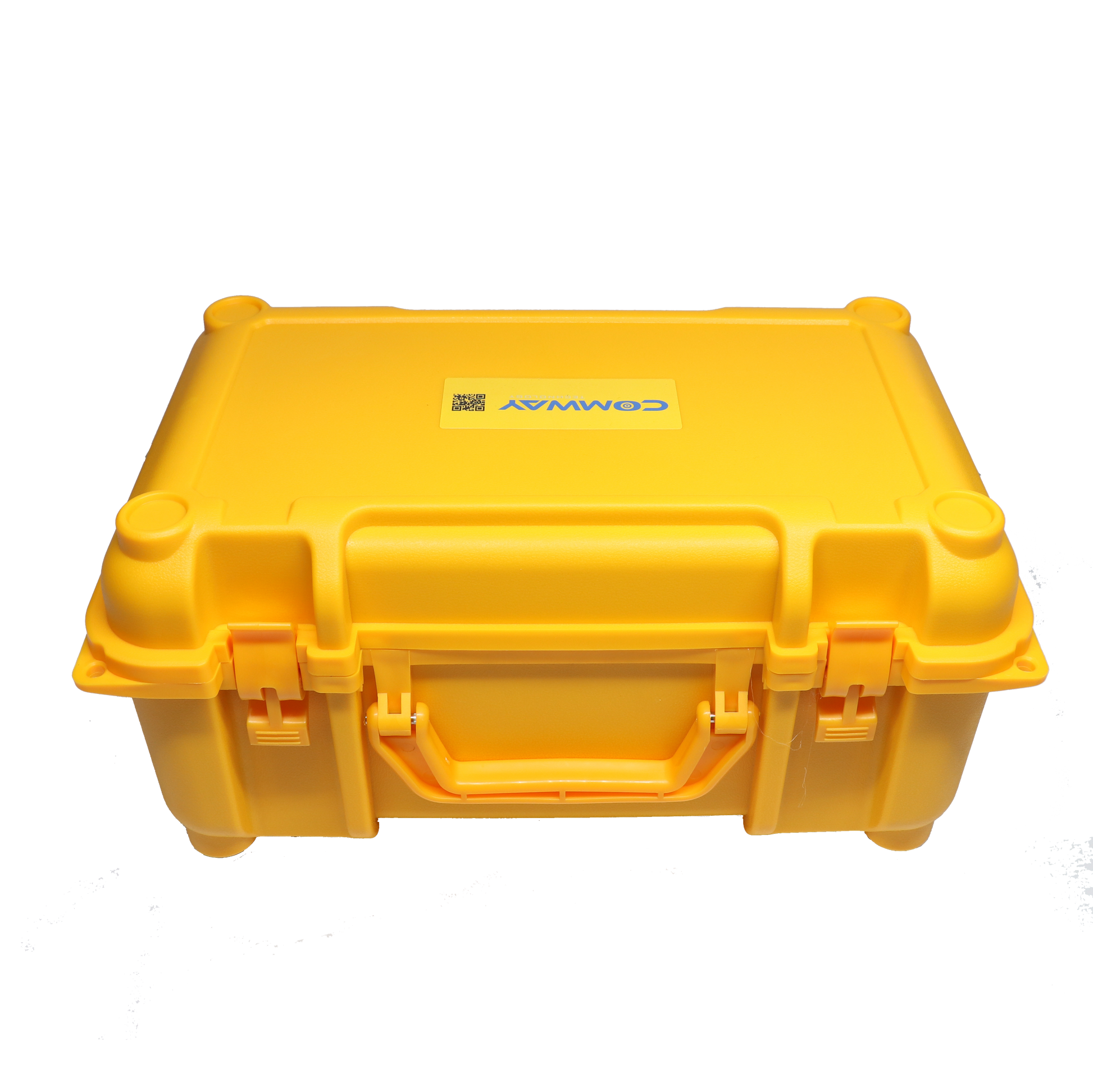

Package includes:? - standard package with accessories,? in carton.?
