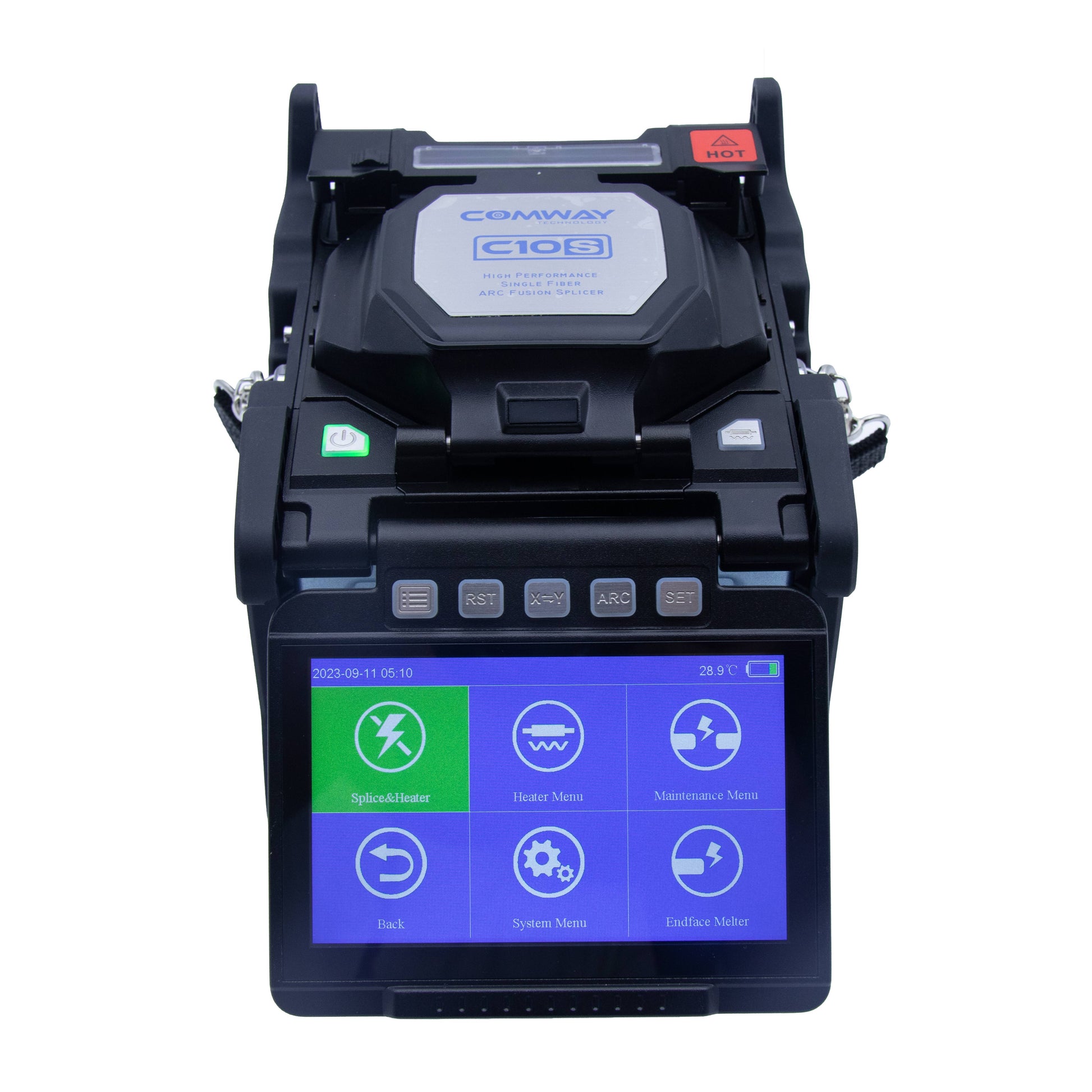

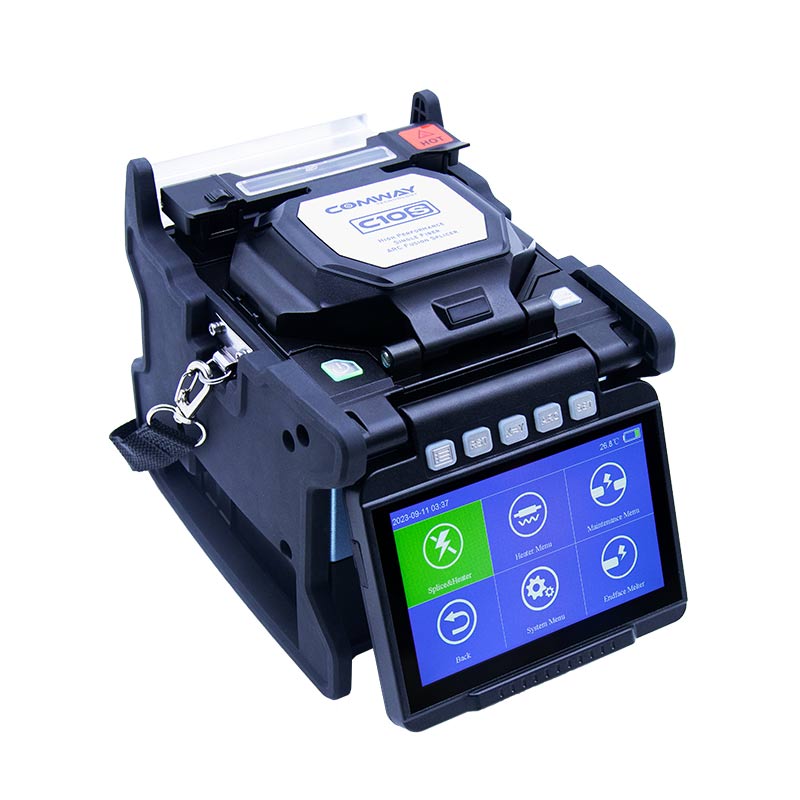

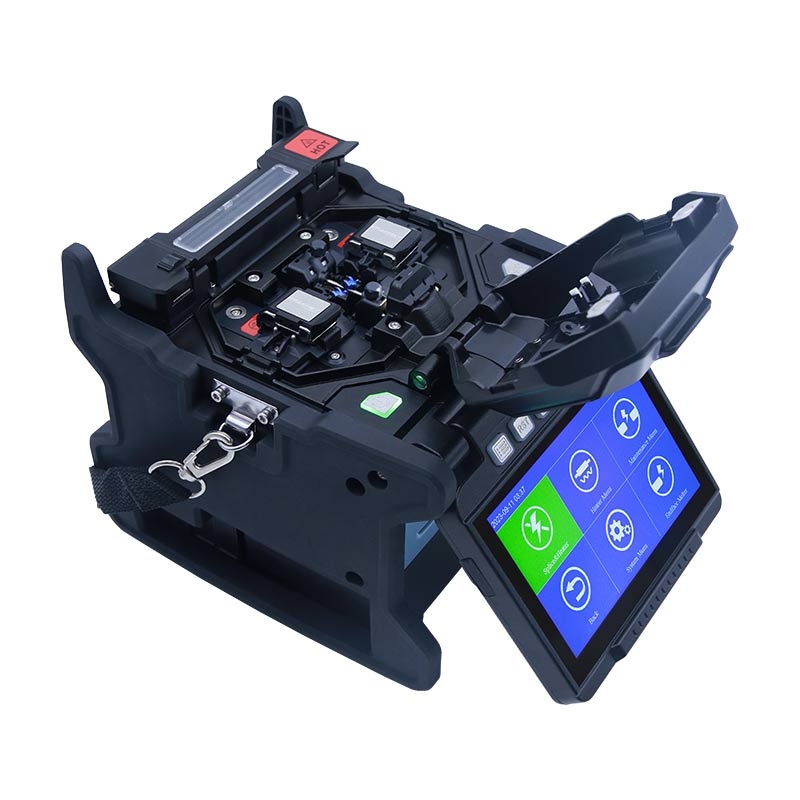

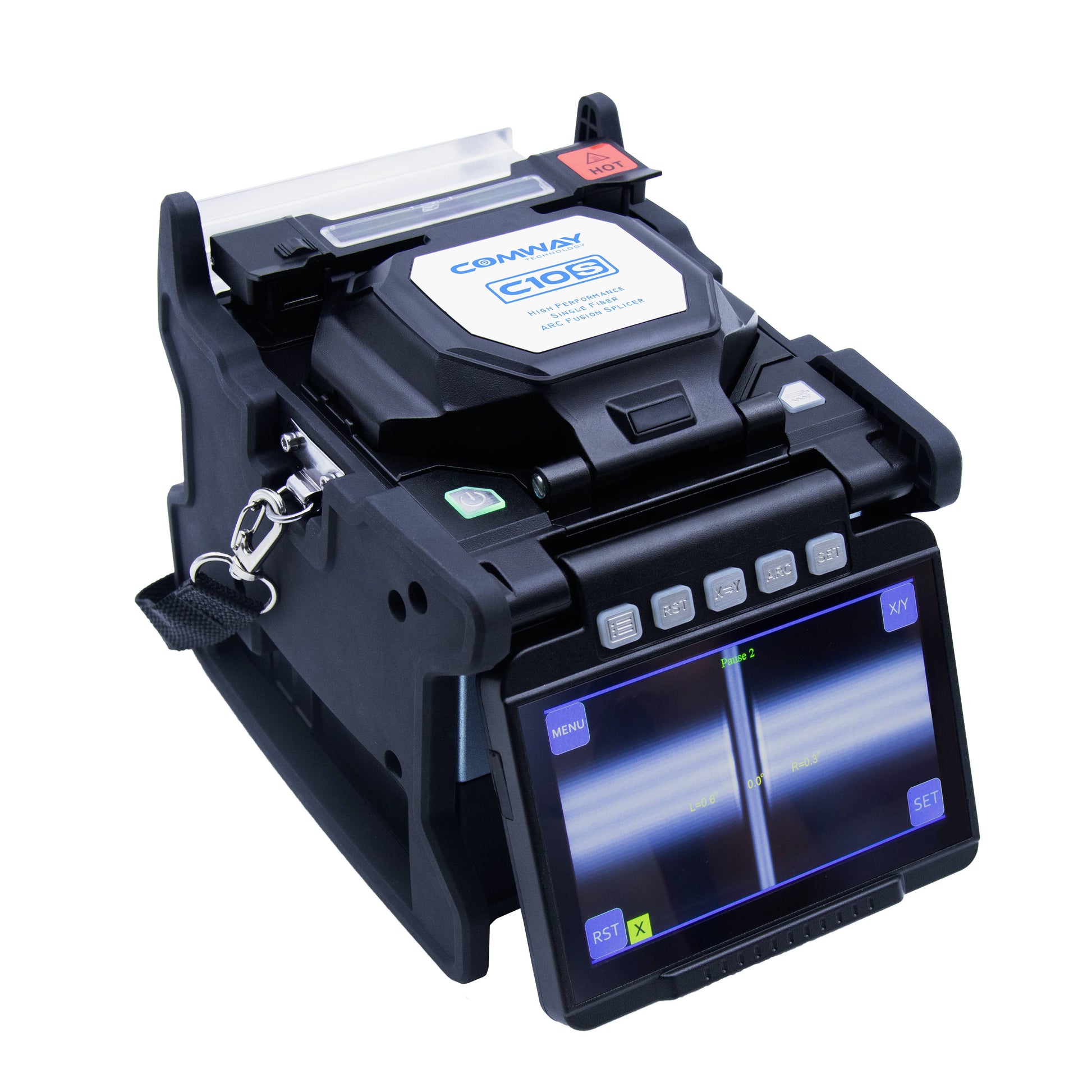

Best fusion splicer COMWAY C10S V2 core alignment fusion splicer
$4,500.00
Sale price
$4,500.00
Regular price
$4,800.00
Skip to product information
Best fusion splicer COMWAY C10S V2 core alignment fusion splicer
$4,500.00
Sale price
$4,500.00
Regular price
$4,800.00
Shipping calculated at checkout.
COMWAY C10S 2023 v2? Fusion Splicer?& Splicing Machine?
COMWAY?FUSION SPLICER C10S 2023 V2
- Born for 5G Construction: Supports Splicing of Fiber G.654E
-
Multi-Function: Fiber Endface Melter & Fusion Splicer
-
Professional?Backbone Machine:?6 Motors Core?Alignment
- Ultra High Precision: 750X Single Axis View (Zoom Up),with touch screen
- More Efficiency: 5sec. Splicing Time, 8sec. Heating Time
- Durable Design: Waterproof, Dust-Proof, Anti-Shock
- Anti-Theft & Security: Remote Locker & GPS (Option)
Specifications
| Size?&?Weight | D170 x W135 x H149(mm);?2.0kg (2.5kg with battery) |
| Fiber Alignment | 6 Motors Core?Alignment |
| Fiber Type | SM(ITU-T G.652), EB(ITU-T?G.654),?MM(ITU-T?G.651),?DS(ITU-T?G.653),?NZ/NZDS(ITU-T?G.655),?BI(ITU-T?G.657)? |
| Splice Mode | Single fiber |
| Fiber Diameter | Cladding dia. 80~150¦Ìm; Coating dia. 100~3000¦Ìm |
| Cleave Length | 250¦Ìm cladding dia. 8~16mm; Over 250¦Ìm cladding dia. 16mm |
| Splicing Programs | Max. 200 |
| Splicing Time | 5 Sec. [SM Fast] program; 10 Sec. [SM G652] program |
| Heating Programs | Max. 30 |
| Heating Time | Adjustable, 8 Sec. with micro sleeves 12 Sec. with slim 60mm and 40mm sleeves |
| Splice Progector | 10~60mm |
| Splice Image Capture | Max. 800 |
| Splice Data Storage | Max. 20000 |
| Splice Loss | SM:?0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI: 0.02dB |
| Regurn Loss | 60dB |
| Loss Estimation | Yes |
| Operation Condition | Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10~+50oC; Wind velocity: up to 15m/s |
| Storage?Condition | Humidity: 0~95%; Temperature: -40~+80oC (battery -20~+40oC) |
| Tension | 1.96~2.25N |
| Screen | 5?inch?touch screen |
| Fiber Magnification | X/Y: 750X(Zoom Up); X&Y:?300X |
| Port | High speed USB |
| Electrode life | 5000 ARC discharges |
| Power supply | AC100-240V, 50/60Hz |
| Battery Parameters | 8400mAh high capacity battery, over?350 circles splicing and heating |
?
ID Electrode, only the origin electrode is adaptive to the fusion splicer, guarantees the splicing quality and the machine's performance.
Package Includes:
- Fusion Splicer C10S?2023 V2
- User Guide
- Stripper
- Extra Electrodes
- High Precision Cleaver CC03
- Carrying Case
- High Capacity Battery
- AC Adapter
- Cooling Tray
- USB Cable
- DC Charging Cable
- AC Adapter Cable
- Hand Strap
- Shoulder Strap
- Alcohol Bottle
