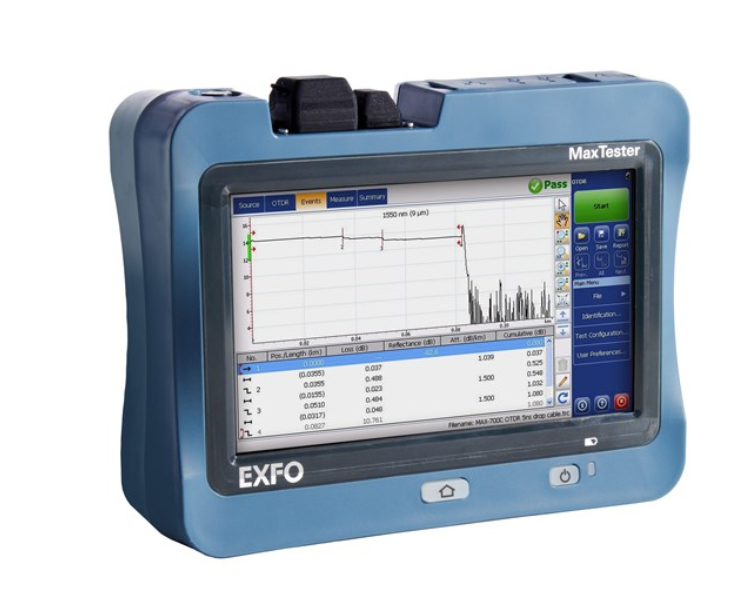

EXFO OTDR MAX-730C-SM2 PON OTDR

The MaxTester 730C (MAX-730C) is designed for testing through FTTH/PON splitters for end-to-end characterization. This handheld OTDR is ideal for FTTH/PON testing, live fiber troubleshooting and metro range testing.

The MAX-730C advantage

• 7-inch, outdoor-enhanced touchscreen
• Optimized to test through optical splitters and characterize FTTH links
• Characterize and troubleshoot links up to 100 km with a dynamic range of 39 dB
• Find more problems closer to the splitter than other OTDRs thanks to the highest resolution for PON testing and the shortest PON dead zone available

Key features

• Handy, lightweight, powerful, tablet-inspired design
• 7-inch, outdoor-enhanced touchscreen¨Cthe biggest in the handheld industry
• 12-hour autonomy
• Dead zones: EDZ 0.6 m, ADZ 2.5 m
• Dynamic range: 39/38/39 dB
• Rugged design built for outside plant

?

Applications

• FTTx/PON testing through splitters (up to 1x128)
• Access network testing (P2P)
• Metro links testing (P2P)
• Live fiber troubleshooting

?

EXFO MAX-730C-SM2 1310/1550 & 1625Filtered (39/38/39dB) with otdr softare

?

?

?
