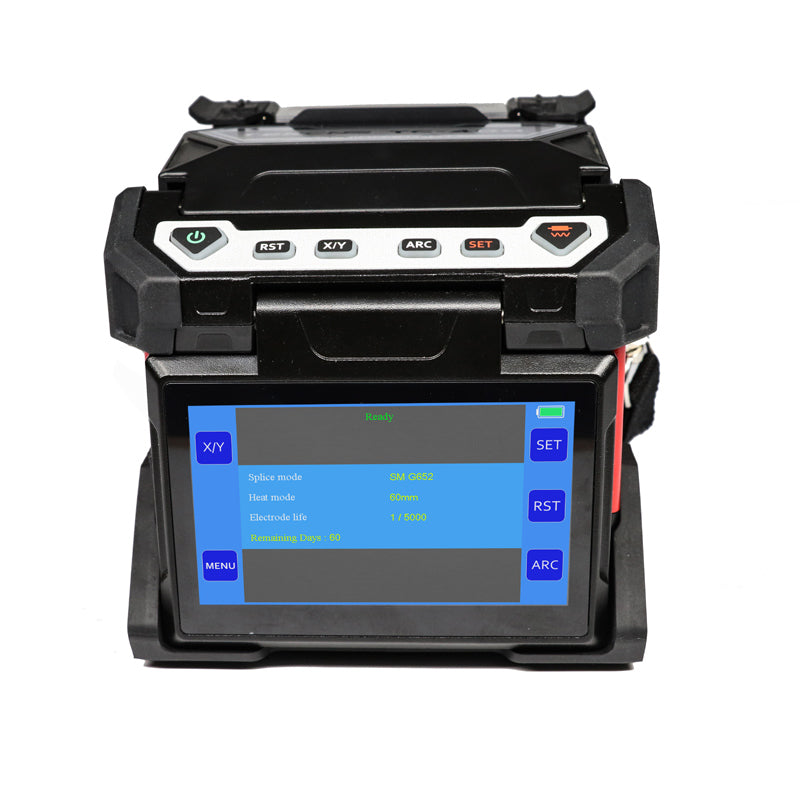

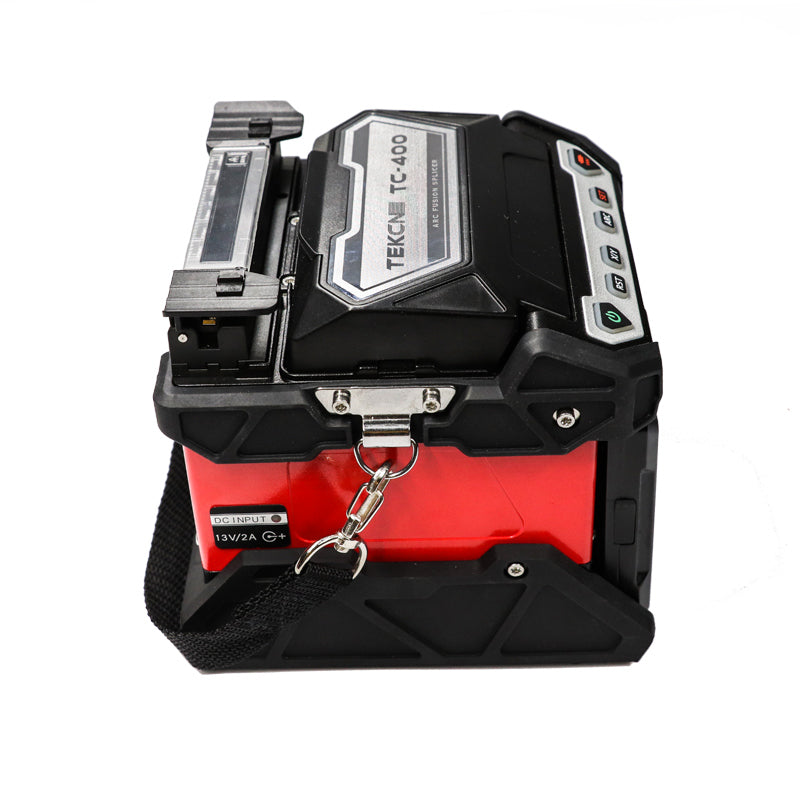

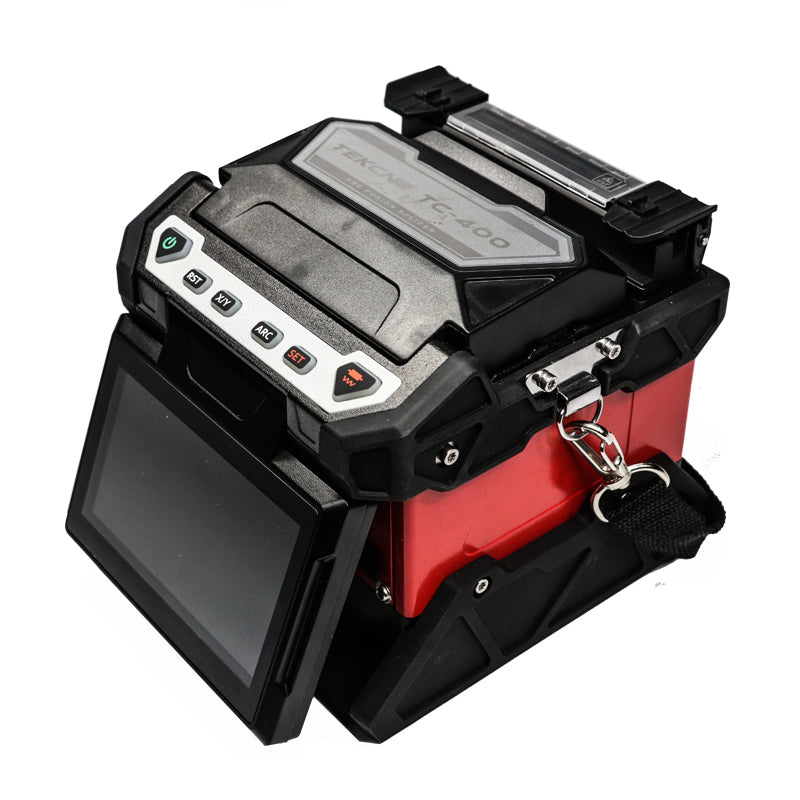

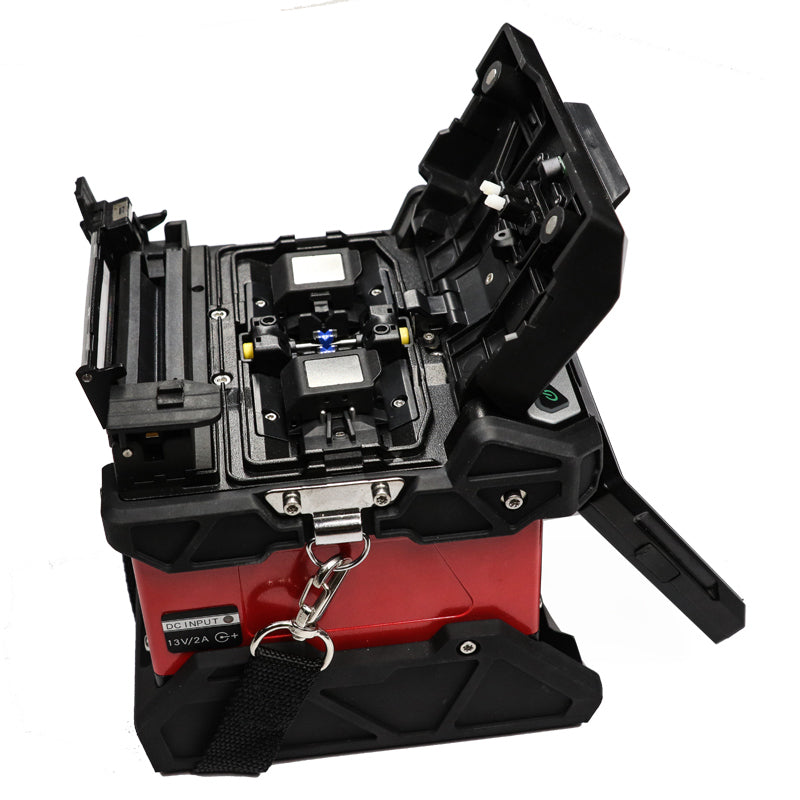

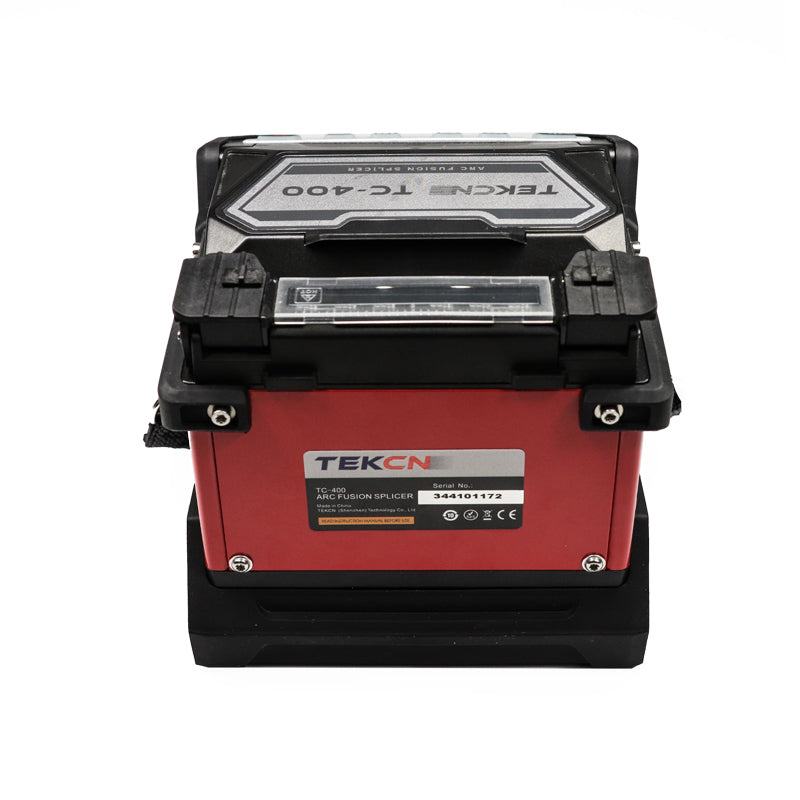

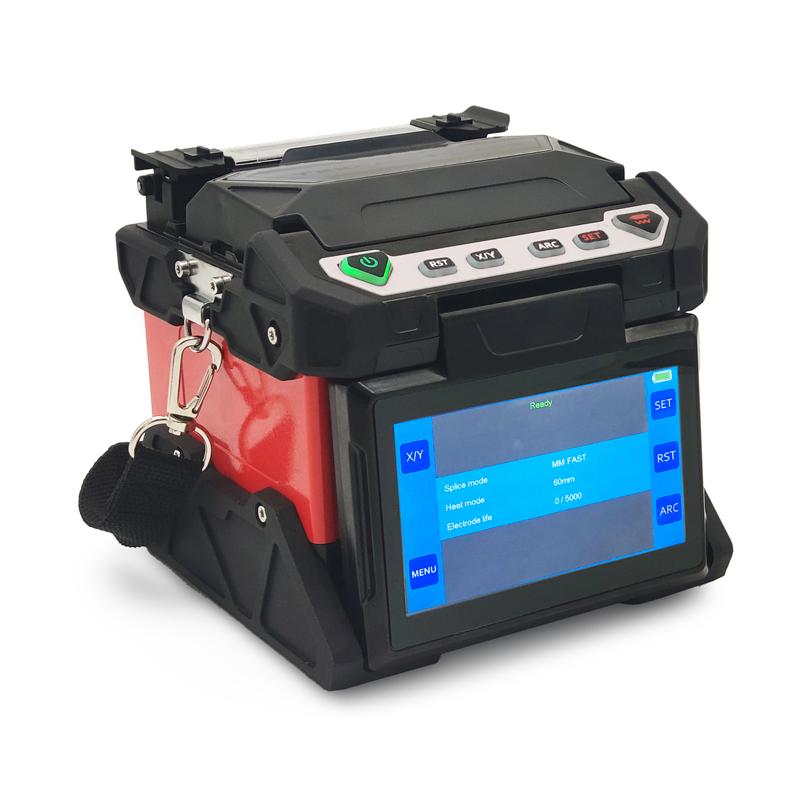

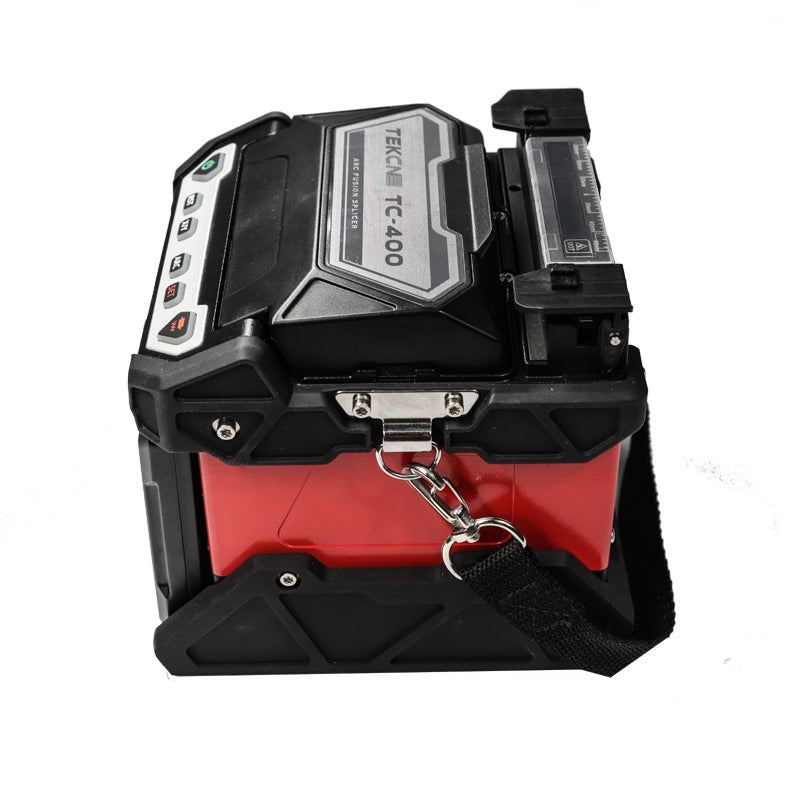

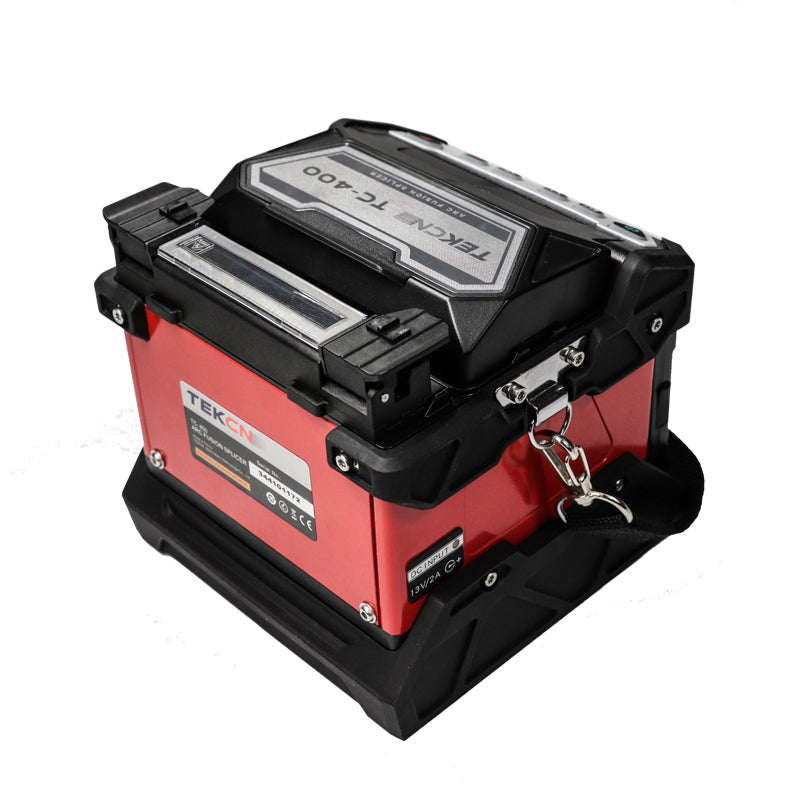

Fusion Splicing TEKCN TC-400i Ftth Fusion Splicers

Name: Fusion Splicing TEKCN TC-400i Ftth Fusion Splicers
Brand: TEKCN Fusion splicer Store
SKU: TEKCN-400i-kit
Price: 829.99 USD
Availability: InStock

$829.99 USD

~~$1,299.00 USD~~ $829.99 USD

Sale Sold out

Shipping calculated at checkout.

Promotion price only usd950/set TO?Brazil

TEKCN TC-400i?Fusion Splicer FTTH Fiber Optic splicing machine?Free shipping

Splicing time 7 sec., heating time 9 sec.

Up to X/Y 760x magnification

Over 240 times splicing and heating

Compact and lightweight

Full HD capacitive touchscreen

Speicifications

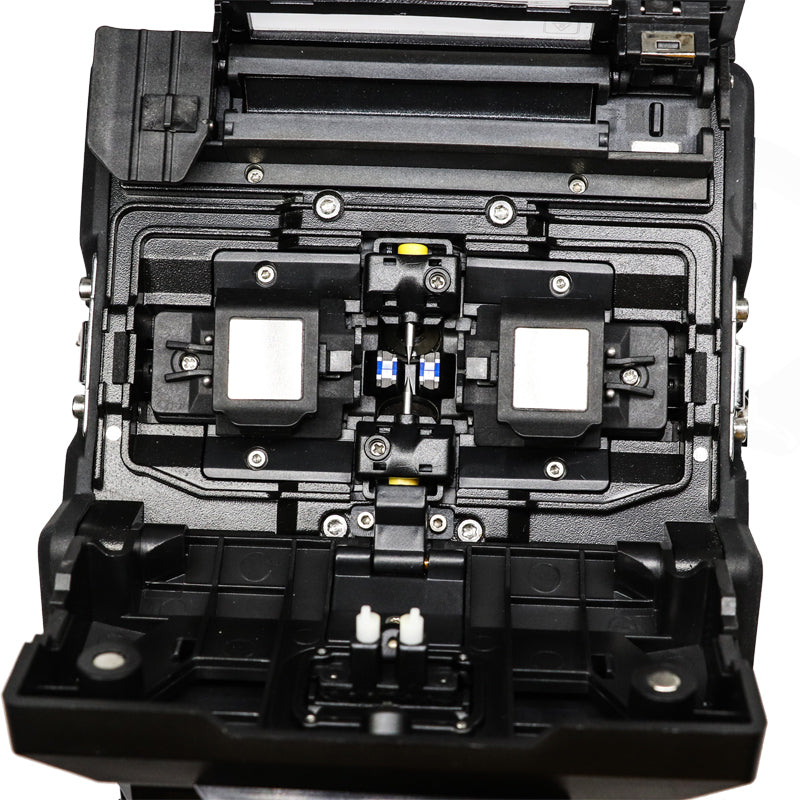

Fiber alignment	core to core?alignment
Applicable fibers	Single/SMF(G.652/657), MMF(G.651), DSF (G.653), NZDSF (G.655), BI(G,657)
Cladding dia.	80-150pm?/100-1000pm
Sheath dia.	8-16mm
Cleave length	5mm to 16mm with sheath clamp
Splice mode	Total 100 modes, supports self-defined mode and parameter
Typical splice time	7 sec. SM FAST
Typical splice loss	0.02dB(SM), 0.01dB (MM), 0.04dB (DSF) ,0.04dB (NZDS)and 0.02dB(BI)
Return loss	?60dB
Heating mode	Max. 20
Heating time	9 sec.
Applicable protection sleeve	10~60mm
Splice result storage	Last 20,000 splices
Splice image storage	Max.800
Viewing methods	2 axis CMOS camera with 4.73^u?HD color capacitive touchscreen
Magnification	Supports X/Yor both X and Y simultaneously, maximum up to 760X magnification
Port	MicroSD and USB port for software upgrade?/?data management
Electrode life	Typical 5000 splices
Battery compacity	4000mAh battery, more than 240 times splicing and heating; Standard charging time 3 hours (up to?80%electric quantity in 2 hours)
Power supply	AC100-240V,50/60Hz
Tension test	2N
Operating condition	Altitude : Oto 5,000m above sea level, Wind?:?15m/sec Temperature?:?-10 to 50deg C, Humidity :0to 95%RH
Storage condition	Humidity:?0 to 95%RH Temperature: -10to 80deg C(Battery: -10 to 40deg C)
Size/weight	133Wx 144Dx 133H (mm)/1.5kg (1.8kg including battery)

Applictation

fusion splicer Applictation

----------------------------------------------------------------------------------------------

We keep lots in stock, If you need more, please contact us directly!?

Condition:? - Brand New .

Warranty Service £º? ?- 12 months .

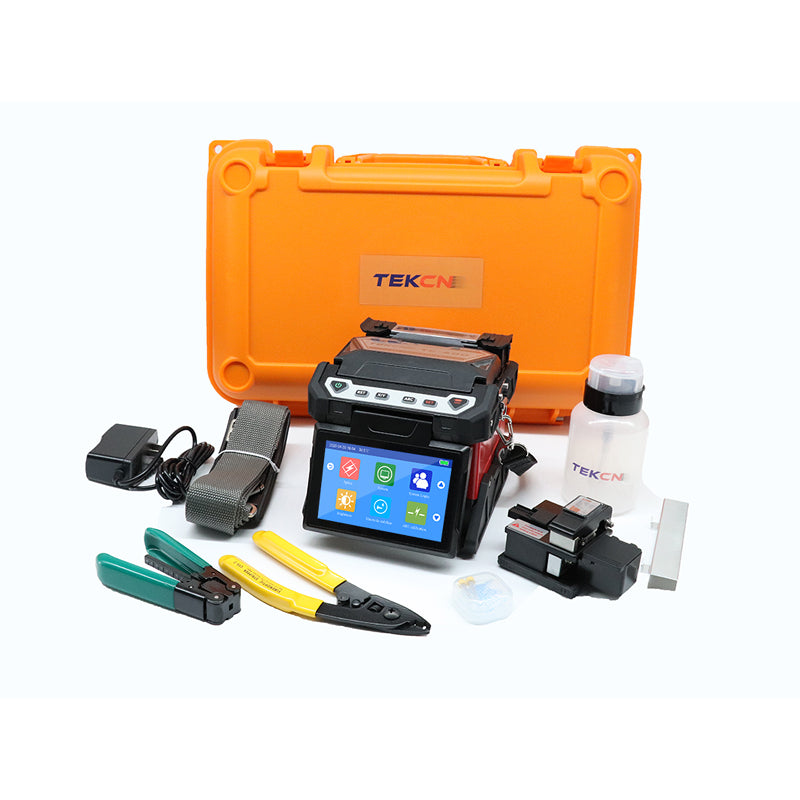

Package includes:? - standard package with accessories,? in carton.?
