Best Fttx fusion splicer TEKCN Super X Fusion Splicer
Best Fttx fusion splicer TEKCN Super X Fusion Splicer
Couldn't load pickup availability
Optical fibre splicing TEKCN Super X FTTx Fusion Splicer? ?

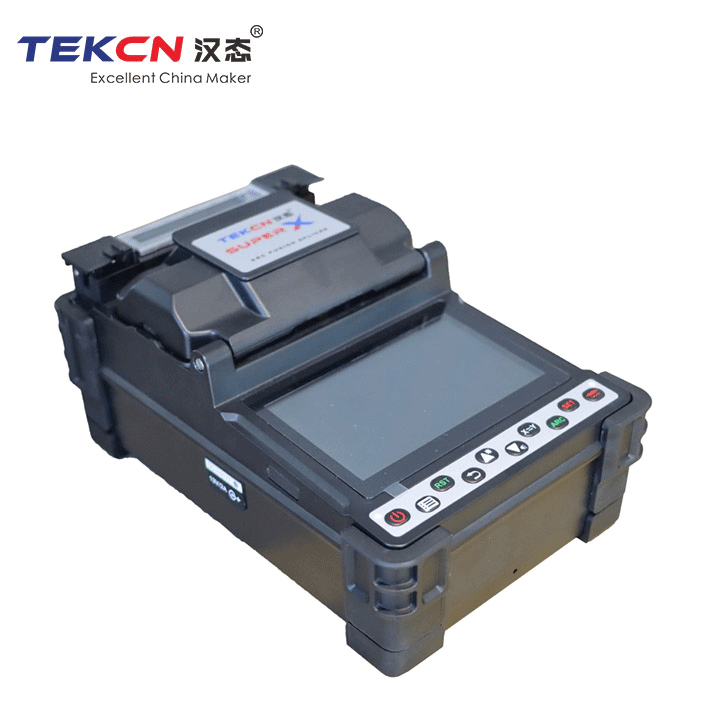

TEKCN Super X is a high-performance, high-quality, and cost-effective cladding alignment single core fiber fusion splicer. It features a mini handheld design, integrated buttons and touch screen, simple operation, low energy consumption, and can meet all the requirements of FTTx project.
Super X fusion splicer?summarized
¡ô7s splicing, 15s heating
¡ô4 motors PAS alignment
¡ôDesigned for FTTX / CATV
¡ô300X single axis view (X or Y)
¡ô4000mAh large capacity battery, supports 240 splice and heat cycles
Highlights for?Super X?fusion splicer
?

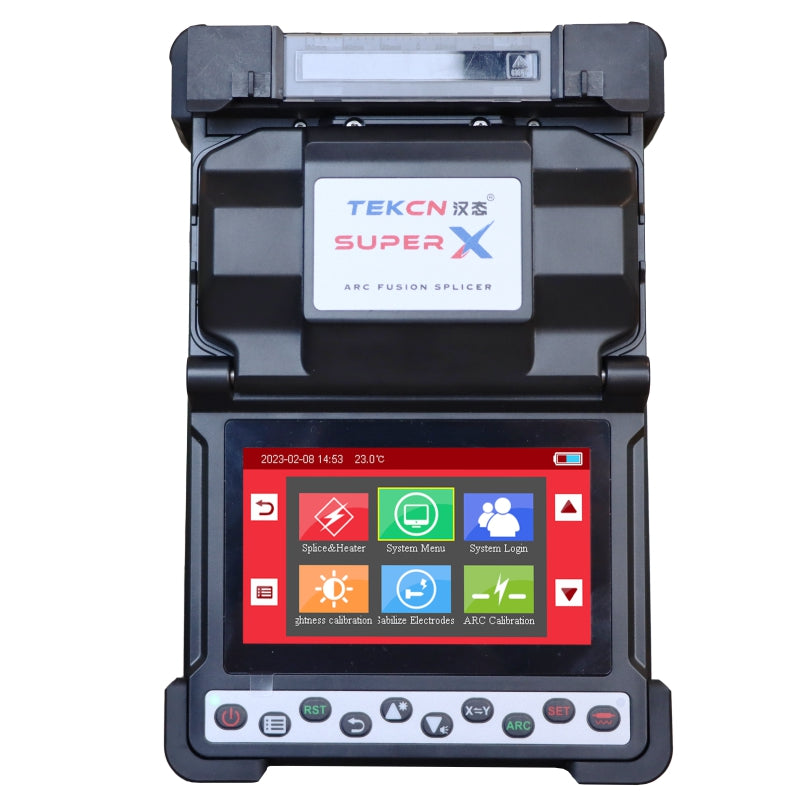

Exclusive UI design
?
Double V-groove
¡ôDouble V-groove can help to fusion the fiber even the worker didn¡¯t put the fiber on the bottom of the V-groove.
¡ôThe worker can use directly without skill or experience.
¡ôMake your work faster and more efficient.
High electordes discharge control

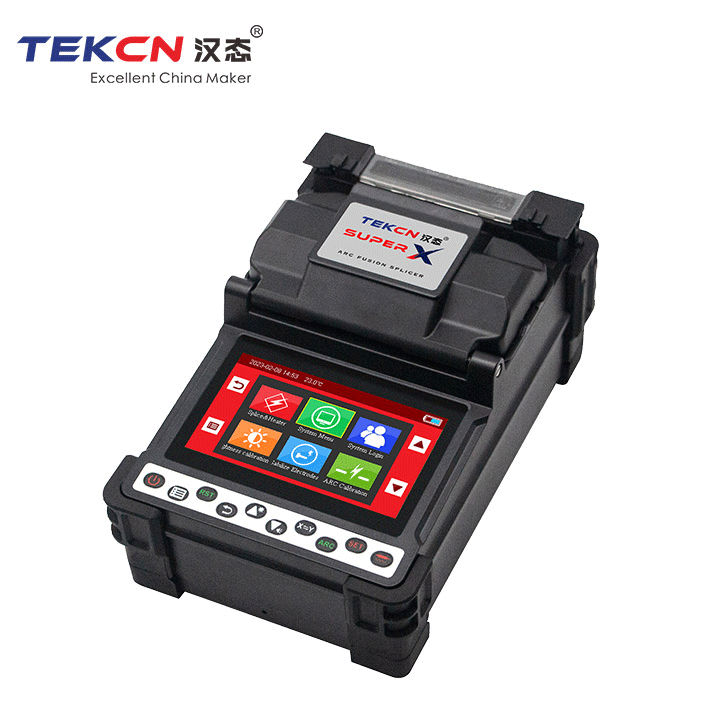

Button+touch designed Easy to operate
?
ID electrodes
- Anti-counterfeit QR code
- Original electrodes ensures best ARC results
- Electrodes life ¡Ý5000 discharges
?
Designed for use in harsh environments
-
Waterproof, Dustproof, Windproof, Anti-shock
-
?
ACCOMPLISHMENTS
- The first Chinese brand that has won the real core to core, 5G fiber (G654) and ribbon fiber fusion splicer bid in China telecom.
- Passed the strict testing of projects in different countries.
- Over 5000m high altitude testing
- Low temperature testing in - 40¡æ.
- Real core to core testing Automatically identify?fiber types.
Specification:
|
Size |
208x137x102(mm), 1.1kg, 1.36kg with battery |
| Fiber Alignment |
4 motor PAS alignment |
| Fiber Type |
Single fiber |
| Fiber Holder |
3 in 1?multifunctional fiber holder, compatible with all types of optical fibers such as bare fiber, drop cable, jumper/patch cord, pigtail etc |
| Applicable Fiber | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-TG.655), BI(ITU-T G.657) |
| Fiber clading diameter | 80-150?(¦Ìm) |
| Fiber?Coating diameter | 100-1000?(¦Ìm) |
| Cleave Length |
8-16 mm |
| Splice mode | Total 100 modes, support self-defined modes and parameters |
| Splicing time | 7s?(SM Fast) |
| Heating mode | Total 20 modes, support self-defined modes and parameters |
| Heating time | 15s |
|
Application protection sleeve |
10-60mm |
| Splice image storage | Max. 300?(Automatic Loop Storage) |
| Splice result storage | Max. 10000?(Automatic Loop Storage) |
| Average splicing loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI 0.02dB (?ITU-T standard) |
| Return loss | £¾60dB |
| Loss estimation mode | High precision loss estimation |
| Fiber tensile test force | 2N |
| Display | 4.3 inch?480x272 pixels?display, with touch screen |
| Visual system | X and Y dual view display 130X on the same screen; X or Y single view independent display at 300x magnification |
| Connection port | high speed USB port |
| Electrodes life | Typical 5000 splices |
| Power supply | AC100-240V, 50/60Hz |
| Battery | 4000mAh high-capacity battery, supporting continuous splicing and heating for more than 240 times; Standard charging time of 3 hours (2 hours to charge to 80% ) |
| Operation condition? |
Altitude: 0-5000m, Temperature: -20 to 50¡æ Humidity: 0-95%RH, Max. wind 15m/sec |
| Storage condition |
Temperature: -40 to 80¡æ (Battery:?-10 to 40¡æ?) Humidity: 0-95%RH |
?
?
