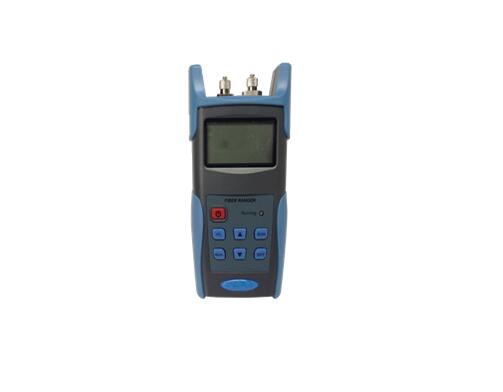

HSV-2400 OPTICAL FIBER RANGER
HSV-2400 OPTICAL FIBER RANGER
Couldn't load pickup availability
Description
HSV-2400 Optical Fiber Ranger is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysissoftware, which enables the HSV-2400 fiber ranger detect fiber faults
location more accurate and easy.
?
Features
l???Portable, rugged, lightweight; Easy to use.
l???More accurate testing results and better repeatability.
l???Up to 8 fiber faults can be detected in each measurement.
l???Automatic Pulse Width Control design to ensure a convenientoperation.
l???Easy to identify the faults location.
l???Built-in visual fault locator (VFL), conveniently to find the faultsin dead zone.
l???Dust, water and shock proof, designed for field use
l???Long battery life, up to 5000 measurements operation
?
Specifications
|
Model |
HSV-2400 |
|
|
Operating Wavelength |
1550nm£¨1310nm Optional£© |
|
|
Fiber Type |
9/125um SM Fiber |
|
|
Optical Connector Type |
FC/PC |
|
|
Detector Type |
InGaAs |
|
|
Peak Power of laser |
¡Ý60mW |
|
|
Max. Displaying Distance |
Reflection Event |
60km (¡Ý1dB) |
|
Non-reflection Event |
20km (¡Ý2.5dB) |
|
|
Measurement Unit |
m |
|
|
Reflection Event Dead Zone |
15m |
|
|
Distance Accuracy£¨Reflection Event£© |
¡À£¨2m+2*10£¨-4£©*Distance£© |
|
|
Wavelength of VFL Option |
650nm |
|
|
Output Power of VFL Option |
>=1mW |
|
|
Power Supply |
Alkaline Battery (3pcs AA 4.5V Batteries) |
|
|
Battery Operating Time |
¡Ý5000 measurements |
|
|
Working Temperature |
-5~40¡æ |
|
|
Storage Temperature |
-10~60¡æ |
|
|
Humidity |
0~85%£¨Non-condensation£© |
|
|
Dimensions |
190*100*50mm |
|
|
Weight£¨g£© |
450 |
|
