?Inno View 5 Core Alignment Fiber Fusion Splicer
INNO Instrument View 5 Fusion Splicer View 5 splicing machine
$3,399.00
Sale price
$3,399.00
Regular price
$4,699.00
Shipping calculated at checkout.

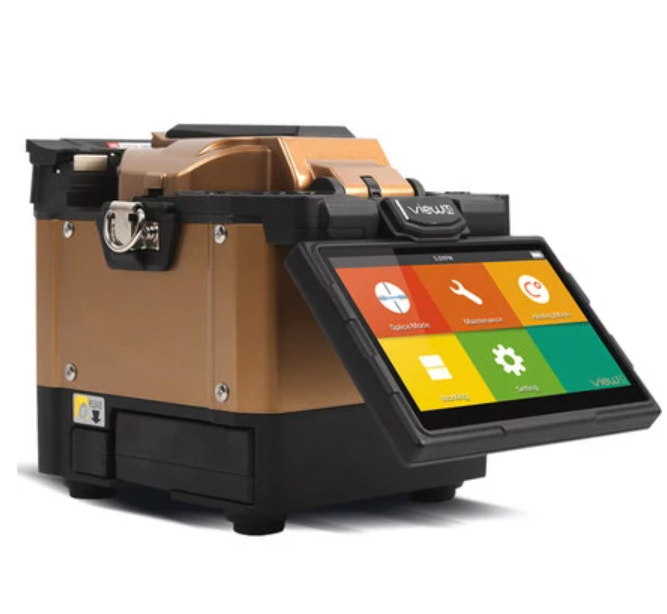

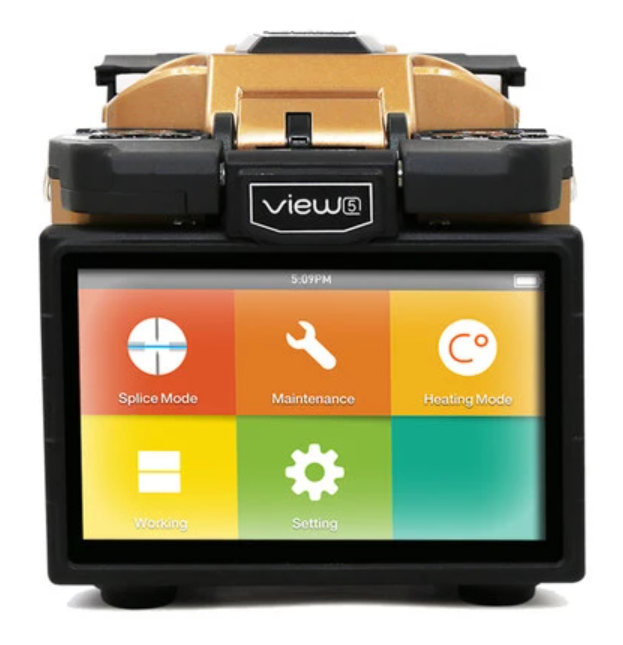

?Inno View 5 Core Alignment Fiber Fusion Splicer
View 5, a core-alignment splicer with the world¡¯s highest fiber image magnification rate, is the most dependable fusion splicer in the market. View 5¡¯s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world¡¯s highest magnification of 520x. Also View 5¡¯s compatibility with SOC (Splice-On-Connectors) will bring satisfactory experiences to users in FTTx field. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 5 is the new industry standard of core-alignment splicer in the telecommunications industry.
Double Tapping
By double-tapping the screen, users can zoom in the fiber image to the industry¡¯s highest magnification of 520x. Fiber condition can be easily checked with unaided eyes.
Features:
- Core Alignment Splicing Method with DACAS (Digital Analysis Core Alignment System)
- The Highest Magnification and Resolution
- 5¡± Color LCD Touch Screen
- Double Tapping (Zoom in & out)
- Detachable SOC Holder and Heating Oven
- 3 Bright LEDs for Dark Environment
- Ceramic Clamp for Improved Durability
Specifications:
| Dimension | 147H x 130W x 155D mm |
| Weight | 2.21KG (with battery) / 1.85KG (without battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber / Cable | 0.25~3.0 mm / Indoor Cable |
| Cleaved Length | Diameter: 0.125~1 mm / Cleave Length: 8~16 mm |
| Cladding Diameter | 80~150 ¦Ìm |
| Splicing Mode | Max 128 modes |
| Heating Mode | Max 32 modes |
| Typical Splice Loss | SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB / G.657: 0.02dB(ITU-T Standard) |
| Return Loss | >>60dB |
| Lighting | 3 White LEDs |
| Splicing Time | Quick mode : 7 sec / Auto mode : 9 sec |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 20~60 mm |
| Heating Time | FP-03 typical heating time: 13 sec |
| Results Storage | The last 2000 results |
| Tension Test | 1.96~2.25N |
| Operating Condition | Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50¡ãC, Max Wind 15m/s |
| Storage Condition | 0~95% relative humidity, -40~80¡ãC |
| Display | 90¡ã bi-directional view, 5.0¡± Color High Resolution Display |
| Fiber View & Magnification | X, Y, XY, X/Y : 520X Magnification |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| No. of Splice / Heating with Battery | 4200mAh Battery Capacity, Typical 170 times (Splice+Heat) |
| Operating Methods |
Button / Touch screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 3500 arcs, can be extended by using an electrode grinder |
| Terminal | USB2.0 / MINI USB |
?
Standard packing Included:
-
1.?View 5 Fusion Splicer
2.?V7?High Precision Cleaver
3.?VFH-40 / FH-SOC Fiber Holder
4.?JS-180300 AC Adapter
5.?CG-22 Cooling Tray
6.?E-50 Electrodes
7.?Manual CD
8.?LBT-40 Battery Pack
9.?ACC-25 Power Cable
10.?CJ-11 Cigarette Light Cable
11.?NBX-35 Carrying Case
