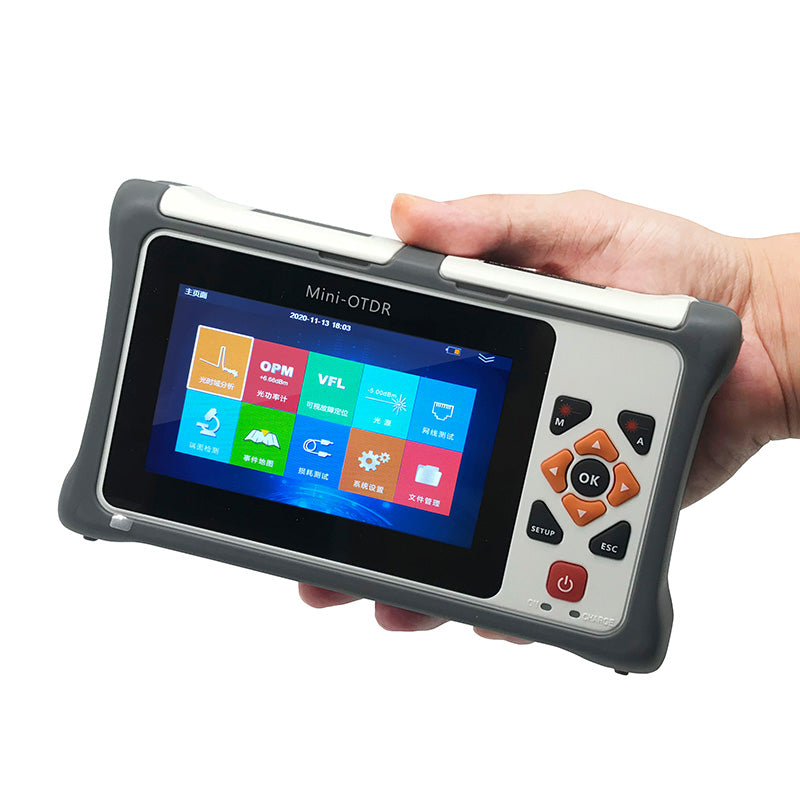

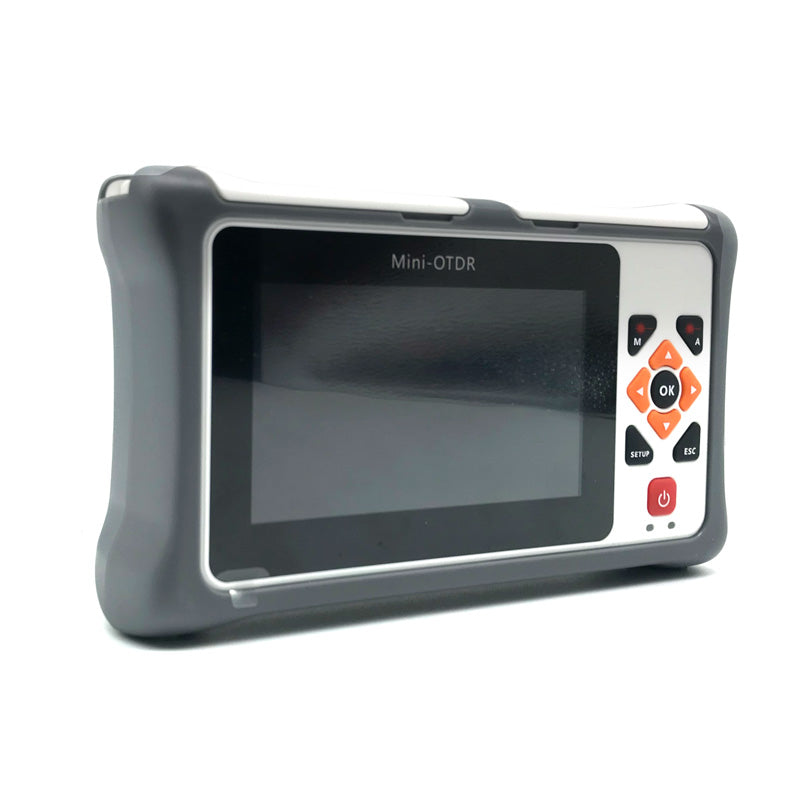

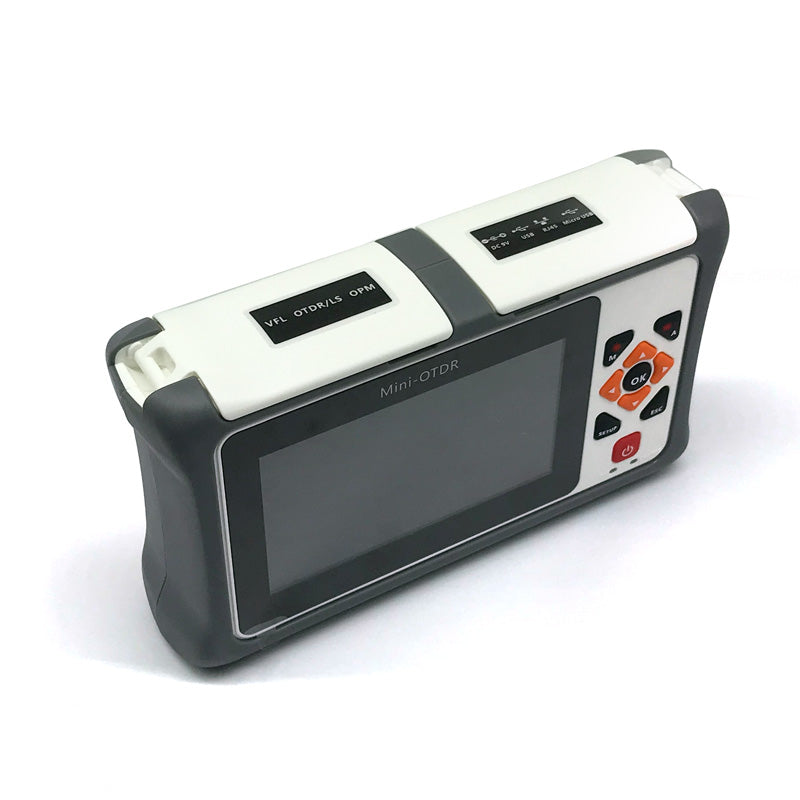

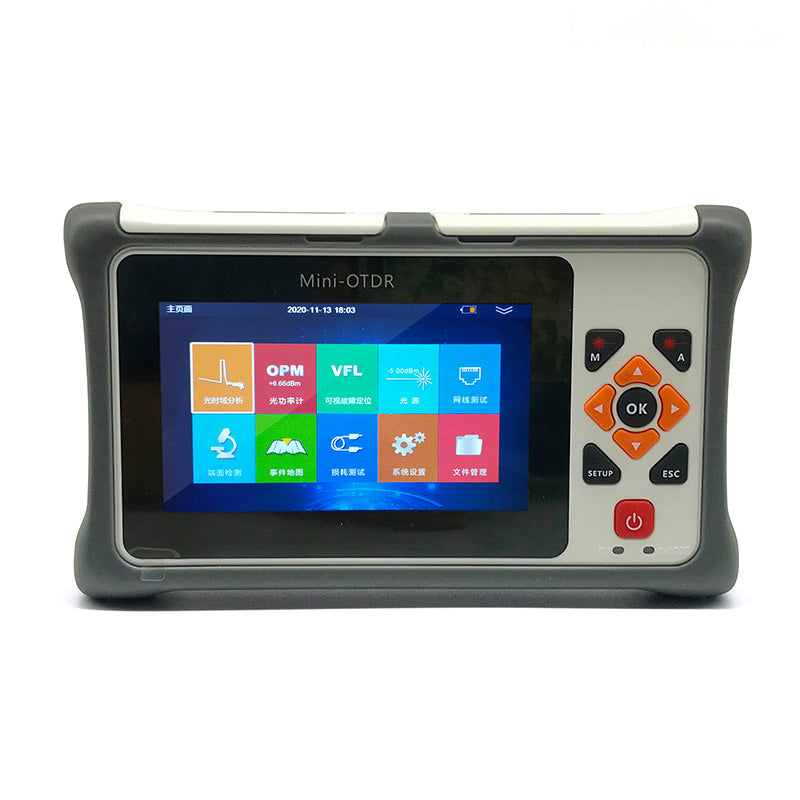

MINI OTDR
MINI OTDR
Couldn't load pickup availability
?Features
? OTDR, OPM, VFL, LS, Network Cable Test, Fiber Inspection, Event Map, Loss Test, All?in One OTDR??
??Plate type tempered glass panel, don't worry about screen scratch
??Support horizontal screen and vertical screen, for different?usage habit
??Support power bank charging,??
??Support Screen capture
|
wavelength(nm) |
?1310/1550 |
|
Dynamic Range(dB) |
22/20 |
|
Measuring range |
80km |
| Sampling resolution |
Minimum: 0.2m |
|
The sampling point |
64,000?point |
|
linearity |
¡Ü0.05dB/dB |
|
Loss threshold |
0.01dB |
|
Loss resolution |
0.001dB |
|
Range resolution |
0.01m |
|
Range accuracy |
¡À(0.5m+Range¡Á3¡Á10-5+Sampling resolution)?£¨Excluding refractive index error£© |
|
Memory |
>100000 |
|
VFL |
10mW£¬CW/2Hz |
|

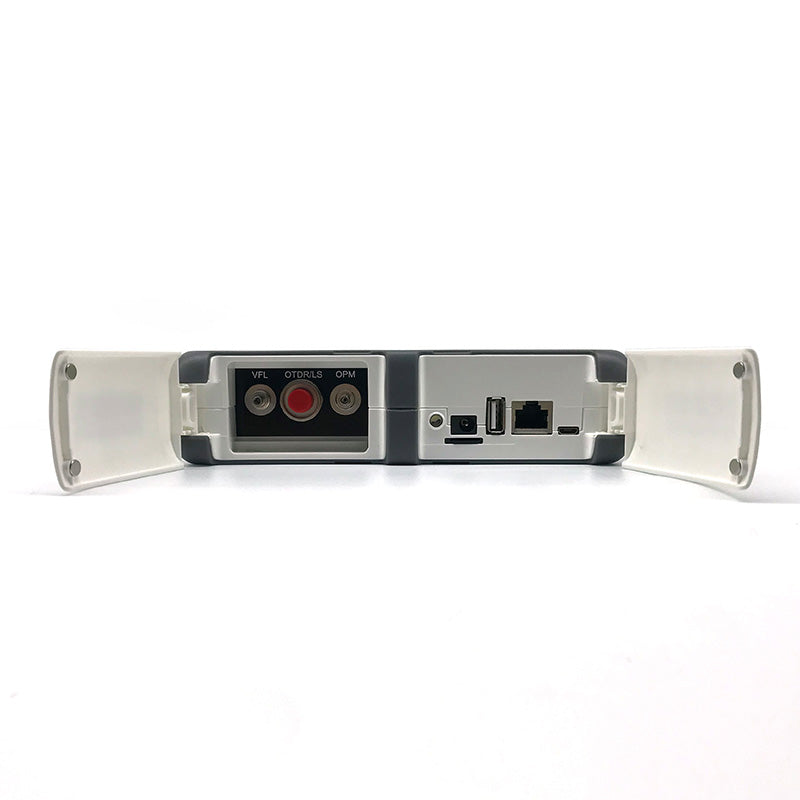

Data interface |
2¸öUSB£¨Type A¡Á1£¬Micro usb¡Á1£©£¬SD card |
|
Screen |
4.3-inch TFT-LCD (Standard distribution capacity touch screen) |
|
Battery |
3.7V/5200mAh |
|
temperature |
Working temperature£º-10¡æ~+55¡棻Storage temperature£º-20¡æ~+80¡æ |
|
humidity |
¡Ü95%£¨No condensation£© |
|
Size/Weight |
175x105x45mm?/?0.56kg£¨Contain the battery£© |
|
Attachment |
Power adapter, lithium battery, FC adaptor, USB cable, quick guide, portable package |
|
OPM |
Type A£º+10dBm~-70dBm;Type B£º+26dBm~-50dBm |
|
LS |
The output power£º-5dBm£¬Modulation frequency£ºCW/270Hz/1KHz/2KHz |
|
Network Cable test |
Support network wire sequence testing and wire alignment |
?
