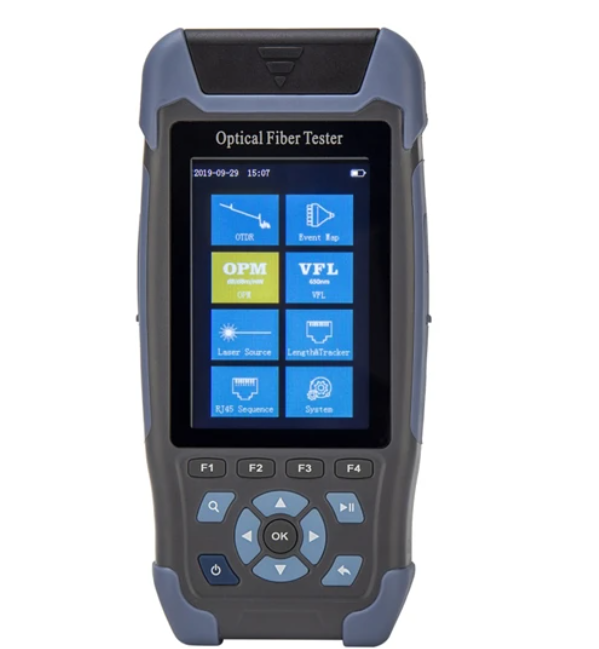

OTDR TEKCN TC3200D Mini OTDR 1310/1550nm 24/22dB with power meter & light source & VFL
1310/1550nm /22/24db / APC/SC
$418.99
Sale price
$418.99
Regular price
$799.00
Skip to product information
OTDR TEKCN TC3200D Mini OTDR 1310/1550nm 24/22dB with power meter & light source & VFL
$418.99
Sale price
$418.99
Regular price
$799.00
Shipping calculated at checkout.
TEKCN TC-3200 Mini-Pro OTDR with power meter & light source & VFL
The TC300 Optical Time Domain Reflectometer is a high-performance, multi-functional test instrument designed for the FTTx network.
Functions:
OTDR/EVENT MAP/OPM/LS/VFL/RJ45 Sequence/RJ45 Cable Tracker(Additional purchase detector)/RJ45?Line length/Flashlight
Technical?Specifications
|
TEKCN Mini-Pro OTDR |
||
|
Model |
TC3200S |
TC3200D |
|
Wavelength |
1550nm¡À20nm |
1310nm/1550nm¡À20nm |
|
Fiber Type |
G.652 |
|
|
Dynamic Range |
22dB |
24dB/22dB |
|
Event Blind Zone |
3m |
|
|
ATT Blind Zone |
8m |
|
|
Test Range |
500m~60km |
|
|
Pulse Width |
3ns~10us |
|
|
Ranging accuracy |
¡À£¨1m+ Sampling interval +0.005£¥¡ÁTest distance£© |
|
|
Loss accuracy |
¡À0.05dB/dB |
|
|
Sampling Points |
16k~128k |
|
|
Sampling resolution |
0.05m~8m |
|
|
Reflection accuracy |
¡À3dB |
|
|
Data Storage |
Internal£º¡Ý600£»External£ºTF Card |
|
|
Laser Safety Level |
Class ¢ò |
|
|
File format |
SOR Standard file format |
|
|
Connector |
FC/UPC£¨Interchangeable SC¡¢ST£© |
|
|
OPM |
||
|
Wave Range |
800nm~1700nm |
|
|
Interface Type |
Universal Joint FC/SC/ST |
|
|
Test Range |
-50dBm¡«+26dBm |
|
|
Uncertainty |
¡À5% |
|
|
Frequency Identification |
CW/270/330/1k/2kHz |
|
|
Calibration wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|
|
LS |
||
|
LD Type |
FP-LD |
|
|
Wavelength |
1550nm¡À20nm |
1310nm/1550nm¡À20nm |
|
Output Power |
¡Ý-5dBm |
|
|
Modulation Frequency |
270/330/1k/2kHz |
|
|
Stability |
CW£¬¡À0.5dB/15min £¨Test after 15 minutes of preheating£© |
|
|
Connector |
FC/UPC£¨Interchangeable SC¡¢ST£© |
|
|
VFL |
||
|
Wavelength |
650nm¡À20nm |
|
|
Output Power |
¡Ý10mW |
|
|
Mode |
CW/1Hz/2Hz |
|
|
Connector |
FC/SC/ST |
|
|
RJ45 Cable Length Measurement |
||
|
Test Range |
300m |
|
|
Other Parameters |
||
|
Display |
3.5 inch Color LCD |
|
|
Data Interface |
Micro USB |
|
|
External storage |
TF Card |
|
|
Power Supply |
Polymer Li-Battery£º3.7V£¬4000mAh Adapter£º5VDC£¬2A |
|
|
Battery Life |
Standby£¾20h£»Measuring time£¾12h |
|
|
Operating Temperature |
-10¡桫+50¡æ |
|
|
Storage Temperature |
-40¡桫+70¡æ |
|
|
Relative Humidity |
0¡«95£¥Non Condensing |
|
|
Size |
173mm¡Á82mm¡Á37mm |
|
|
Weight |
¡Ü350g |
|
|
Functions: OTDR/EVENT MAP/OPM/LS/VFL/RJ45 Sequence/RJ45 Cable Tracker(Additional purchase detector)/RJ45 Line length/Flashlight |
||
Note:
1Test temperature is 25¡æ+2¡æ, maximum pulse width, the average time is more than 3 minutes.
2Test conditions of Event Blind Zone are minimum range, minimum pulse width, reflection loss of optical fiber end (> 45dB), typical value.
?
--------------------------------------------------------------------------------------------------
