TEKCN TC-600M Ribbon Fusion Splicer
TEKCN TC-600M Ribbon Fusion Splicer
Couldn't load pickup availability

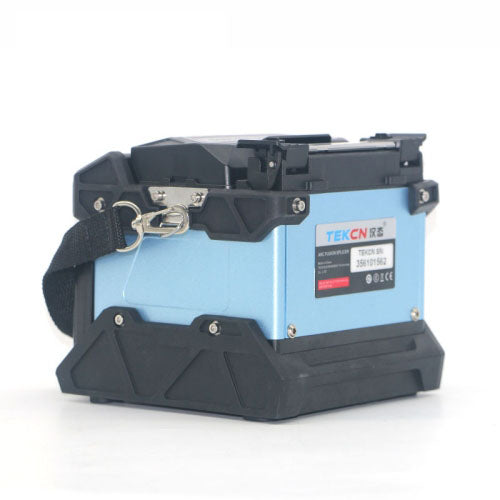

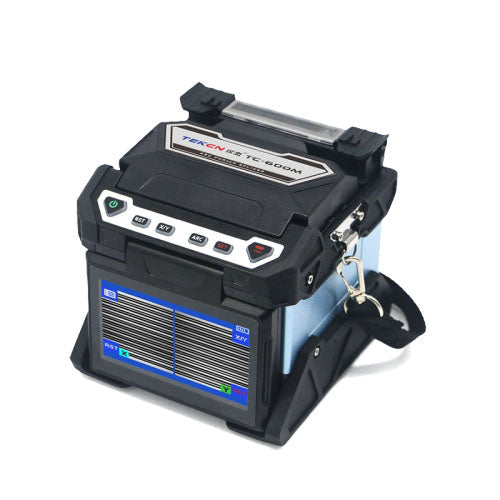

TEKCN TC-600M?2-12 cores ribbon fiber fusion splicer
TC-600M ribbon machine is the first Chinese brand that has won the ribbon fiber fusion splicer bid in China telecom.
TC-600M fusion splicer?summarized
¡ô2-12 cores ribbon fiber splicing
¡ô16s splicing, 35s heating
¡ôDesigned for ribbon fiber
¡ôBattery capacity: 120 times splicing and heating
Highlights for?TC-600M fusion splicer

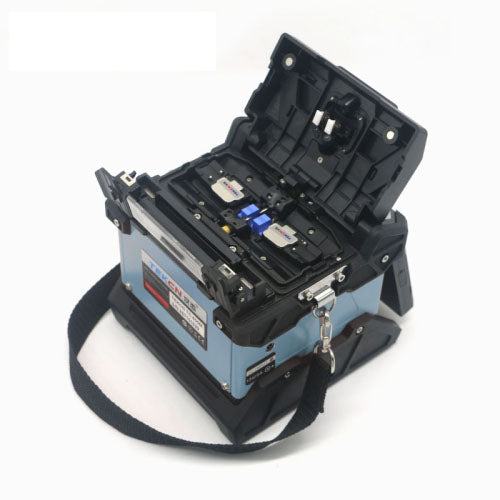

High precision V-groove
¡ôHigh precision V-groove can?enable high-precision alignment the both side of ribbon optical fibers, ensure the quality of fusion loss.
High electordes discharge control
Button+touch designed Easy to operate
?
ID electrodes
- Anti-counterfeit QR code
- Original electrodes ensures best ARC results
- Electrodes life ¡Ý5000 discharges
Designed for use in harsh environments
- Waterproof, Dustproof, Windproof, Anti-shock
ACCOMPLISHMENTS
- Passed the strict testing of projects in different countries.
- Over 5000m high altitude testing
- Low temperature testing in - 40¡æ.
-
Real core to core testing Automatically identify?fiber types.
Specification:
|
Size |
133x144x133(mm) |
| Fiber Type |
Single fiber &?2 to 12 cores ribbon fiber |
| ?Fiber Holder | ?Standard kit with 8 cores and 12 cores fiber holder, 1/2/4/6 cores fiber holder is option? |
| Applicable Fiber | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-TG.655), BI(ITU-T G.657) |
| Fiber alignment | High-precision cladding alignment |
| Fiber diameter | Cladding diameter:?125?(¦Ìm),?Coating(single)?diameter:?160¦Ìm-3mm, ribbon 250¦Ìm-400¦Ìm |
| Cleave Length |
250¦Ìm coating diameter 9-9.5mm |
| Splice mode | Total 100 modes, support self-defined modes and parameters |
| Splicing time | 16s?(SM Fast) |
| Heating mode | Total 20 modes, support self-defined modes and parameters |
| Heating time | 35s |
|
Application protection sleeve |
25-60mm |
| Splice image storage | Max. 800?(Automatic Loop Storage) |
| Splice result storage | Max. 10000?(Automatic Loop Storage) |
| Average splicing loss | SM: 0.05dB, MM: 0.03dB, DS: 0.08dB, NZ/NZDS: 0.08dB, BI 0.05dB (?ITU-T standard) |
| Return loss | £¾60dB |
| Fiber tensile test force | 2N |
| Display | 4.3 inch?800x480 pixels high resolution?display, with touch screen |
| Visual system | X and Y dual view display on the same screen; X or Y single view independent display at 24x magnification |
| Connection port | MicroSD and high speed USB port |
| Electrodes life | Typical 2000 splices |
| Power supply | AC100-240V, 50/60Hz |
| Battery | 5400mAh high-capacity battery, supporting continuous splicing and heating for more than 120 times; Standard charging time of 4 hours (3 hours to charge to 80% ) |
| Operation condition? |
Altitude: 0-3800m, Temperature: -20 to 50¡æ Humidity: 0-95%RH, Max. wind 15m/sec |
| Storage condition |
Temperature: -40 to 80¡æ (Battery:?-10 to 40¡æ?) Humidity: 0-95%RH |

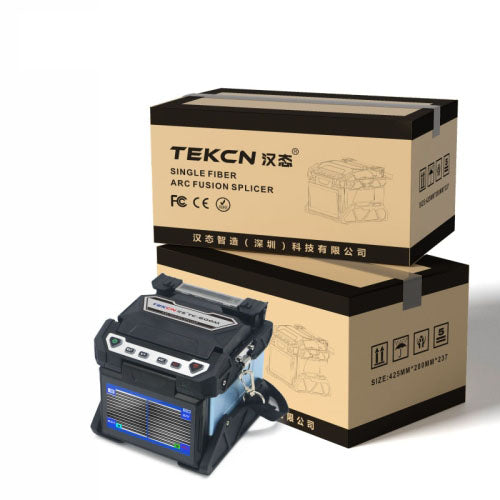

Package
