What Is a Fusion Splicer?
A fusion splicer is a precision instrument that permanently joins two optical fibers by melting their ends together using an electric arc. The result is a low-loss, high-strength splice that maintains signal integrity across long fiber runs. Fusion splicing is the gold standard for FTTH, FTTx, and telecom backbone installations.
Core Alignment vs. Cladding Alignment: Which Do You Need?
This is the most important decision when selecting a fusion splicer.
| Feature | Core Alignment | Cladding Alignment |
|---|---|---|
| Splice Loss | < 0.02 dB (typical) | < 0.1 dB (typical) |
| Best For | Telecom, long-haul, high-density FTTH | Short-run FTTH, drop cables |
| Price Range | Higher | More affordable |
| Speed | Slightly slower | Faster |
Recommendation: For professional FTTH contractors handling trunk lines or high-density deployments, core alignment is the right choice. For last-mile drop cable work, a cladding alignment splicer offers excellent value.
5 Key Specs to Evaluate
1. Splice Loss
Look for ≤ 0.02 dB for single-mode fiber. Higher loss means signal degradation over distance.
2. Splicing Speed
Top models complete a splice in 7–9 seconds. Faster throughput matters on large-scale deployments.
3. Battery Life
Field work demands long battery cycles. Look for 200+ splices per charge. Some models like the TEKCN TC-600 offer extended battery packs for all-day operation.
4. Heating Time for Splice Protectors
A fast heat shrink oven (≤ 15 seconds) keeps your workflow moving. Combined splice + heat time under 30 seconds is ideal.
5. Dust & Moisture Protection
Field environments are harsh. IP-rated enclosures and wind-resistant arc chambers are essential for outdoor FTTH work.
Top Fusion Splicers for FTTH in 2026
TEKCN TC-600 — Best for Professional Core Alignment
The TC-600 features active core alignment with a high-resolution camera system, delivering consistent splice loss under 0.02 dB. Its rugged build and extended battery make it a top choice for FTTH trunk and feeder cable work.
👉 View TEKCN TC-600 Fusion Splicer

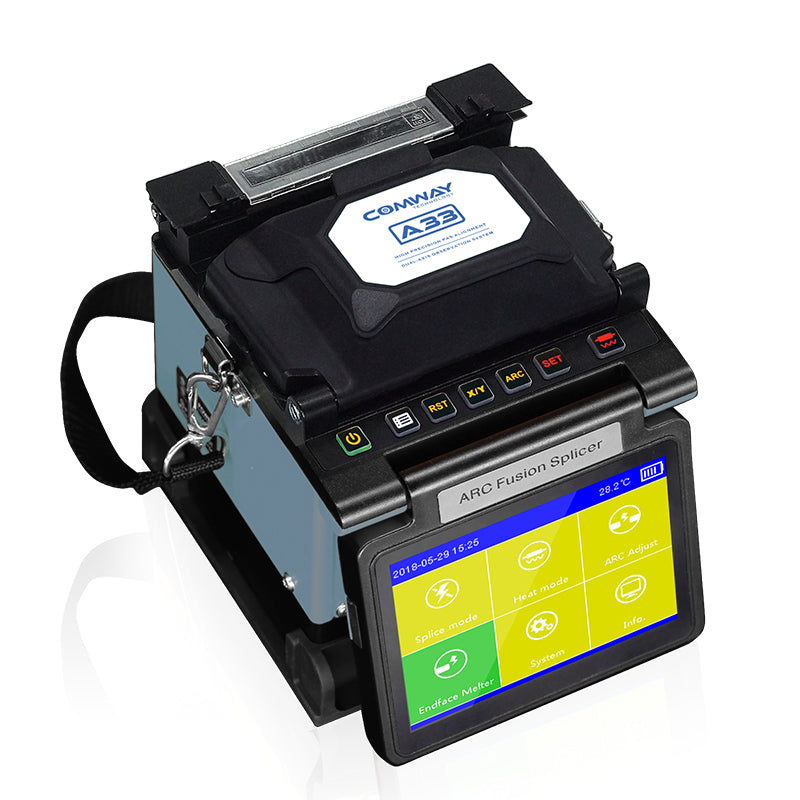

COMWAY A33 — Best Mid-Range FTTH Splicer
The COMWAY A33 balances performance and affordability. With fast splicing cycles and a compact design, it's well-suited for FTTH drop cable installation and smaller contractor teams.
👉 View COMWAY A33 Fusion Splicer
TEKCN TC-400 — Best Budget Core Alignment Splicer
For technicians entering the FTTH market, the TC-400 delivers core alignment precision at an accessible price point — without sacrificing the accuracy needed for professional results.
👉 View TEKCN TC-400 Fusion Splicer
JETFIBER H5 — Best for FTTx Multi-Fiber Work
The JETFIBER H5 is optimized for FTTx environments where speed and reliability across multiple fiber types are critical. Its intuitive interface reduces training time for field crews.
👉 View JETFIBER H5 Fusion Splicer
Frequently Asked Questions
Q: What is the average splice loss for a good fusion splicer?
A: A professional-grade fusion splicer should achieve ≤ 0.02 dB splice loss on single-mode fiber. Anything above 0.05 dB may indicate dirty fiber ends or equipment calibration issues.
Q: How long does a fusion splicer last?
A: With proper maintenance, a quality fusion splicer can last 5–10 years. Electrode replacement is typically needed every 3,000–5,000 splices.
Q: Can I use a fusion splicer for both single-mode and multimode fiber?
A: Yes. Most modern fusion splicers support both SM and MM fiber. Check the spec sheet to confirm compatibility with your fiber type.
Q: What accessories do I need with a fusion splicer?
A: Essential accessories include a fiber cleaver, fiber stripper, isopropyl alcohol wipes, splice protectors, and an optical power meter for loss verification.
Final Checklist Before You Buy
- Core alignment for professional FTTH / cladding for drop cables
- Splice loss ≤ 0.02 dB (SM fiber)
- 200+ splices per battery charge
- Heat shrink oven ≤ 15 seconds
- IP-rated for outdoor field use
- Manufacturer warranty and local support availability
Choosing the right fusion splicer is a long-term investment. Match the tool to your deployment type, verify the specs against your network requirements, and you'll deliver consistent, low-loss splices that stand the test of time.
