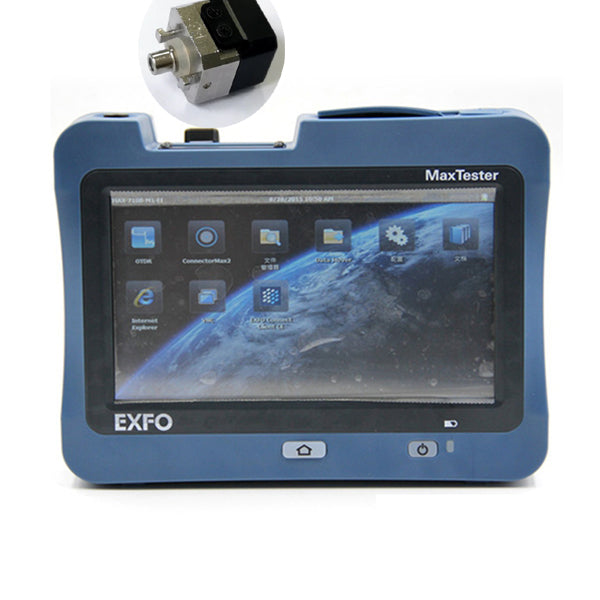

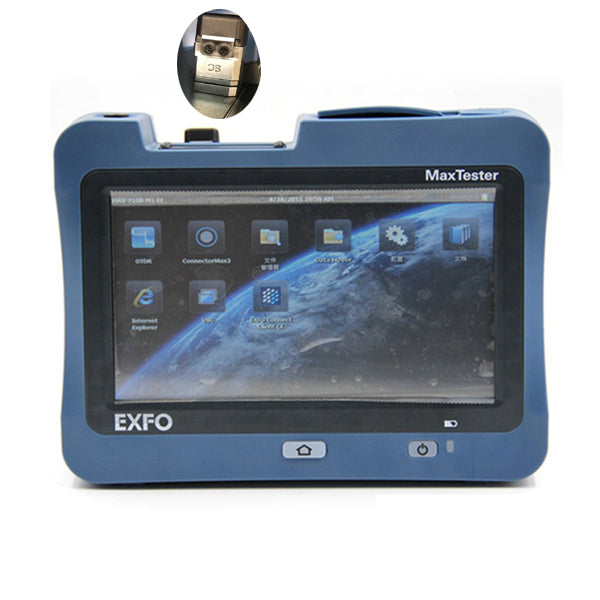

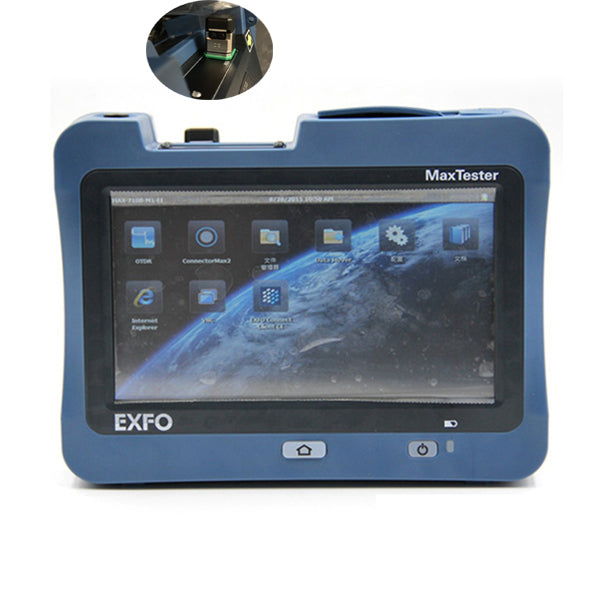

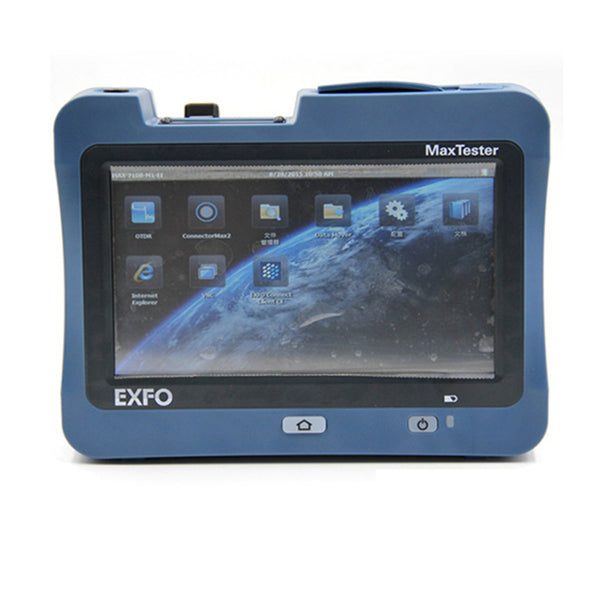

EXFO MaxTester MAX-720C-SM1 OTDR – 1310/1550nm 36/35dB Single-Mode Fiber Tester
The EXFO MaxTester MAX-720C-SM1 is a professional-grade, high-dynamic-range optical time-domain reflectometer (OTDR) designed for demanding telecom and FTTH fiber testing applications. With dual-wavelength testing at 1310nm and 1550nm, a 36/35dB dynamic range, and a testing range of up to 160km, the MAX-720C-SM1 is built for long-haul fiber characterization, backbone network testing, and large-scale FTTH acceptance testing.
Available with SC/APC, FC/APC, SC/UPC, and FC/UPC connector options. Multi-language interface including English, Spanish, and French.
📋 Key Specifications
| Wavelengths | 1310nm / 1550nm (±30nm) |
| Dynamic Range | 36dB (1310nm) / 35dB (1550nm) |
| Distance Range | 0.1 to 160km |
| Event Dead Zone | 1m |
| Attenuation Dead Zone | 4m |
| Loss Resolution | 0.001dB |
| Sampling Points | Up to 256,000 |
| Display | 7-inch outdoor-enhanced touchscreen (800×480 TFT) |
| Battery Life | 12 hours (Telcordia TR-NWT-001138) |
| Storage | 2GB internal (20,000+ OTDR traces) |
| Interfaces | 2× USB 2.0, RJ45 LAN 10/100 Mbit/s |
| Fiber Type | Single-Mode (SM) |
| Connector Options | SC/APC, FC/APC, SC/UPC, FC/UPC |
🏗️ Applications
- Long-haul telecom backbone fiber testing (up to 160km)
- FTTH / FTTB large-scale fiber network acceptance testing
- Fiber optic fault location and characterization
- Splice loss, connector loss, and return loss measurement
- PON / GPON network fiber testing
📦 Package Contents
- 1× EXFO MaxTester MAX-720C-SM1 OTDR (main unit)
- 1× Built-in rechargeable battery
- 1× AC/DC Power Adapter
- 1× Power Cable
- 1× Soft Carry Bag
- 1× Touch Pen
- 1× Calibration Certificate
- 1× User Manual
❓ Frequently Asked Questions
Q: What is the difference between the MAX-720C-SM1 and MAX-715B models?
A: The MAX-720C-SM1 offers a higher dynamic range (36/35dB vs. ~32dB) and longer testing range (160km), making it better suited for long-haul backbone and high-loss network testing. The MAX-715B is optimized for FTTH and shorter-range access network testing.
Q: Which connector type should I choose?
A: Choose SC/APC or FC/APC for GPON/PON FTTH networks. Choose SC/UPC or FC/UPC for standard telecom and enterprise fiber networks. APC and UPC connectors are NOT interchangeable.
Q: Is the MAX-720C-SM1 brand new?
A: Yes. All units we sell are brand new with a 12-month warranty and standard packaging.
Order the EXFO MaxTester MAX-720C-SM1 OTDR today and get worldwide shipping, competitive pricing, and expert support from our fiber optic specialists.
