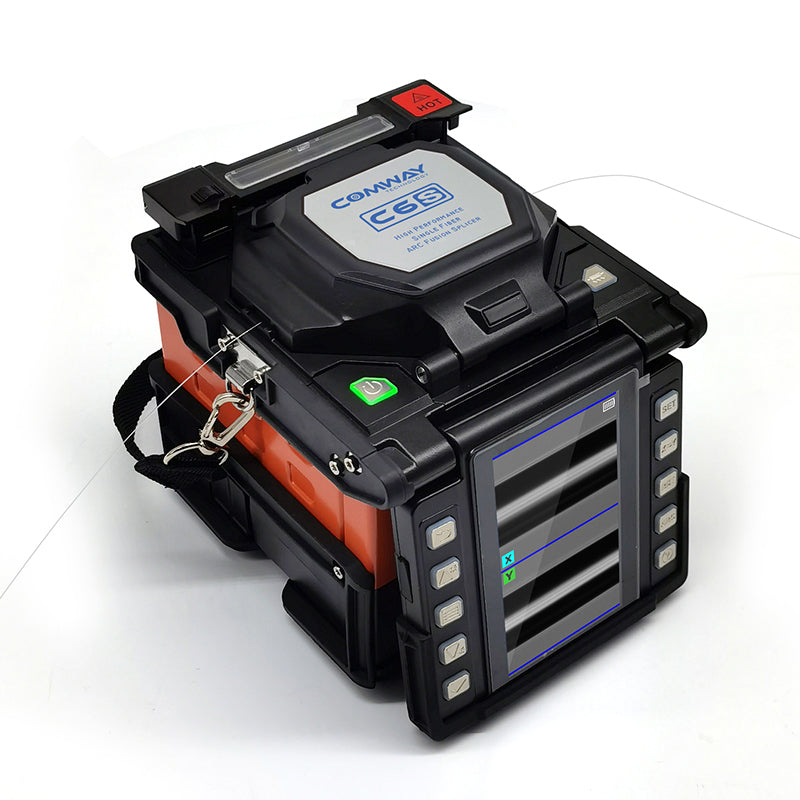

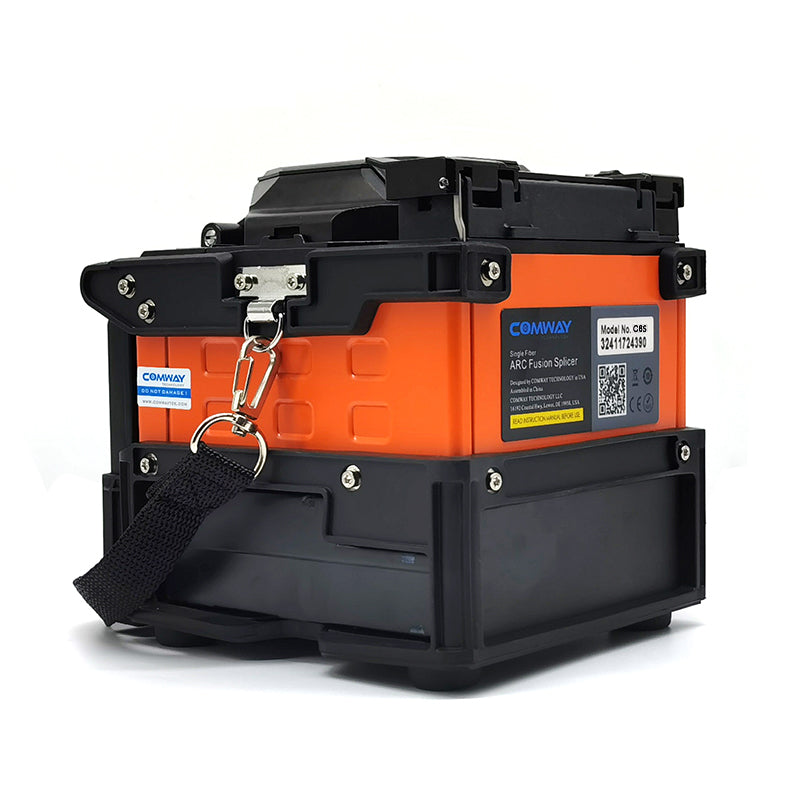

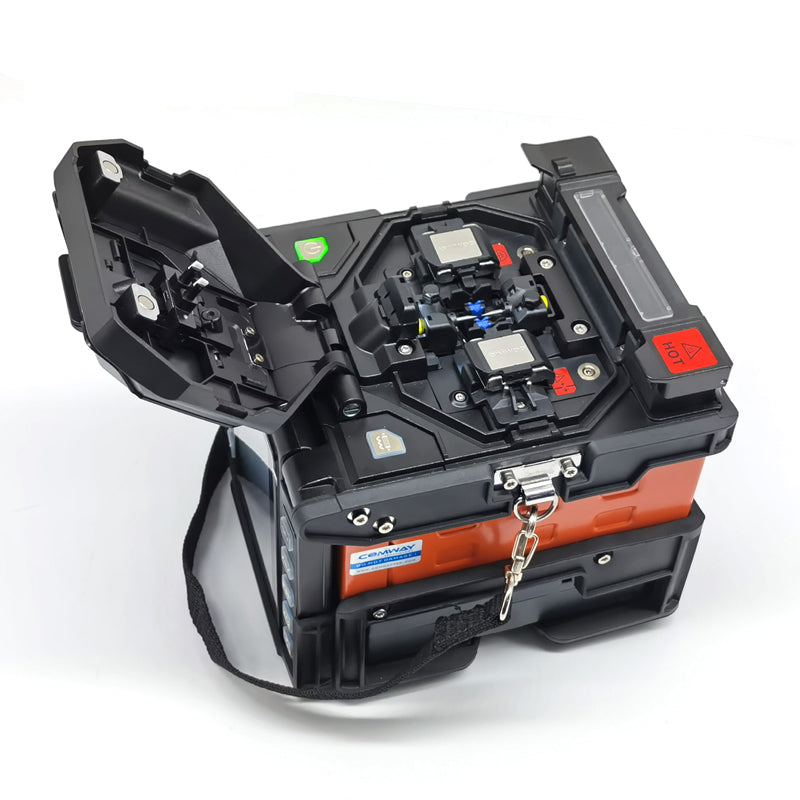

Fusion splicer COMWAY C6S fiber splicing machine
?
?
Feature:
PAS alignment system
Splicing 6 sec., heating 12 sec.
Fast boot technology
More than 350 times splicing and heating
Resist dust, rain, wind, and shock
Fiber type identify, AUTO splicing mode
Easy to change electrode and fiber holder
High speed USB, maintenance via the Internet
PAS alignment system
Splicing 6 sec., heating 12 sec.
Fast boot technology
More than 350 times splicing and heating
Resist dust, rain, wind, and shock
Fiber type identify, AUTO splicing mode
Easy to change electrode and fiber holder
High speed USB, maintenance via the Internet
|
Size & Weight
|
D156¡ÁW135¡ÁH149(mm), 2.0kg without battery, 2.5kg with 7800mAh
|
|
Fiber alignment
|
6 motors core alignment
|
|
Fiber type
|
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
|
|
Splice mode
|
Single fiber
|
|
Fiber diameter
|
Cladding diameter 80~150¦Ìm, coating 100~1000¦Ìm
|
|
Cleave length
|
250¦Ìm cladding diameter 8~16mm,
over 250¦Ìm cladding diameter 16mm |
|
Splicing programs
|
Max. 100
|
|
Splicing cycle time
|
6 sec. SM-SM Fast program,
12 sec. AUTO program |
|
Heating programs
|
Max. 30
|
|
Heating cycle time
|
Adjustable, 25 sec. typical
|
|
Splice protector
|
10 ~ 60mm
|
|
Splice image capture
|
Max. 30
|
|
Splice data storage
|
Max. 3000
|
|
Splice loss
|
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB |
|
Return loss
|
>>60dB
|
|
Loss estination
|
Provided
|
|
Operation condition
|
Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50¡ãC,
Wind velocity up to 15m/s |
|
Storage condition
|
Humidity 0~95%, Temperature -40~+80¡ãC (Battery -10~+40¡ãC)
|
|
Tension
|
1.96~2.25N
|
|

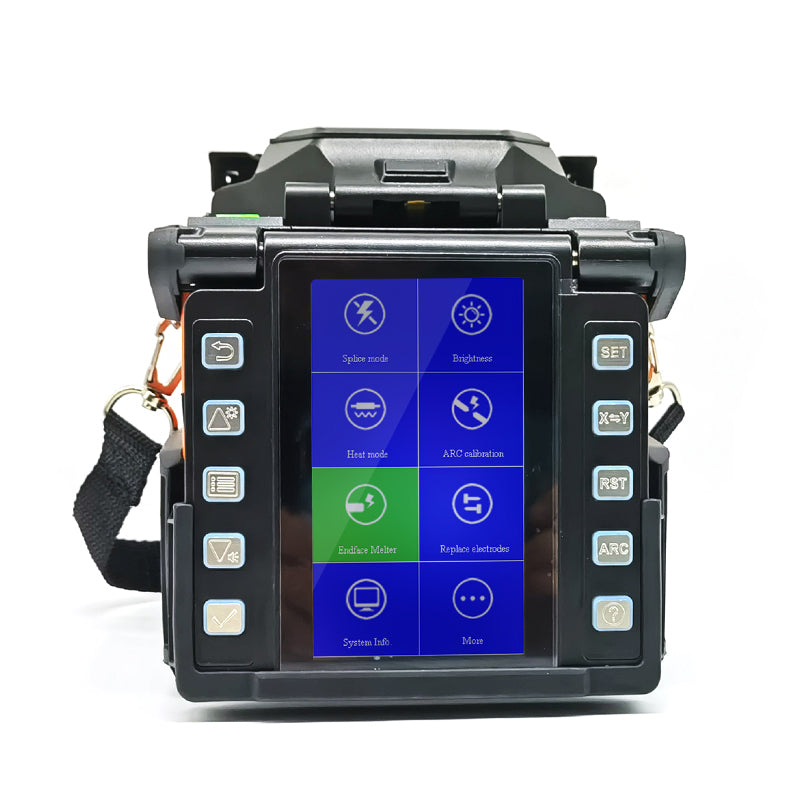

Fiber view
|
Two cameras observation,
4.1 inch color screen |
|
Fiber magnification
|
300x fo X or Y single axis view,
180x for both X&Y dual axis view |
|
Port
|
High speed USB, used for PC software connection and firmware upgrade
|
|
Electrode life
|
50000 arc discharges
|
|
Power supply
|
AC100-240V, 50/60Hz
|
|
Battery module
|
5600mAh High capacity battery,
more than 350 times splicing and heating |
?
