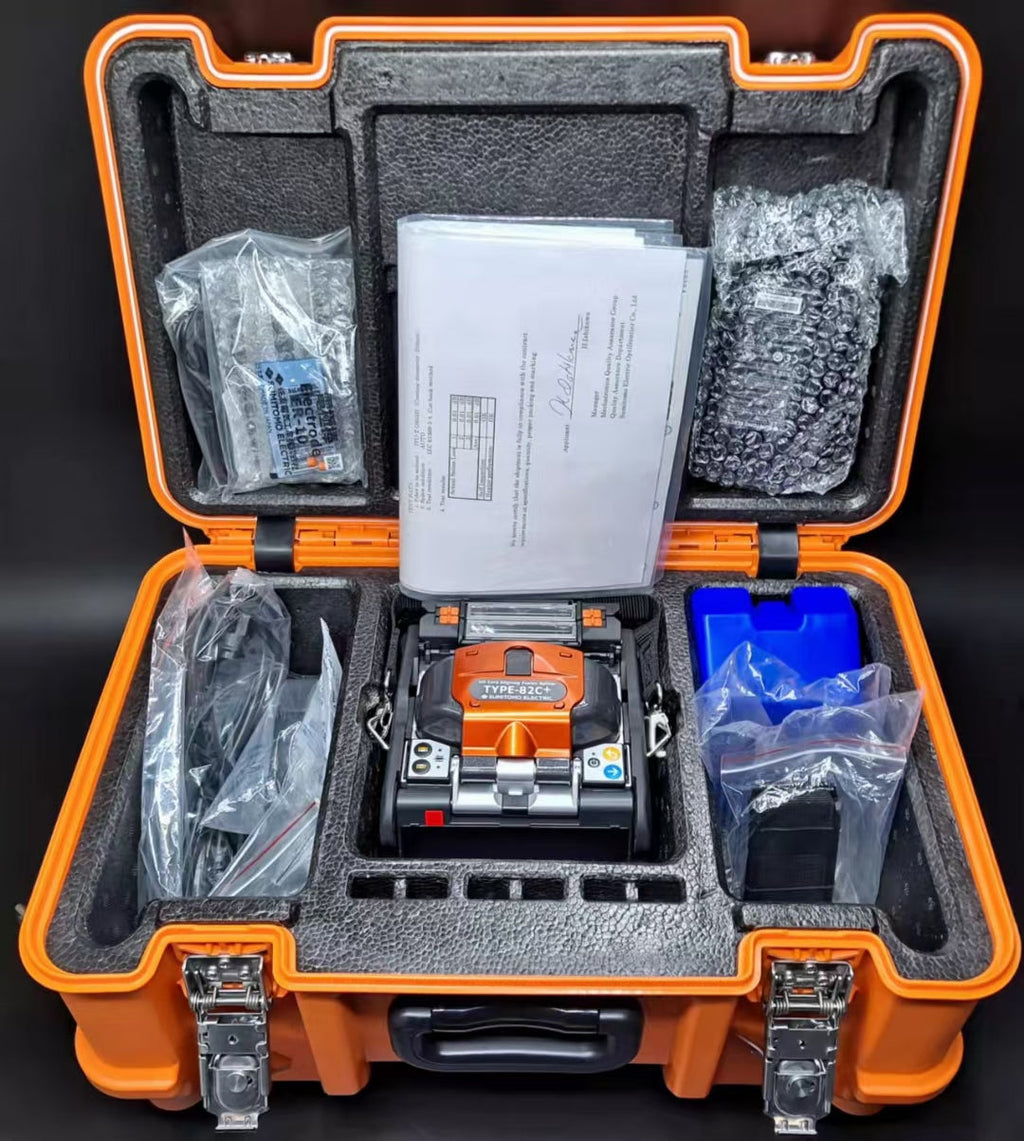

Name: Fusion Splicer Sumitomo Type-82C+ splicing machine
Brand: TEKCN Fusion splicer Store
SKU: type-82c
Price: 5089.00 USD
Availability: InStock

Fusion Splicer Sumitomo Type-82C - TEKCN Fustion Splicer Store

Fusion Splicer Sumitomo Type-82C+ splicing machine

$5,089.00

$5,089.00 $6,900.00

Fusion Splicer Sumitomo Type-82C+ splicing machine

$5,089.00

$5,089.00 $6,900.00

Shipping calculated at checkout.

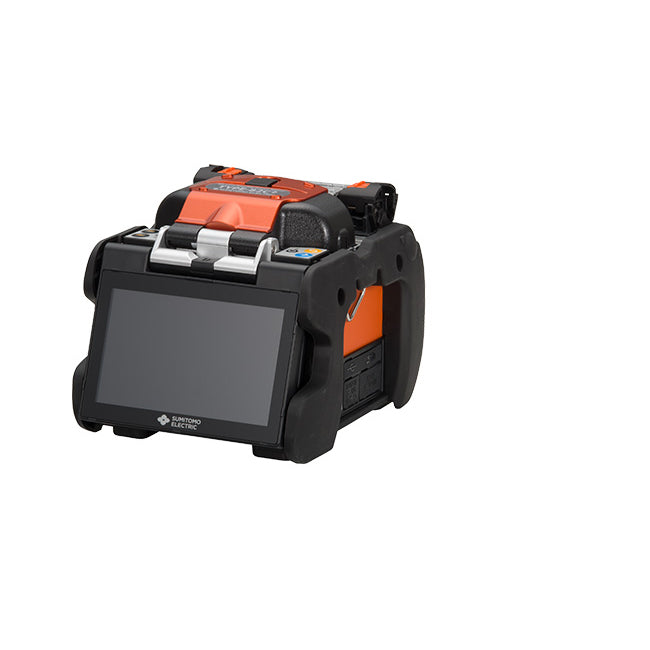

Sumitomo Type-82C+?is a direct core monitoring fusion splicer for ultra fast splicing in every environment.

FEATURES

Ultra fast splicing: 5 sec.
Ultra fast heating: 9 sec.
Automatic fiber identification (SMF, MMF, DSF, NZDSF, BIF, other).
Automatic arc calibration.
G.657 fiber auto-splice function.
Supports bi-directional splicing operation.
Dust-resistant, water-resistant and shock-proof.
Compact & lightweight (only 1.9 kg).
Touch-screen operation.
Upgrades software via internet.
Remote interactive maintenance via internet.
Equipped with onboard user training video.

Compact, Lightweight & Faster

2.2kg with battery for 300 splice & heat cycles
Faster 5s splice in SM Quick Mode
Reduced 9s heat shrink time

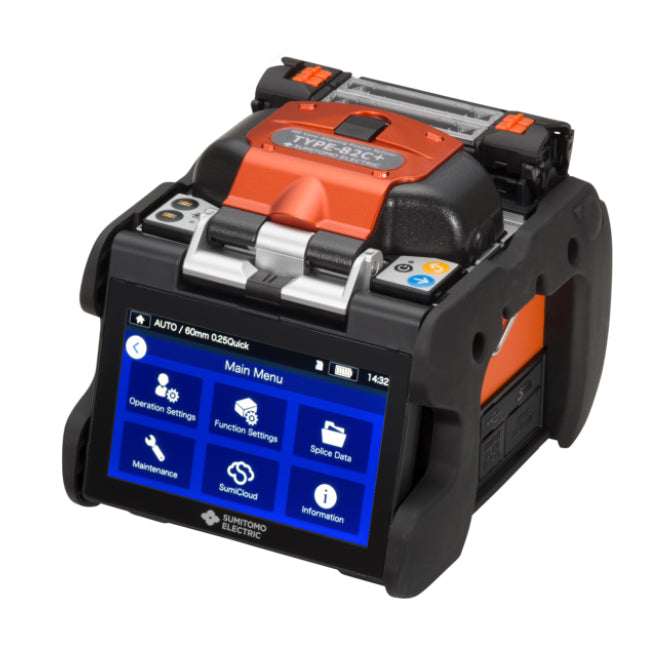

Brand-new touch panel and UI

Wide and high resolution touch panel -5" touch screen color LCD display

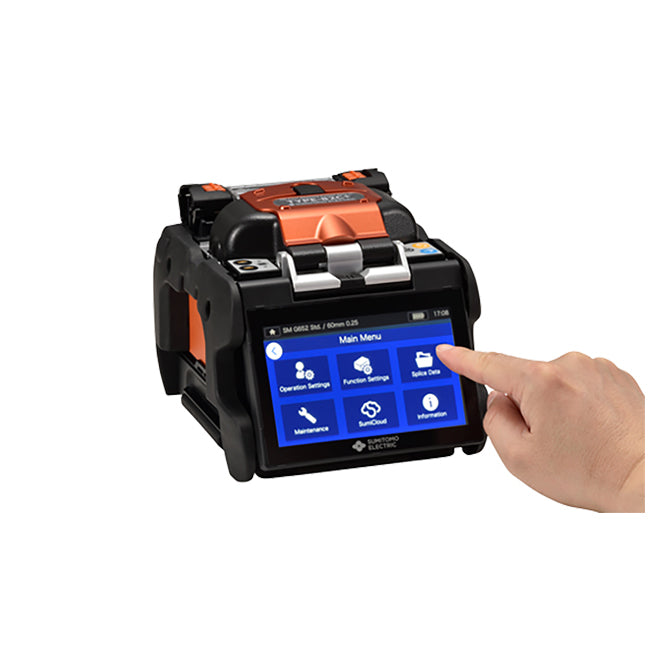

Smartphone-like easy operation

Video Tutorial

Video tutorial to help splicing job
SumiCloud? App. to watch tutorial video on smartphone

High Environmental Durability

IPx2 water resistance
IP5x dust resistance
Splice at 50¡ãC
Work at 6000m
76cm drop on 5 faces

Dual ovens with flexible clamps

Independent
Fast-heating 9s
Productive
Programmable
User selectable clamp operation

Wireless LAN
connectivity to
SumiCloud?

The world-first fusion splicer with Wireless LAN Connectivity
SumiCloud? smartphone App. to support splicing job
WLSD card brings SumiCloud? services to your splicer via our smartphone App.

TECHNICAL SPECIFICATIONS

Optical fiber requirements
Material	Silica glass
Profile types	SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657), EDF
Fiber diameter	Cladding diameter: 80 ¦Ìm ~ 150 ¦Ìm, Coating diameter: 100 ¦Ìm ~ 1,000 ¦Ìm
Applicable fiber or cable size	up to ¦Õ1,000 ¦Ìm	Drop cable (2.0x3.1 mm), Indoor cable (2.0x2.0 mm)
Cleave length	5~16 mm	10 mm
Standard performance
Splice loss (typical)	SMF: 0.01 dB, MMF: 0.01 dB, DSF: 0.034 dB, NZDSF: 0.03 dB
Splicing cycle time (typical)	5 sec. (Quick mode), 7 sec. (SMF standard mode), 7 sec. (Auto mode)
Heating cycle time (typical)	9 sec.
Splice & Heat cycles	Approx. 300
Fiber view & magnification	Two CMOS cameras observation, 380X (zoom: 760X) for X or Y single axis view, 270X for both X & Y dual axis view
Splicing programs	Max. 300
Heating programs	Max. 100
Functions
Loss estimation	Provided
Splice image capture / Splice data storage	200 images / 10,000 splice data
Proof test	1.96N (200 gf)
Universal clamps for 250¦Ìm, 900¦Ìm tight & loose buffer fiber	Provided
Reversible coating clamps	Provided
Dual automatic independent heaters	Provided (US patent 7,412,146)
User-selectable heater clamp operation	Provided
Onboard user training video	Provided
Automatic arc calibration	Automatically compensates for environmental condition changes
Arc test	Provided
Display of remaining Splice & Heat cycles	Provided (Battery mode)
Remote interactive maintenance	Provided
Terminals
DC output	DC12 V (for JR-6)
USB port	USB 2.0 (mini-B type)
Storage media	SD / SDHC memory card
Power supply
AC input	100 ¡« 240V, 50 / 60 Hz (ADC-1430)
DC input	10 ¡«15 V
Battery module	Li-ion 10.8 V, 6,400 mAh (BU-16)
Mechanical Parameters
Monitor	5.0" touch screen color LCD display
Size	128(W) x 154(D) x 130(H) mm (without anti-shock rubber)
Weight	1.9 kg (without battery), 2.2 kg (with battery)
Electrode life	3,000 arc discharges
Environment
Operating conditions	Altitude 0¡«6,000 m, Temperature -10¡«+50¡ãC, Humidity 0¡«95% (non-condensing), Wind velocity up to 15 m/s
Storage conditions	Temperature -40¡«+80¡ãC, Humidity 0¡«95% (non-condensing), Battery -20¡«+30¡ãC (long term)
Dust resistance	Equivalent to IP5x (Operates normally after 8 hours in a dust chamber (containing dust of particle size 25 ¦Ìm or below
Water resistance	Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5 min on each of 4 surfaces tilted at 15¡ã)
Shock resistance	Drop from 76cm on 5 faces (excluding top face)
