HSV-610 OTDR – 1310/1550nm 32/30dB High Dynamic Range Single-Mode Fiber Optic Tester

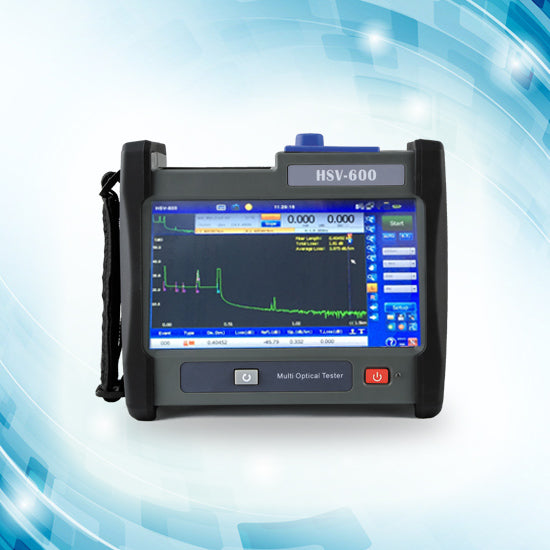

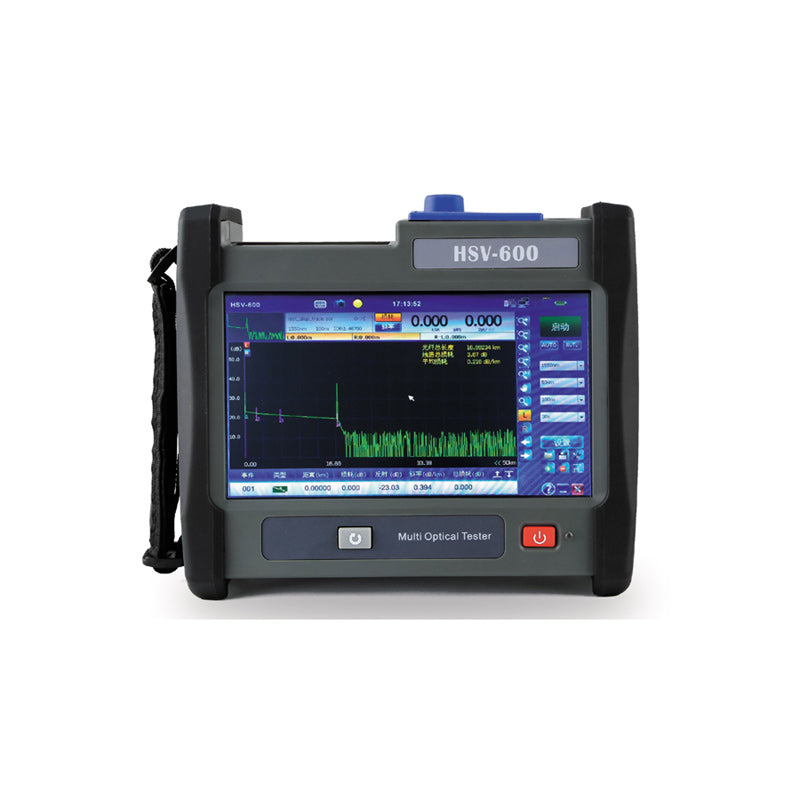

The HSV-610 OTDR is a high-performance optical time-domain reflectometer designed for professional fiber optic engineers and telecom technicians. With dual-wavelength testing at 1310nm and 1550nm and an impressive dynamic range of 32dB / 30dB, the HSV-610 is capable of testing long-haul fiber links, precisely locating faults, and characterizing splice and connector losses across demanding telecom and FTTH networks.

Whether you're commissioning a new fiber backbone, troubleshooting a live network, or verifying FTTH installation quality, the HSV-610 delivers the accuracy and reliability that professionals demand.

🔧 Key Specifications

📊 Key Features

• Dual Wavelength 1310/1550nm – Test both wavelengths in a single unit for comprehensive fiber characterization
• High Dynamic Range 32/30dB – Suitable for long-haul and high-loss fiber links up to 120km
• Automatic Event Analysis – Automatically detects and reports splices, connectors, and fiber breaks

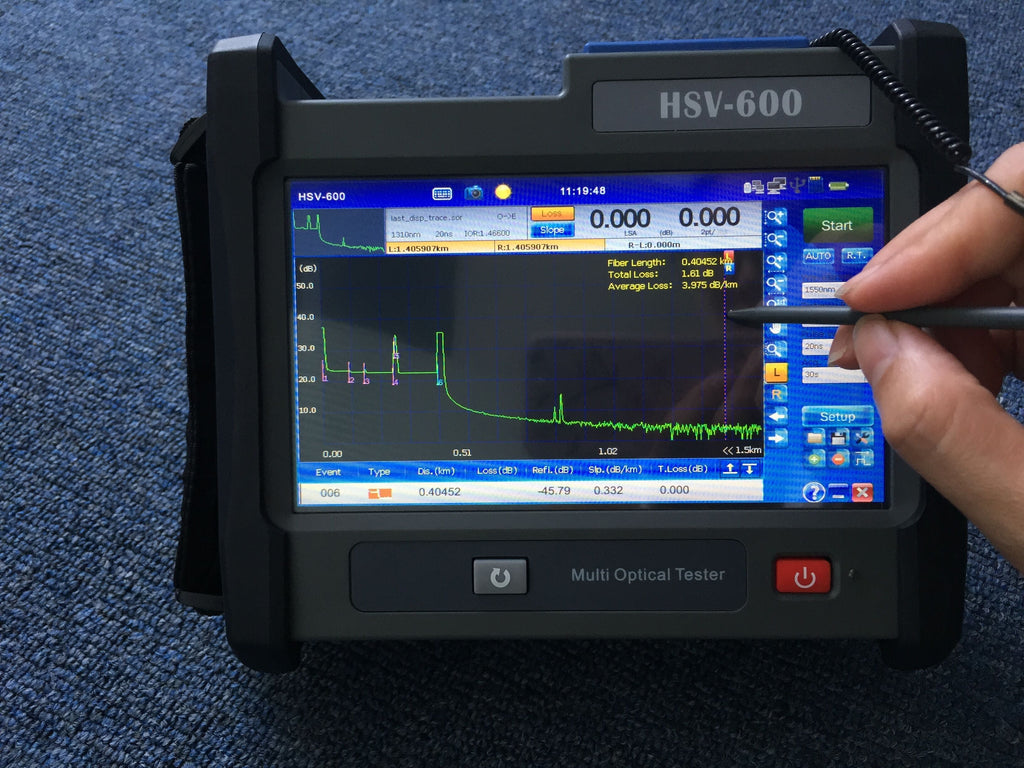

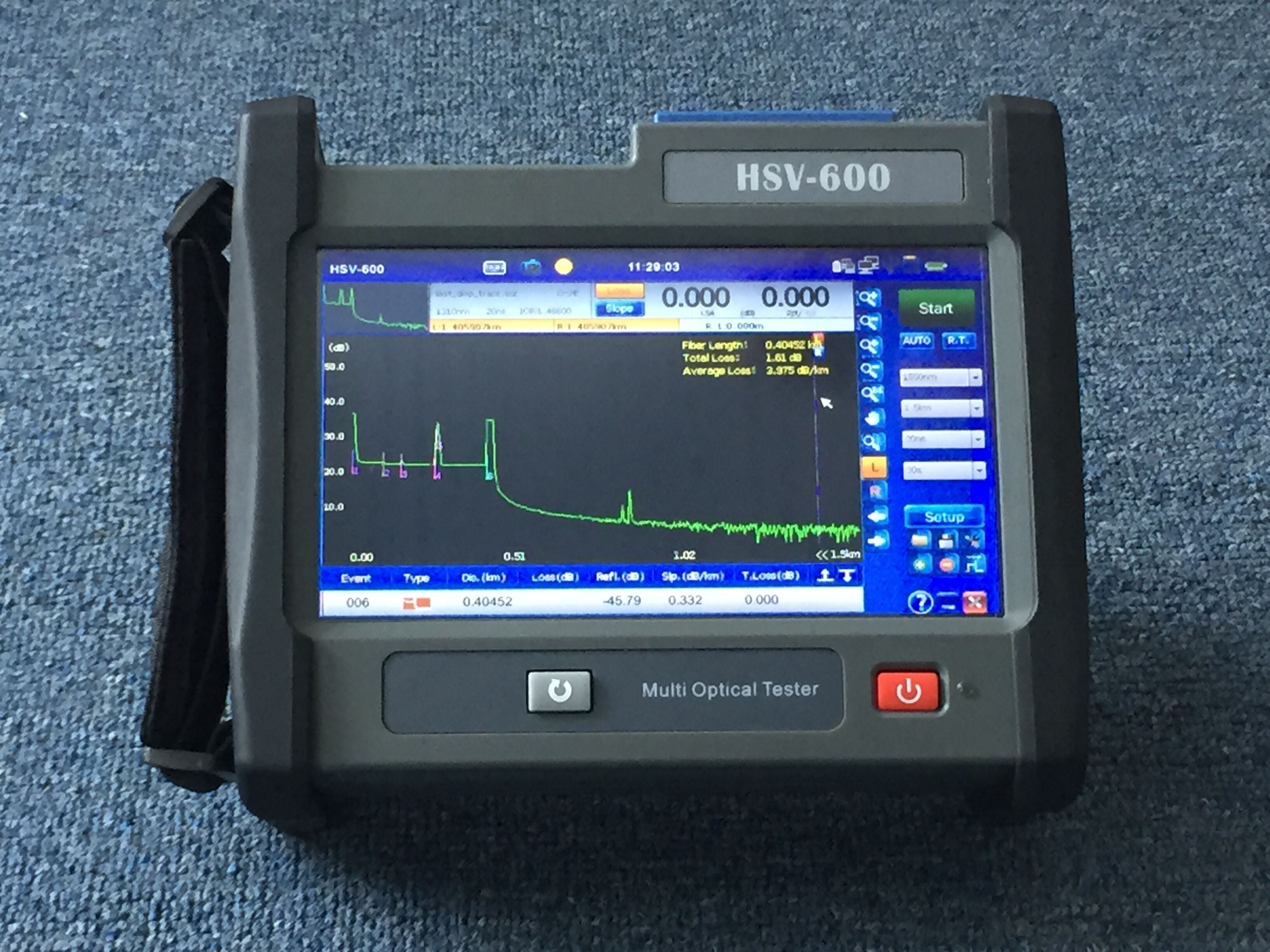

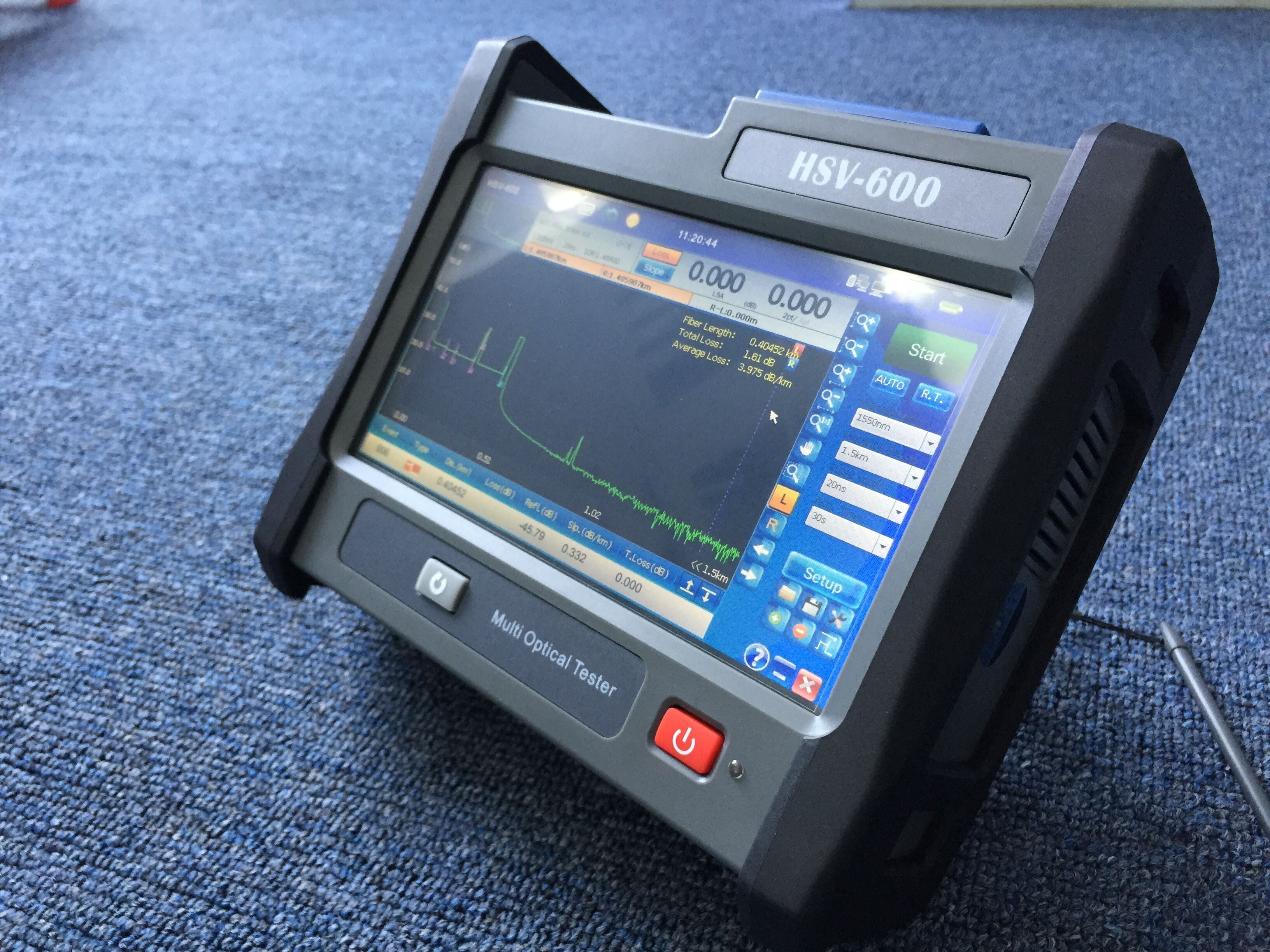

• Detailed OTDR Trace Display – Large color LCD with zoom and cursor functions for precise event analysis
• Internal Data Storage – Save and review test results in the field; export via USB
• Long Battery Life – 8+ hours of continuous operation for all-day field testing
• Rugged Field Design – Built to withstand outdoor and harsh working environments

🏗️ Applications

• Long-haul telecom fiber backbone testing and commissioning
• FTTH / FTTB fiber network installation and acceptance testing
• Fiber optic fault location and characterization
• Splice loss and connector return loss measurement
• Fiber length and end-to-end attenuation measurement
• Preventive maintenance and periodic fiber network audits

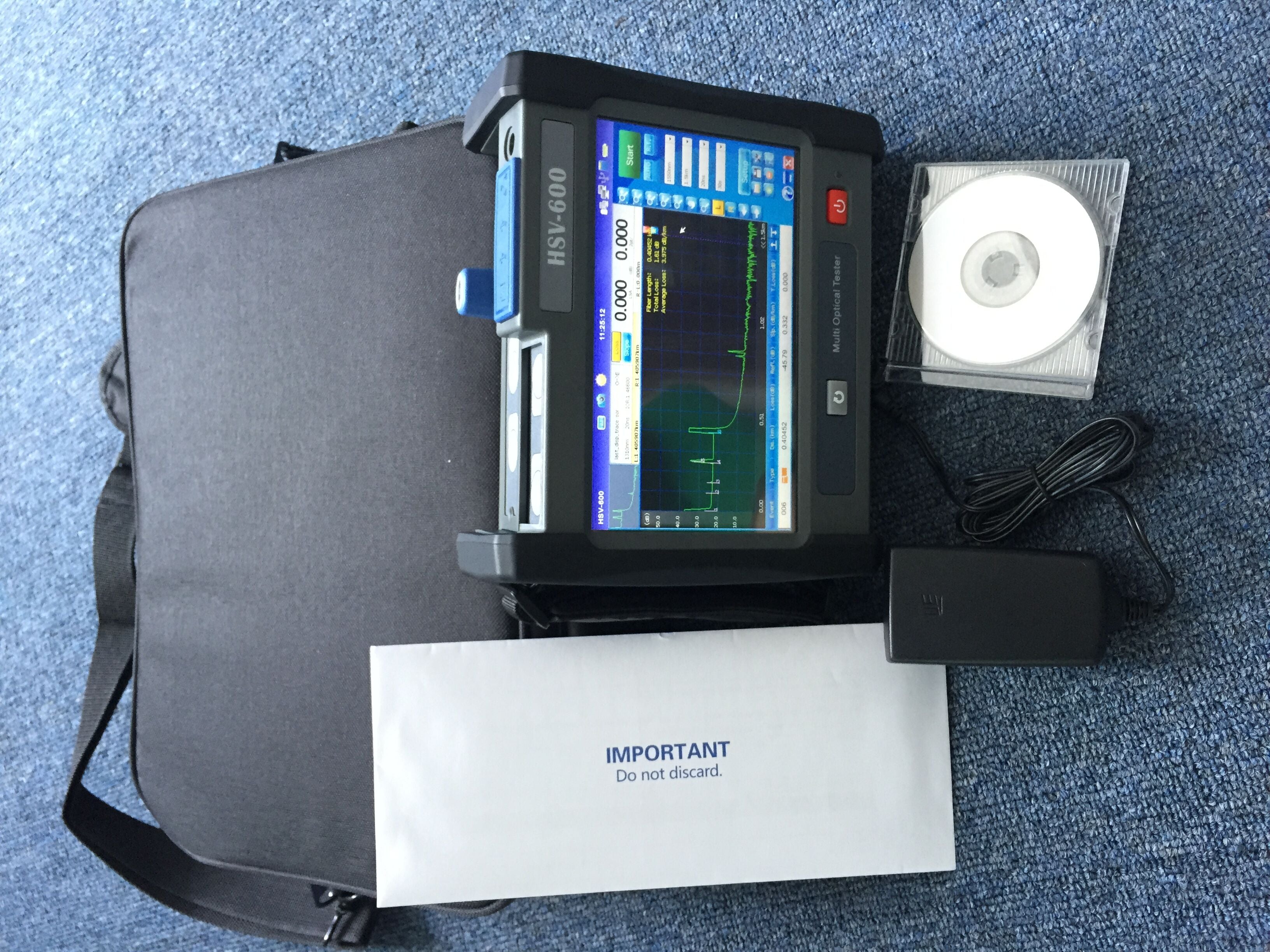

📦 Package Contents

• 1× HSV-610 OTDR Unit
• 1× SC/UPC Adapter
• 1× AC Charger
• 1× Rugged Carrying Case
• 1× User Manual

❓ Frequently Asked Questions

Q: What is the maximum fiber distance the HSV-610 can test?
A: With a 32dB dynamic range at 1310nm, the HSV-610 can typically test fiber links up to 120km, depending on fiber quality and splice/connector losses along the route.

Q: Can the HSV-610 test multimode fiber?
A: The HSV-610 is designed for single-mode (SM) fiber testing at 1310nm and 1550nm. For multimode fiber testing, please contact us for the appropriate OTDR model.

Q: Does the HSV-610 support OTDR launch cable (dead zone box)?
A: Yes. We recommend using an OTDR launch cable box (500m or 1000m) to eliminate the dead zone near the OTDR port and accurately test connectors and splices close to the instrument. We also sell these separately.

Q: Can I export OTDR traces to a PC for reporting?
A: Yes, the HSV-610 supports USB data export. Traces can be saved and transferred to a PC for analysis and report generation.
