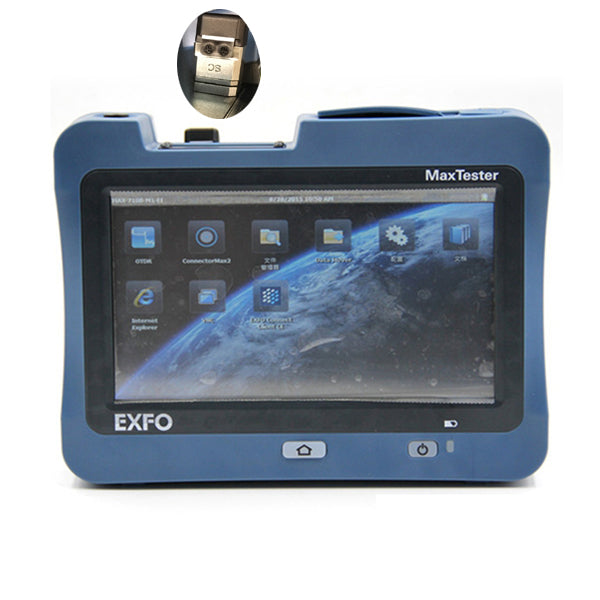

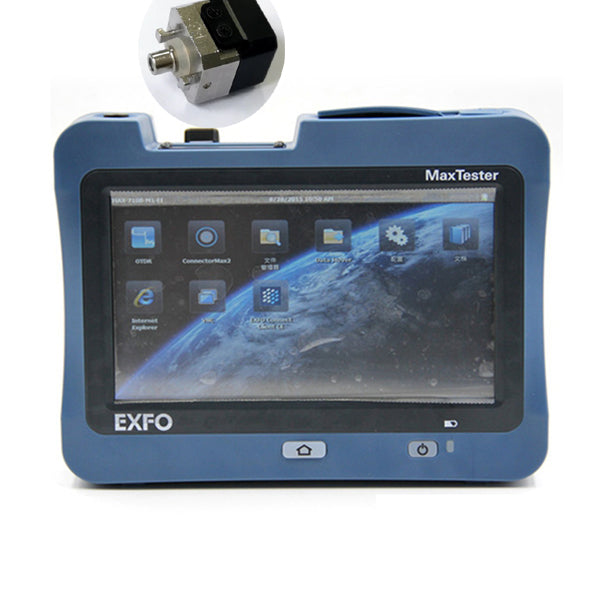

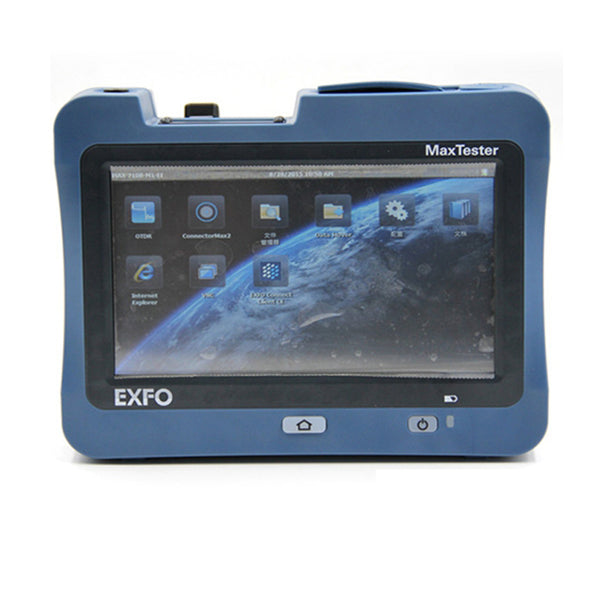

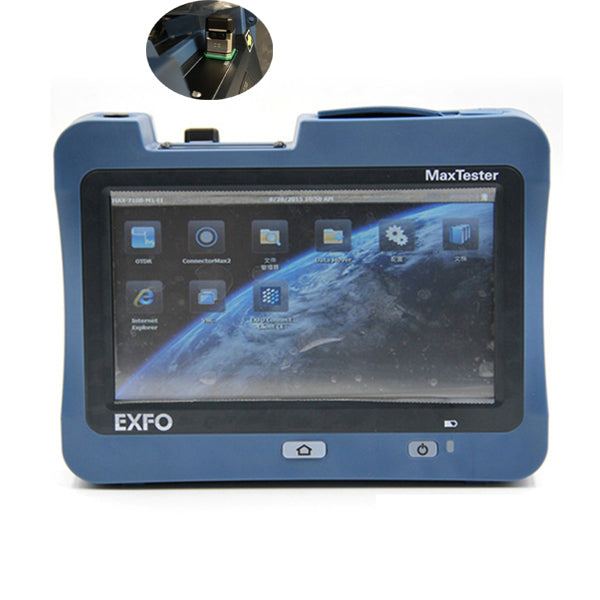

OTDR EXFO OTDR MAX-715B-M1 otdr or ioLM, MaxTester SM Fiber OTDR, 1310/1550nm, APC/SC, UPC/FC
APC/SC
$2,499.00
Sale price
$2,499.00
Regular price
$3,399.00
Skip to product information
OTDR EXFO OTDR MAX-715B-M1 otdr or ioLM, MaxTester SM Fiber OTDR, 1310/1550nm, APC/SC, UPC/FC
$2,499.00
Sale price
$2,499.00
Regular price
$3,399.00
Shipping calculated at checkout.
EXFO Max Tester Max-715B-M1-EI?(UPC),? FC or SC,???signle model fiber OTDR
EXFO Max Tester Max-715B-M1-EA?(APC),? FC or SC,??signle model fiber OTDR
OTDR Wavelength:??1310/1550nm,??30/28dB.
OTDR software:? OTDR?
?
Brand new,? with multi-language including?English, Spanish, French....
with standard packaging:??main unit, built-in battery, adaptor,?power cable, softbag, touch pen, calibration certificate.
Specifications:
|
Display |
7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT |
|
Interfaces |
Two USB 2.0 ports? |
|
Storage |
2 GB internal memory (20 000 OTDR traces, typical) |
|
Batteries |
Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 |
|
Power supply |
Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum |
|
Wavelength (nm) |
1310?¡À?30/1550?¡À?30 |
|
SM live port built-in filter |
1625 nm: highpass >1595 nm isolation >50 dB from 1270 nm to 1585 nm |
|
Dynamic range (dB) |
30/28 |
|
Event dead zone (m) |
1 |
|
Attenuation dead zone (m) |
4 |
|
PON dead zone (m) |
35 |
|
Distance range (km) |
0.1 to 160 |
|
Pulse width (ns) |
5 to 20 000 |
|
Linearity (dB/dB) |
¡À0.05 |
|
Loss threshold (dB) |
0.01 |
|
Loss resolution (dB) |
0.001 |
|
Sampling resolution (m) |
0.04 to 5 |
|
Sampling points |
Up to 256 000 |
|
Distance uncertainty (m) |
¡À(0.75 + 0.0025 % x distance + sampling resolution) |
|
Measurement time |
User-defined (maximum: 60 minutes) |
|
Reflectance accuracy (dB) |
¡À2 |
|
Typical real-time refresh (Hz) |
3 ? |
?
--------------------------------------------------------------------------------------------------
We keep lots in stock, If you need more, please contact us directly!?
Condition:? - Brand New .
Warranty Service £º? ?- 12 months .
Package includes:? - standard package with accessories,? in carton.?
