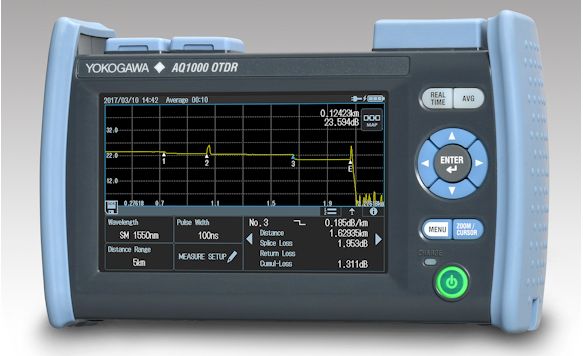

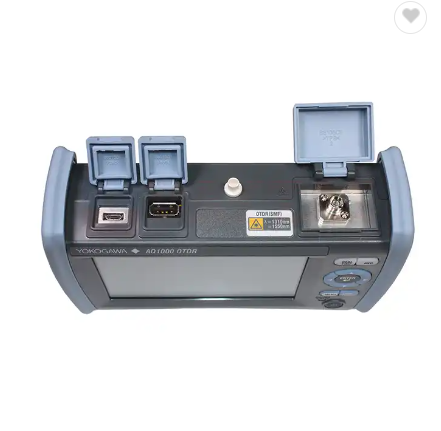

YOKOGAWA OTDR AQ1000 1310/1550nm 32/30dB AQ1000 Optical Time Domain Reflectometer

YOKOGAWA OTDR AQ1000 1310/1550nm 32/30dB sm otdr

This Yogoga AQ1000 otdr is specifically designed to increase the productivity of field personnel working on the installation and deployment of optical access networks such as Fiber To The Home (FTTH). Although it is positioned as an entry-level model, it still retains Yokogawa¡¯s established standards of quality/reliability and features characteristics which are usually present in higher-level models, such as a high-quality capacitive multi-touch touchscreen and wireless connectivity.

The AQ1000 satisfies test and measurement needs in analyzing access optical networks.
Wavelengths: 1310 / 1550 nm
Dynamic ranges: 32 / 30 dB
Size: 185 mm (W) ¡Á 116 mm (H) ¡Á 56 mm (D) ( 7.3" (W) ¡Á 4.6" (H) ¡Á 2.2" (D) )
Weight: 660 g ( 1.46 Lbs )

Built-in PC and LS, and VLS
Power checker (PC)
Measures and displays optical power of incominglight for testing network performance.
Light source (LS)
Outputs a stable, continuouswave/modulated light for measuring end-to-end attenuationaccurately when paired with an optical power sensor.
Visible light source (VLS)
Outputs red light for checking continuity of launch numbers or short number trunks. Breaks and bending in number can be identified visually.
(/VLS option is required.)
Data handling features
Direct data saving
Simply pressing ¡°Direct save¡± icon, measured data can be saved in SOR or PDF format according to users¡¯ prior selection.
PDF reporting
Built-in post-processing software for generating OTDR reports in PDF format. Flexible configuration of report template to meet users¡¯ report requirements.
Data Transfer
Data files or PDF report files that are stored in the AQ1000 can easily be transferred to a PC through a USB connection
NOTICE:
Import Customs Tax etc destination fee: Should be paid by the buyer.
